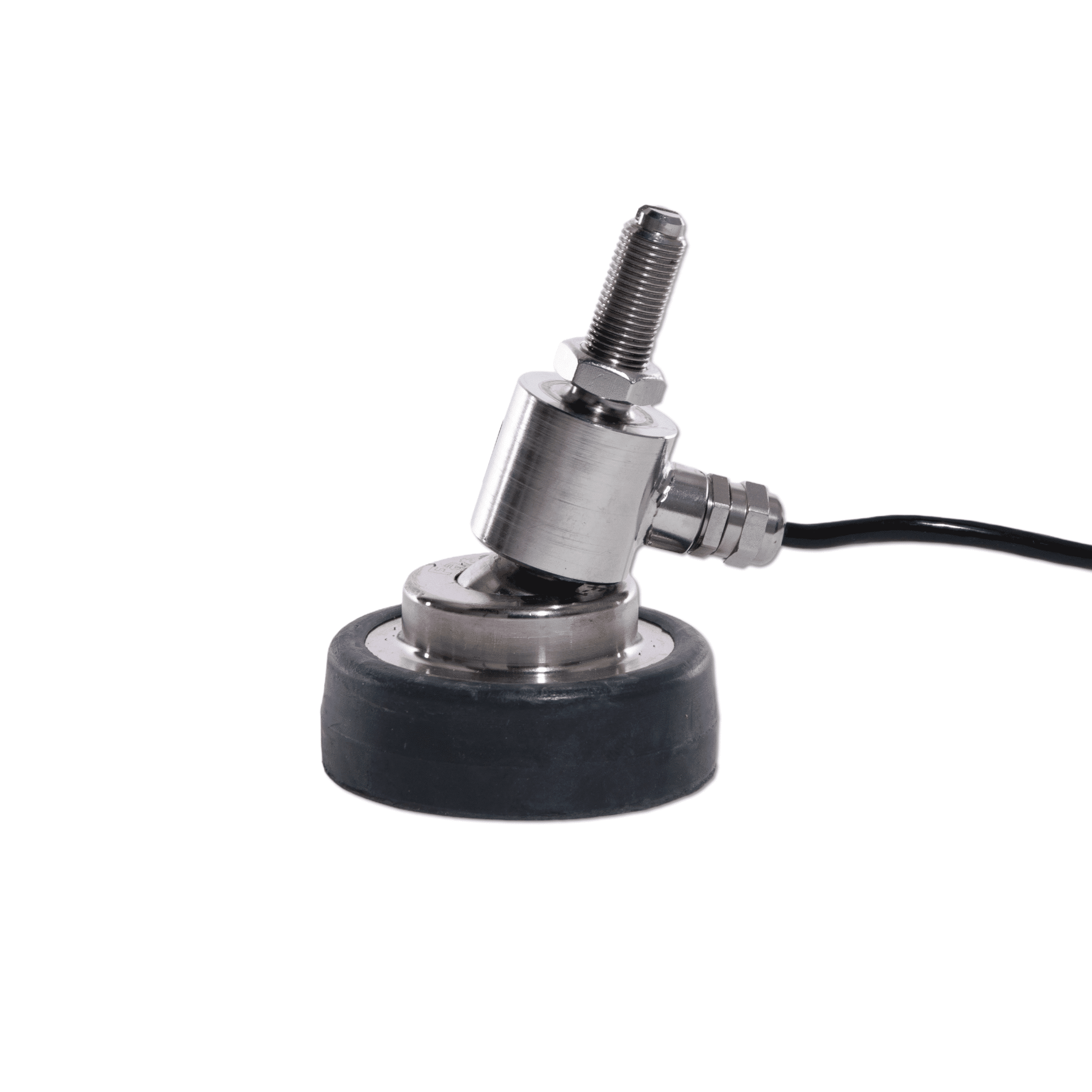

ANYLOAD 106MS FatFoot Load Cell
The ANYLOAD 106MS FatFoot™ Load Cell offers an innovative, patented design that combines load cell technology with scale leveling feet for efficient and space-saving weighing. With a center-pivoted, self-checking design and 50% rated safe lifting protection, it provides a reliable and cost-effective solution for applications like hopper weighing, floor scales, and tank weighing. The stainless steel construction and fixed six-meter cable ensure durability and easy integration, making it a user-friendly choice that requires no professional training. This load cell also meets leading international safety standards.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $404.00 |
10-24 | 10 - 24 | 5% $383.80 |
25-49 | 25 - 49 | 8% $371.68 |
50-99 | 50 - 99 | 11% $359.56 |
100+ | 100 + | 15% $343.40 |
ANYLOAD 106MS Features
The ANYLOAD 106MS FatFoot™ Load Cell is a cutting-edge weighing solution that integrates a patented load cell design with scale leveling feet, offering a time-saving and elegant solution for a wide range of applications. Engineered to be center-pivoted and self-checking, it features a 50% rated safe lifting protection, making it a leader in load cell innovation. The 106MS is constructed from durable stainless steel and includes a fixed six-meter cable for easy integration, making it a user-friendly, cost-effective choice that requires no professional training. Ideal for hopper weighing, floor scales, and tank weighing, this load cell meets leading international safety standards, ensuring reliable and safe operation in various industrial environments. For similar functionality in alloy steel, consider the 106MH-F model.
- Available Rated Capacities: 1Klb, 2.5Klb, 5Klb, 10Klb
- Material: 304 Stainless steel enclosure; 2Cr13 stainless element and foot base
- 0.5in 20 UNF threads for 1Klb, 2.5Klb sizes
- 0.75in threads for 5Klb, 10Klb sizes
- Center-pivoted and self-checking
- 50% rated safe lifting protection
- Full-Scale Output: 2.0mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS-Certified
- User-friendly, professional training not required
- The cable (6m) is fixed to load the cell
Available Options: 1Klb, 2.5Klb, 5Klb & 10Klb.
Please contact us with any product-related questions.
Specifications
ANYLOAD 106MS FatFoot Load Cell Specifications
Rated Capacity | 1Klb, 2.5Klb, 5Klb, 10Klb |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | Cap. ≤2t: <±0.050%; Cap. >2t: <±0.2% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.050% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 380Ω ± 20Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
Service Temperature Range | -30°C to 70°C / -20°F to 160°F |
Storage Temperature Range | -50°C to 85°C / -58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP67 |
Technical Documents
ANYLOAD 106MS Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
106MS- (0.5-1)t | |
106MS-2t | |
106MS-5t | |
106MS-10t |
