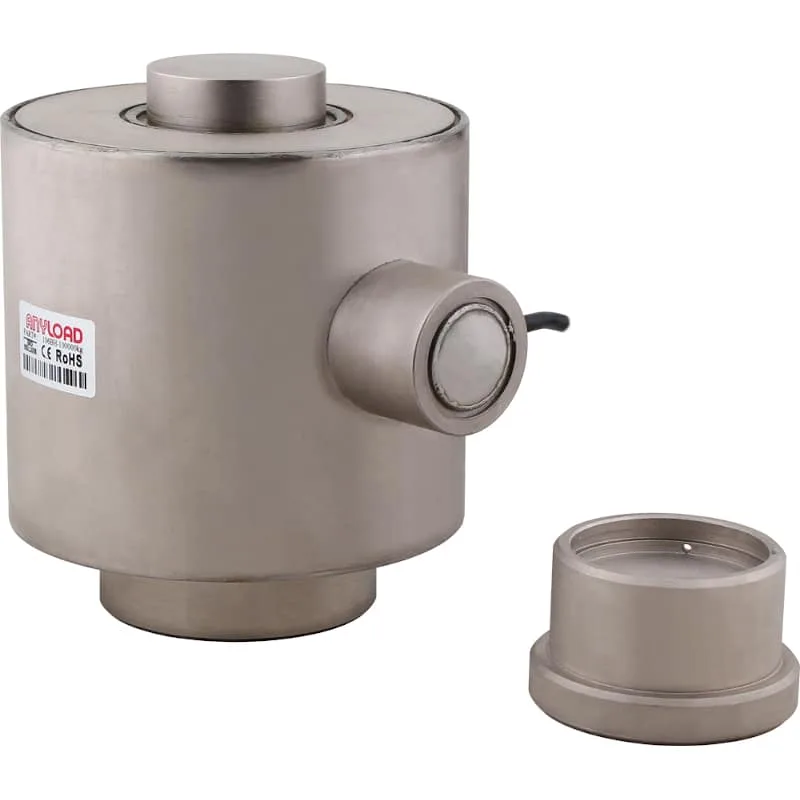

ANYLOAD 106BH Alloy Steel Canister Load Cell
The ANYLOAD 106BH Alloy Steel Canister Load Cell is for very high-capacity compression weighing. Its IP67 intrusion protection makes it ideal for harsh environments. An optional alloy steel mounting cup is available for more precise weighing. This mounting cup is also available without load cell purchase.
Other capacities and configurations are available for this load cell – please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $130.00 |
10-24 | 10 - 24 | 5% $123.50 |
25-49 | 25 - 49 | 8% $119.60 |
50-99 | 50 - 99 | 11% $115.70 |
100+ | 100 + | 15% $110.50 |
SKU: 106BH
Category: Compression or Canister
ANYLOAD 106BH Features
- Material: Alloy Steel
- Available Rated Capacities: 100t, 200t, 500t (contact us for availability)
- Full-Scale Output: 2mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS-certified
Available Options: 106BH-mounting-cup only (note these are sized to each capacity), 100T with or without a mounting cup, 200T with or without a mounting cup, 500T with or without a mounting cup.
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 106BH Load Cell Specifications
Rated Capacity | 100t, 200t, 500t |
Full-Scale Output | 2mV/V ± 0.20% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.050% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.030% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 770Ω ± 30Ω |
Output Resistance | 700Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0023% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP67 |
Technical Documents
ANYLOAD 106BH Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
106BH-100t | |
106BH-200t | |
106BH-500t |
