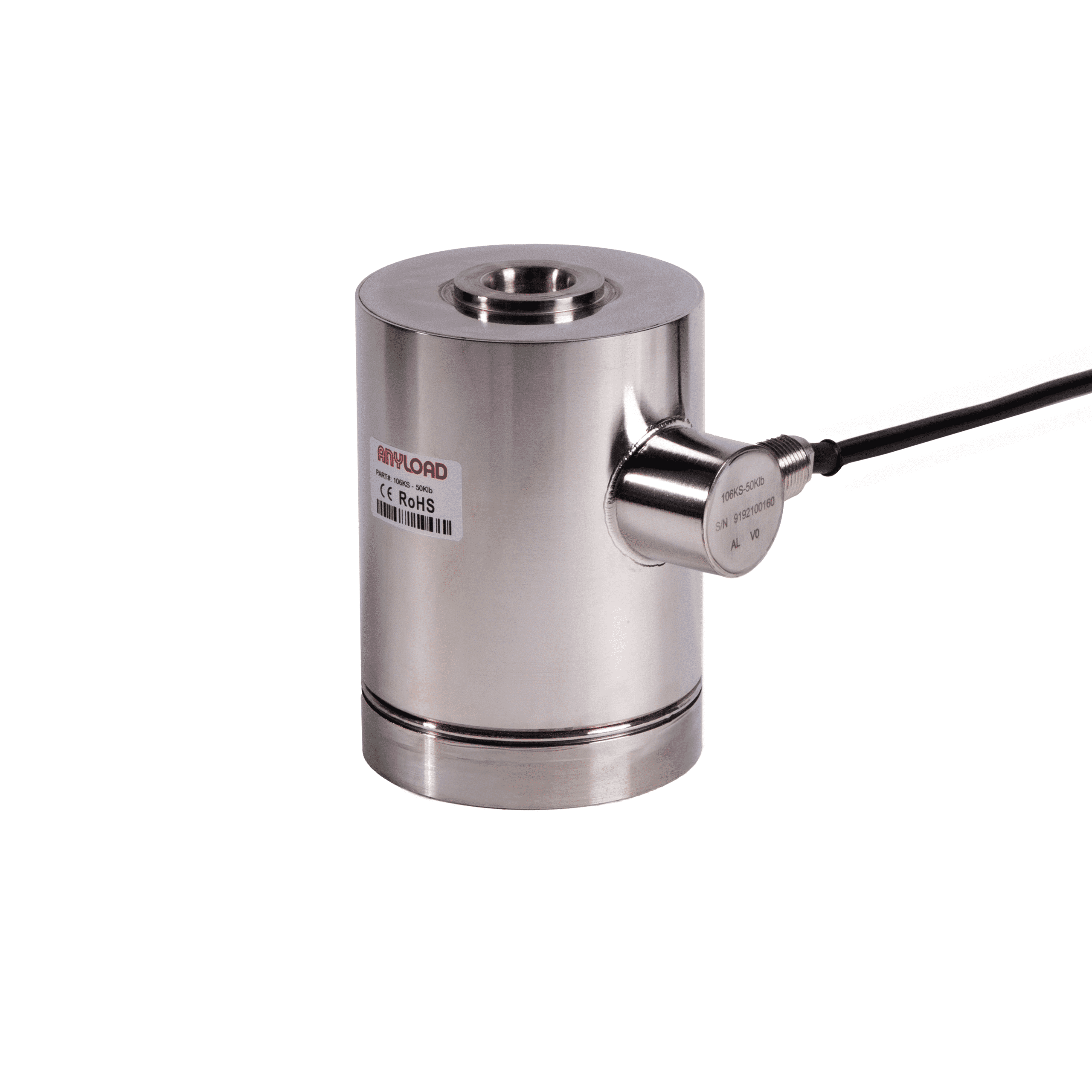

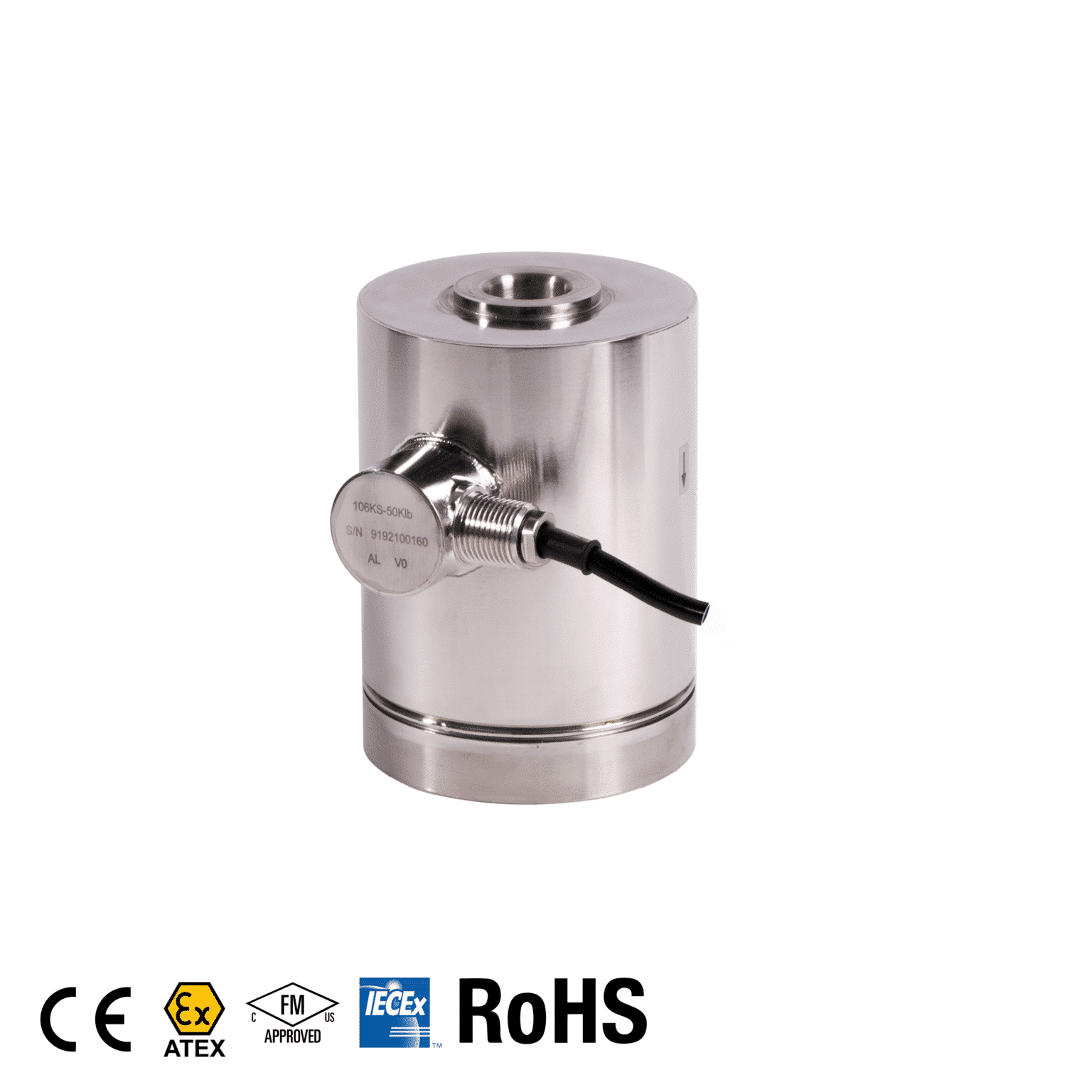

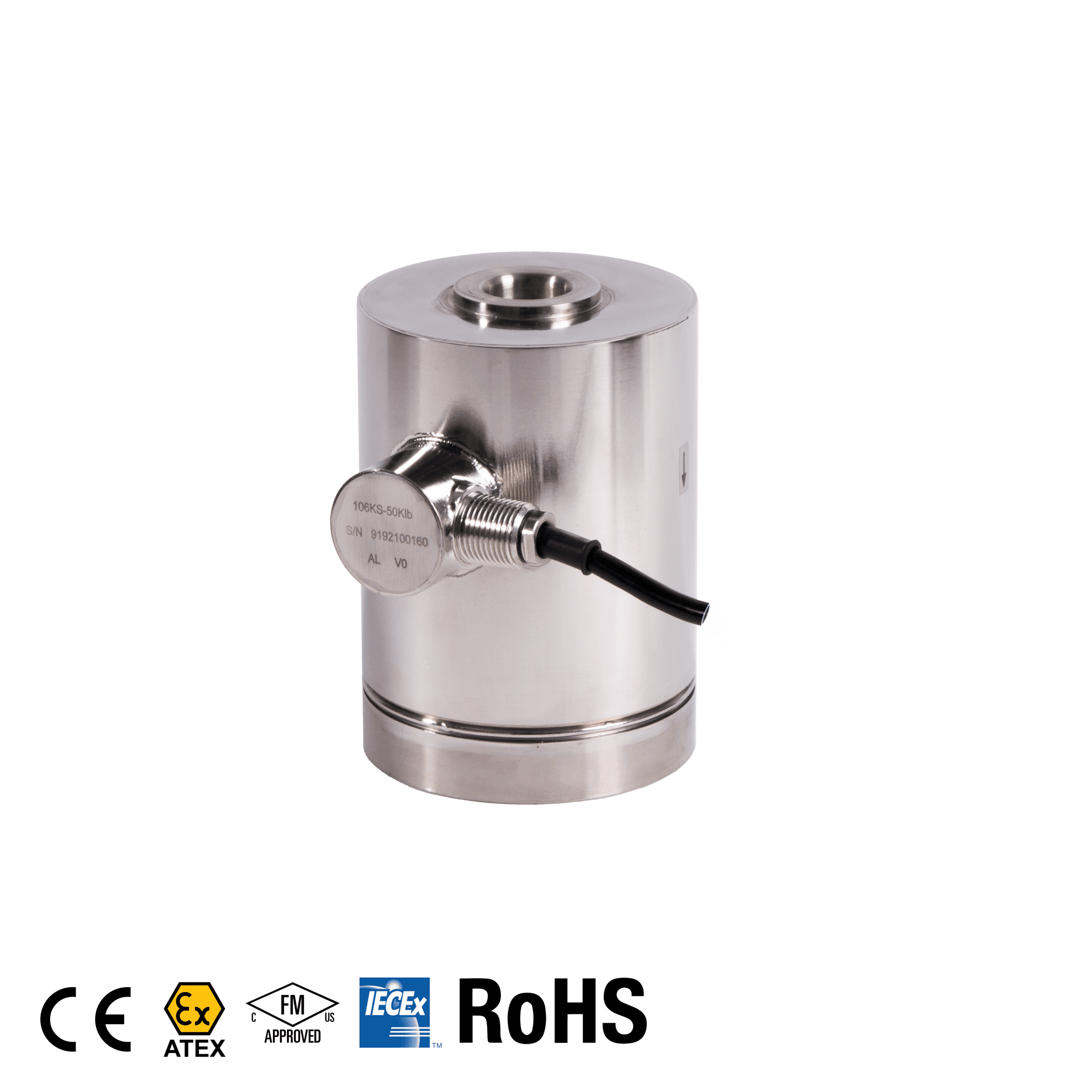

ANYLOAD 106KS Stainless Steel Canister Load Cell
The ANYLOAD 106KS canister load cell is 17-4PH stainless steel and is available in 50Klb and 100Klb capacities. Its IP68 ingress protection-rated weld seal enclosure makes it ideal for harsh environments. This product adheres to leading international safety requirements.
Other capacities and configurations may be available—please contact us to learn more. Compatible accessories: F106KS-1-100Klb, F106KS-1-50Klb, MB106KS-100Klb, MB106KS-50Klb, MC106KS-100Klb, MC106KS-50Klb.
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $2,016.00 |
| 10-24 | 10 - 24 | 5% $1,915.20 |
| 25-49 | 25 - 49 | 8% $1,854.72 |
| 50-99 | 50 - 99 | 11% $1,794.24 |
| 100+ | 100 + | 15% $1,713.60 |
ANYLOAD 106KS Features
- Material: Stainless Steel
- Rated Capacities: 50Klb, 100Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS-certified
- ATEX, FM, IECEx available upon request
Available Options: 50Klb & 100Klb.
Mounting hardware components (mounting cap, mounting base, and pin) are sold as options.
Please contact us with any product-related questions.
Compatible Accessories
- F106KS-1-100Klb Loading Pin for 106KS-100Klb Canister Load Cell
- F106KS-1-50Klb Loading Pin for 106KS-50Klb Canister Load Cell
- MB106KS-100Klb Mounting Base for 106KS-100Klb Canister Load Cell
- MB106KS-50Klb Mounting Base for 106KS-50Klb Canister Load Cell
- MC106KS-100Klb Mounting Cap for 106KS-100Klb Canister Load Cell
- MC106KS-50Klb Mounting Cap for 106KS-50Klb Canister Load Cell
Specifications
ANYLOAD 106KS Load Cell Specifications
| Rated Capacity | 50Klb, 100Klb |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.010% |
| Hysteresis Error | < ± 0.060% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 700Ω ± 20Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0014% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0030% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
| Element Material | 17-4PH Stainless Steel |
| Cable Length | 15m |
Technical Documents
| ANYLOAD 106KS Load Cell Datasheet | |
| CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
| 106KS-50Klb | |
| 106KS-100Klb |
Interchangeable Cross Reference
ANYLOAD 106KS Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Coti Global | CG-CC22 |
| Mettler Toledo | B10883600A |
| Mettler Toledo | B10887700A |
| Totalcomp | T752 |
