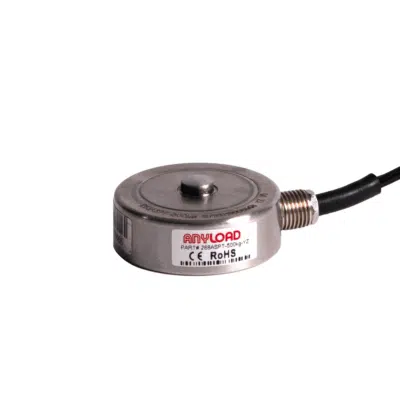

ANYLOAD 266ASPT Stainless Steel Compression Load Cell
The ANYLOAD 266ASPT Compression Load Cell is a low-profile, high-accuracy weighing component for harsh environments. Its welded seal, 2Cr13 stainless steel construction is rated IP68 for maximum intrusion protection. This product is available in 100kg, 250kg, 500kg, 1t, 5t, 10t, and 15t capacities.
Other capacities and configurations may be available – please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $422.00 |
10-24 | 10 - 24 | 5% $400.90 |
25-49 | 25 - 49 | 8% $388.24 |
50-99 | 50 - 99 | 11% $375.58 |
100+ | 100 + | 15% $358.70 |
SKU: 266ASPT
Category: Compression or Canister
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 266ASPT Features
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t, 25t, 50t
- Full-Scale Output: 2.0mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- Mounting hardware not included
Available options:100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t & 15t.
Please contact us with any product-related questions.
Specifications
ANYLOAD 266ASPT Load Cell Specifications
Rated Capacity | 100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t, 25t, 50t |
Full-Scale Output | 2mV/V ± 1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.050% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.070% |
Creep in 30 minutes | < ± 0.050% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0046% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0160% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 266ASPT Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 266ASPT Interchangeable Cross Reference
Manufacturer | Equivalent Model |
PT Global | LPX |
