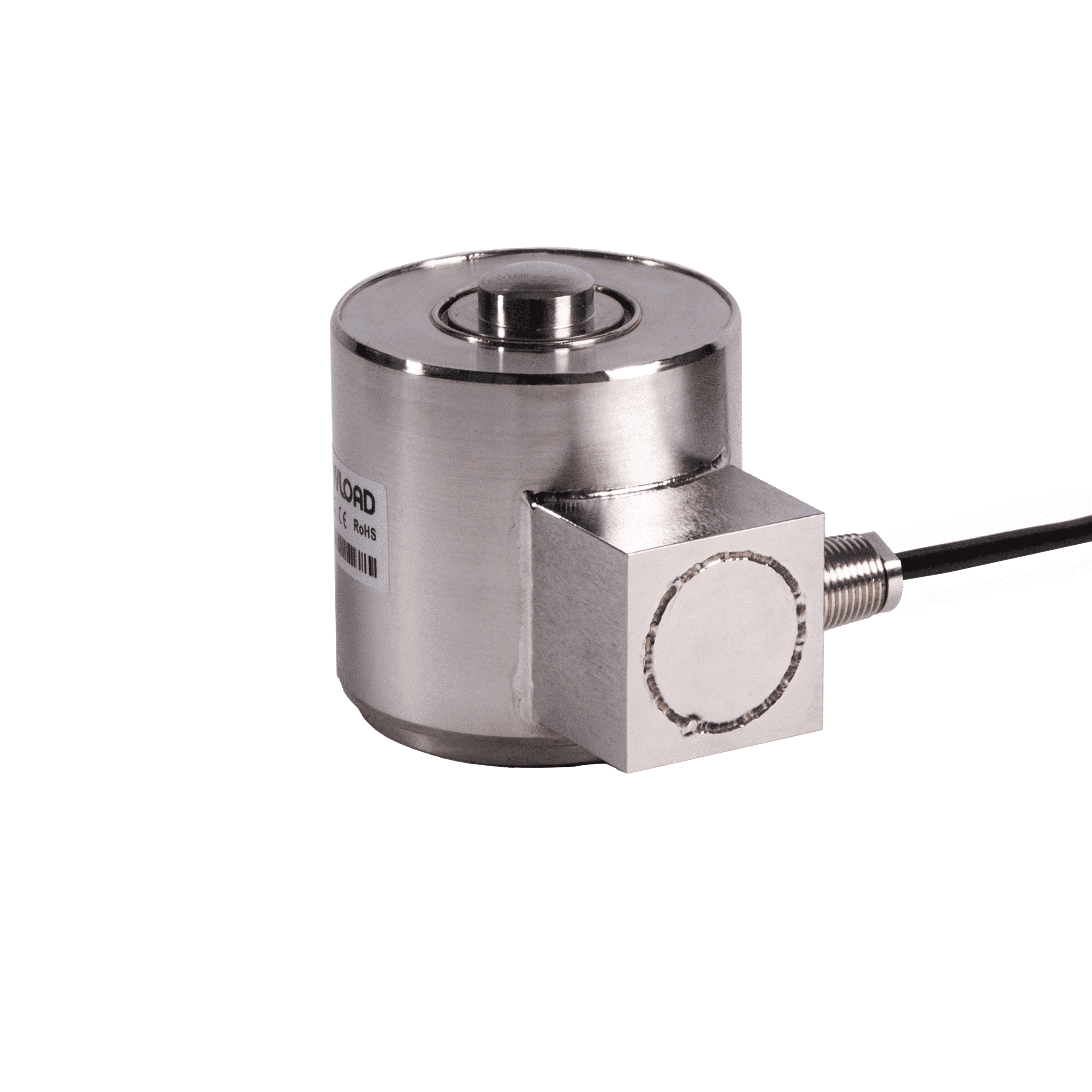

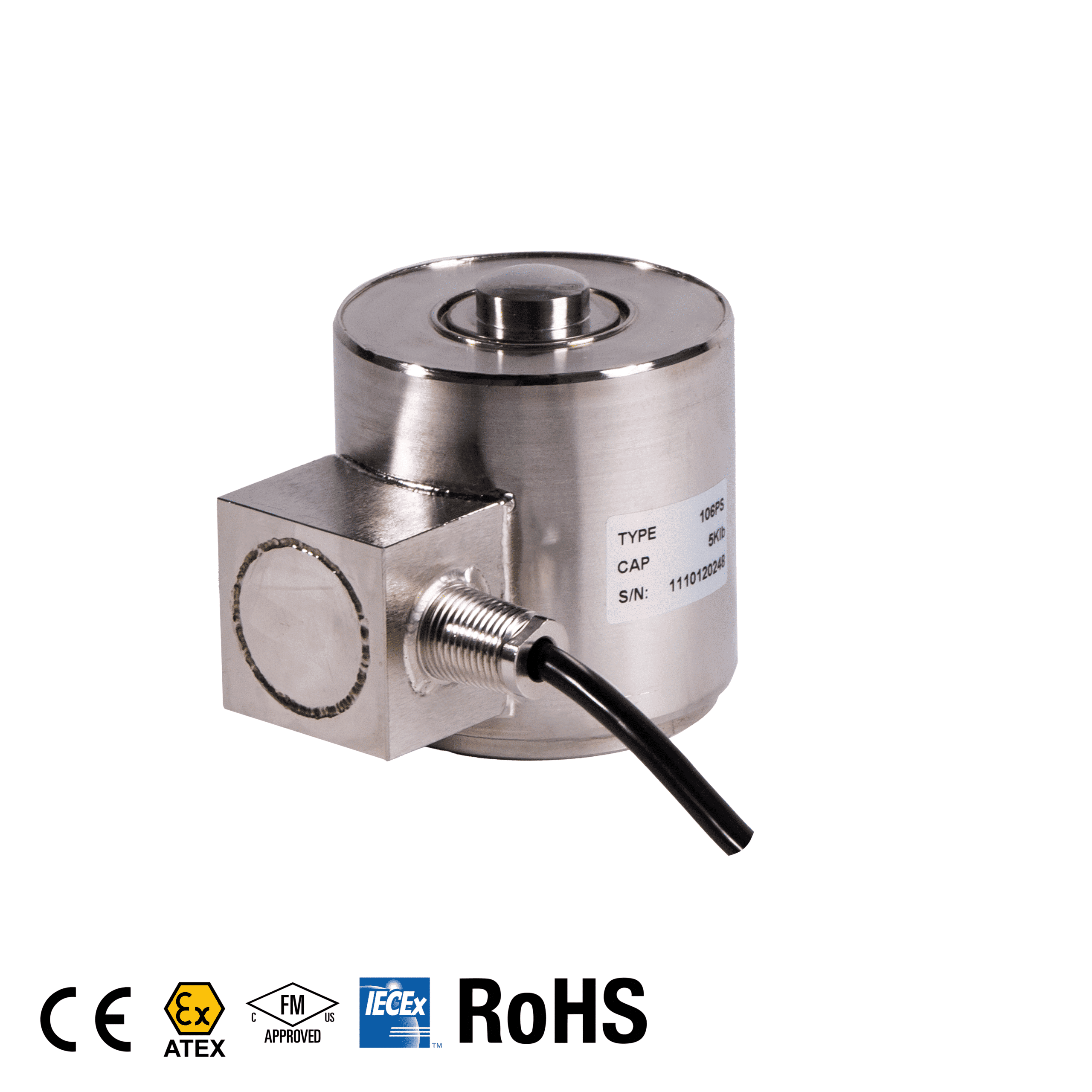

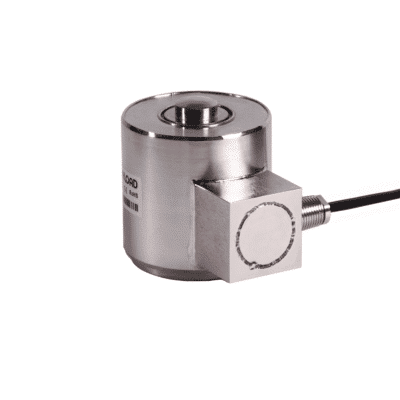

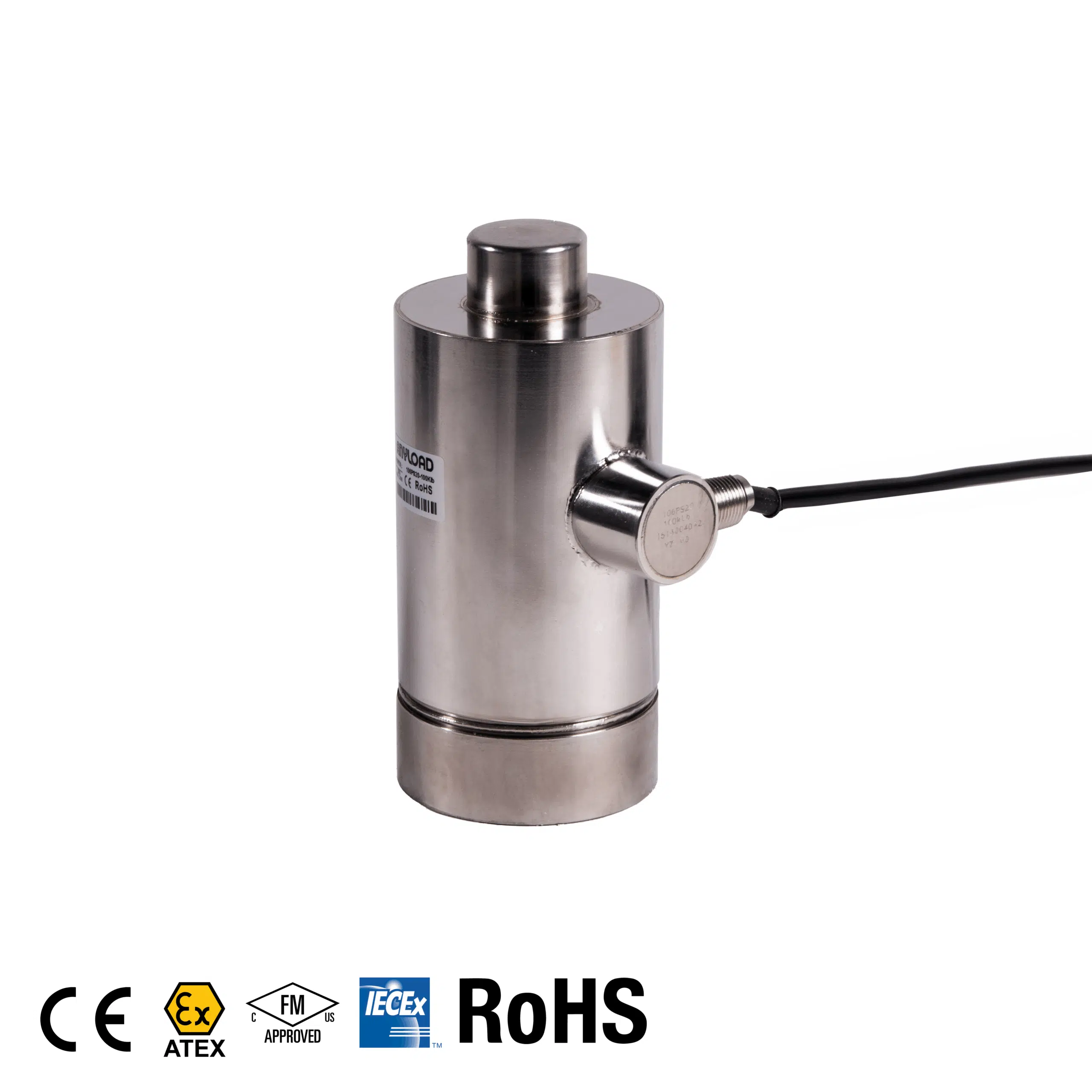

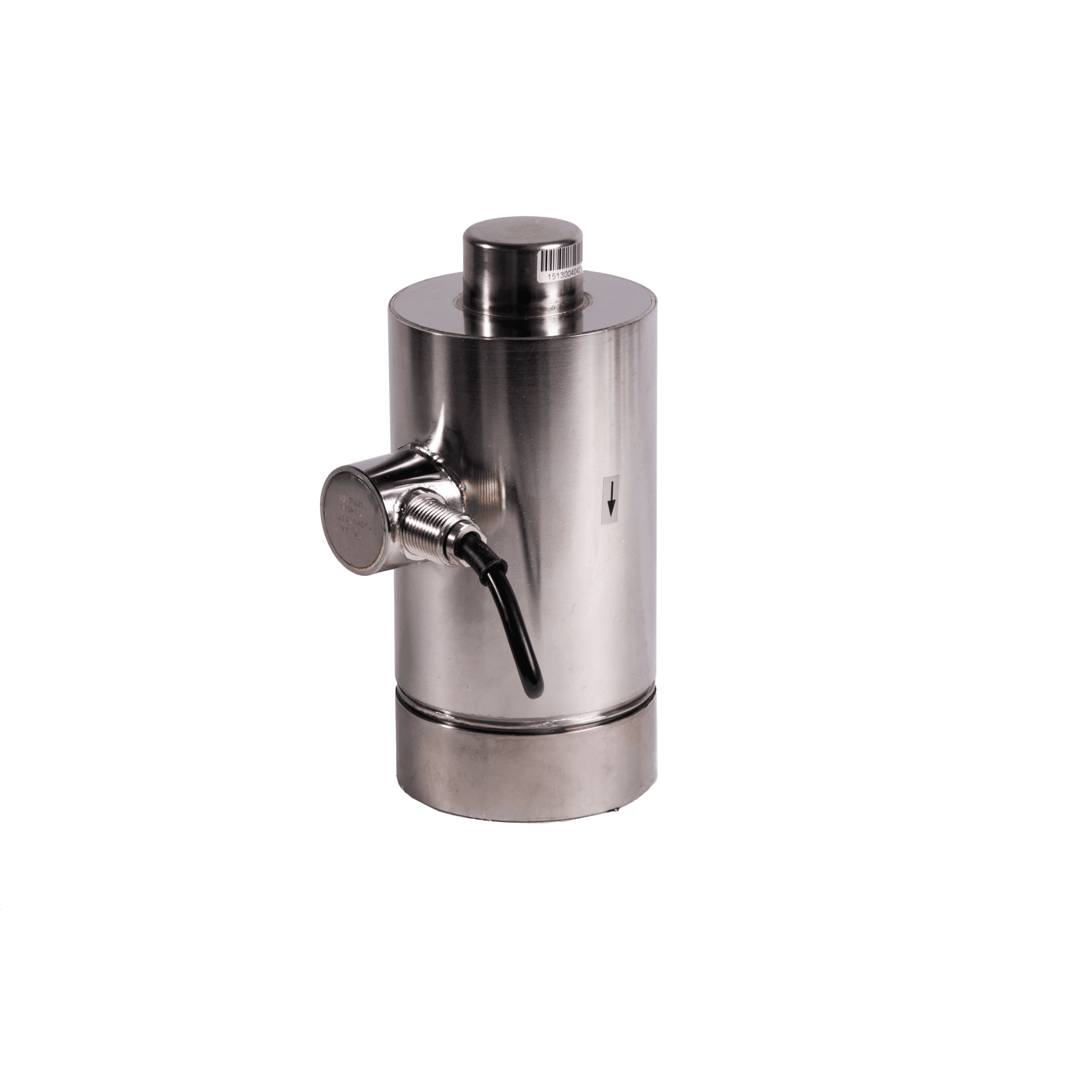

ANYLOAD 106PS Stainless Steel Canister Load Cell
The ANYLOAD 106PS is a high-accuracy, IP68-rated canister load cell designed for medium- and high-capacity compression weighing applications. Built with 17-4PH stainless steel and featuring a welded-sealed construction, it delivers reliable performance even in extreme conditions. Ideal for use in silo, tank, and hopper weighing, as well as railroad scales and weighbridges, the 106PS meets leading international safety standards and is available in a 50Klb capacity.
Limited stock – please contact us before ordering.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,204.00 |
| 10 - 24 | $1,143.80 |
| 25 - 49 | $1,107.68 |
| 50 - 99 | $1,071.56 |
| 100 + | $1,023.40 |
ANYLOAD 106PS Key Features
The ANYLOAD 106PS is a high-accuracy canister load cell designed for medium- and high-capacity compression weighing applications. Constructed from 17-4PH stainless steel with a welded seal, it offers an IP68 rating, ensuring reliable performance even in extreme and harsh industrial environments. This load cell is commonly used in silo, tank, and hopper weighing, as well as in railroad scales and weighbridges. Available in a 50Klb capacity, the 106PS is built to meet leading international safety standards, making it a dependable choice for demanding applications. Its robust design and high accuracy make it an excellent solution for critical weighing needs.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 50Klb, 100Klb
- Full-Scale Output: 3mV/V ± 0.1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS-certified
Available Option: 50Klb
Please contact us with any product-related questions.
Specifications
ANYLOAD 106PS Load Cell Specifications
| Rated Capacity | 50Klb, 100Klb |
| Full-Scale Output | 3mV/V ± 0.1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 3.5Ω |
| Output Resistance | 350Ω ± 3.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0014% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0030% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
ANYLOAD 106PS Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106PS Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Coti Global | CG-93 |
| Vishay Revere Transducers | 93 |
