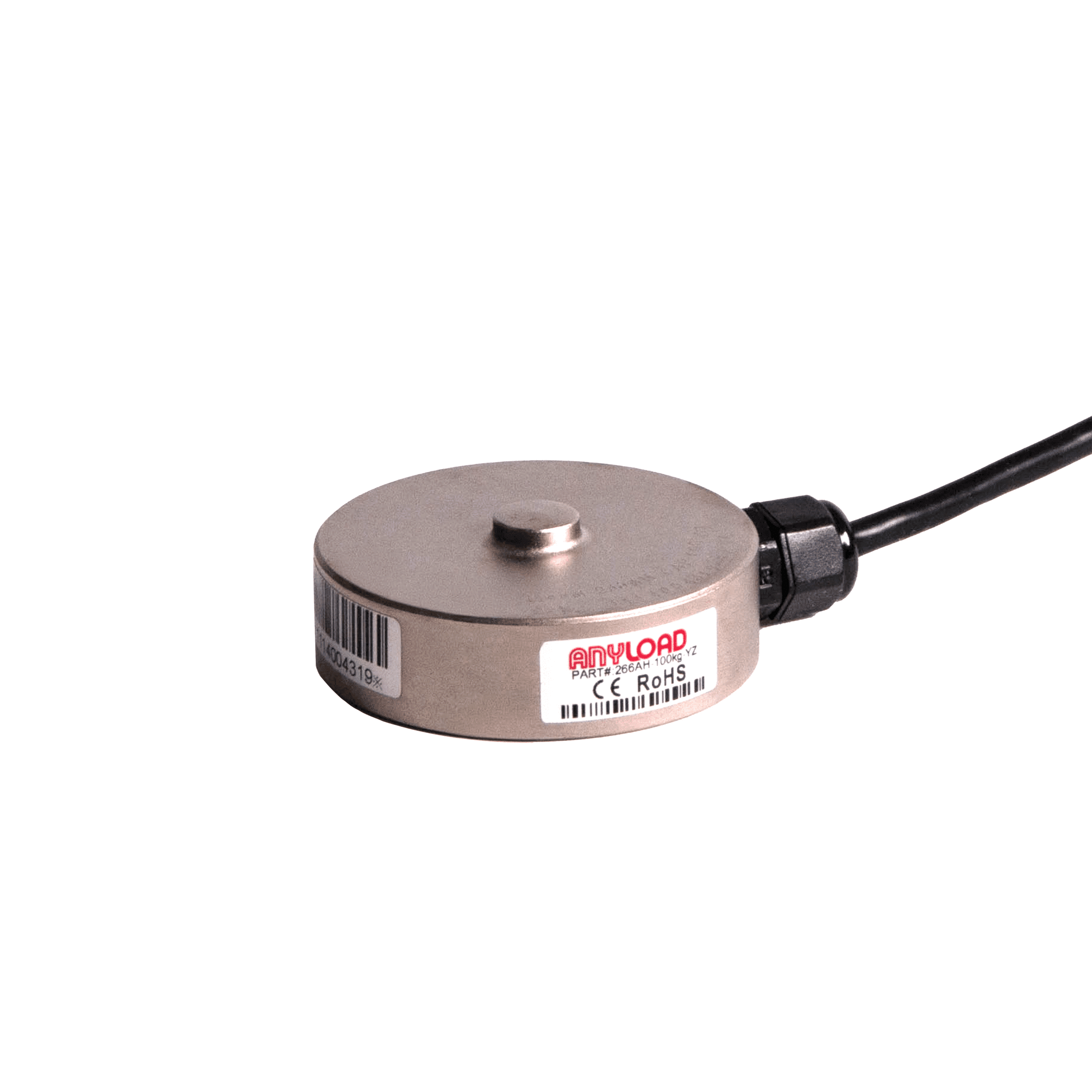

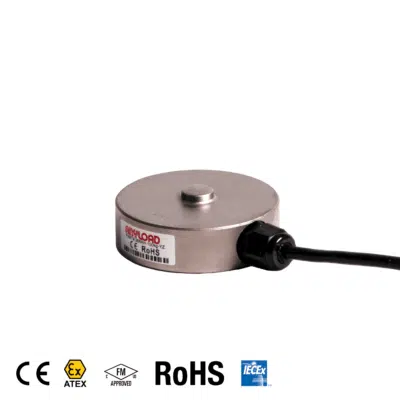

ANYLOAD 266AH Alloy Steel Compression Load Cell



The ANYLOAD 266AH Compression Load Cell enclosure is nickel-plated weld-sealed alloy steel, and protection-rated IP67. This versatile load cell is available in capacities from 100kg to 30t. For smaller loads, see the ANYLOAD 266AA.

Quantity Price
1 - 9 $290.00
10 - 24 $275.50
25 - 49 $266.80
50 - 99 $258.10
100 + $246.50
Tacuna Systems Price Match Guarantee
SKU: 266AH Category: Brand:

The ANYLOAD 266AH Compression Load Cell is a nickel-plated alloy-steel sensor engineered for durable, repeatable weighing across a wide capacity range. Welded-sealed to IP67, it holds up in demanding industrial settings and is widely used for tank, hopper, and platform-scale weighing. Available in capacities from 100 kg to 30 t, with 150% safe overload and 300% breaking overload for dependable protection against shock loads.

ANYLOAD 266AH Features

  • Material: Nickel-Plated Alloy Steel
  • Rated Capacities: 100kg, 200kg, 300kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t
  • Full-Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS-certified
  • ATEX, FM, IECEx available upon request

Available Options: 100kg, 200kg, 300kg, 500kg, 1t, 2t, 5t, 10t, 20t, and 30t.

Please contact us with any product-related questions.

Specifications

ANYLOAD 266AH Load Cell Specifications

266AH Model 100kg – 2t 5t – 30t
Rated Capacity 100kg, 200kg, 300kg, 500kg, 1t, 2t 5t, 10t, 20t, 30t
Full-Scale Output 2mV/V ± 1% 2mV/V ± 1%
Zero Balance ± 0.04mV/V ± 0.04mV/V
Non-linearity Cap. ≤2t: <±0.2%; Cap. ≥3t: <±0.05% < ± 0.05%
Repeatability < ± 0.03% < ± 0.03%
Hysteresis Error Cap. ≤2t: <±0.1%; Cap. ≥3t: <±0.05% < ± 0.05%
Creep in 30 minutes Cap. ≤2t: <±0.1%; Cap. ≥3t: <±0.05% < ± 0.05%
Input Resistance 400Ω ± 20Ω 770Ω ± 30Ω
Output Resistance 350Ω ± 3Ω 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum) 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC) > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0023% of Cn/k < ±0.0023% of Cn/k
Temperature Effect on Zero Balance < ± 0.0120% of Cn/k < ± 0.0120% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale 150% of full scale
Breaking Overload 300% of full scale 300% of full scale
Seal Type Welded Seal Welded Seal
IP Rating IP67 IP67
Element Material Alloy Steel, Nickel Plated
Cable Length Cap. ≤2t: 3m; Cap. ≥3t: 10m
