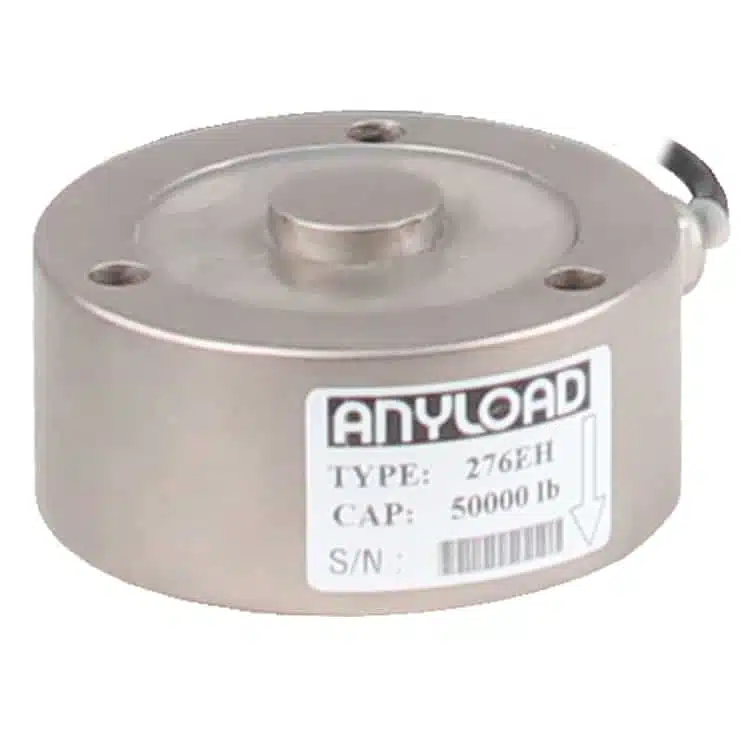

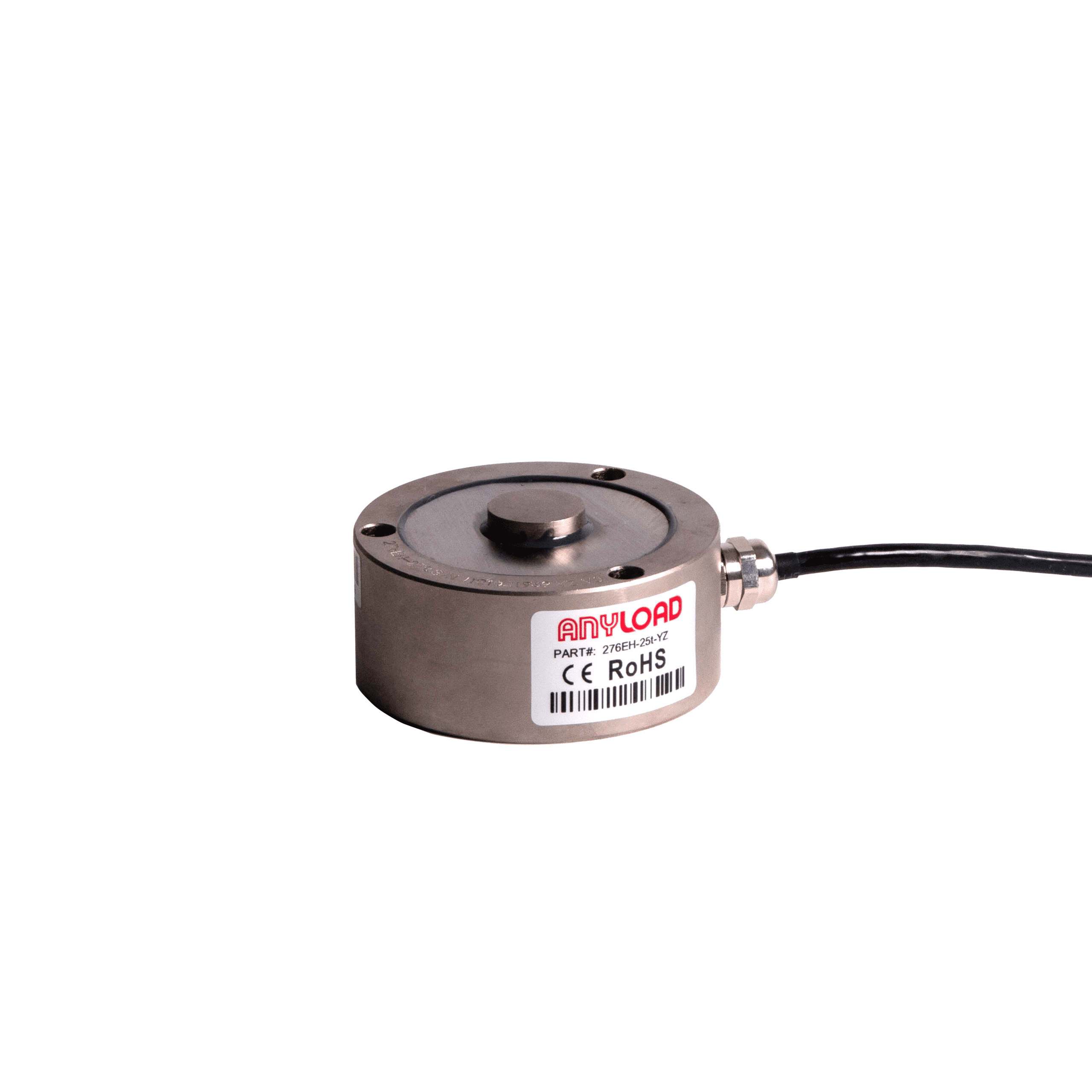

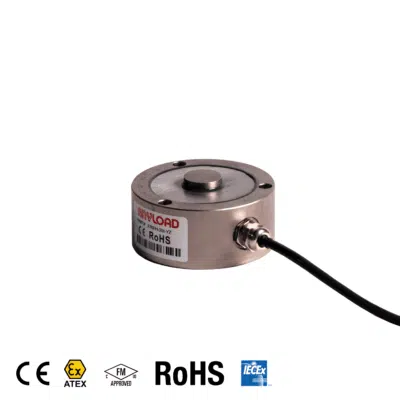

ANYLOAD 276EH Alloy Steel Compression Load Cell
The ANYLOAD 276EH compression load cell features an IP67 alloy steel enclosure with patented design. The 276EH is ideal for high compression weighing. Mounting cap is included.
Please contact us with any product questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $588.00 |
10-24 | 10 - 24 | 5% $558.60 |
25-49 | 25 - 49 | 8% $540.96 |
50-99 | 50 - 99 | 11% $523.32 |
100+ | 100 + | 15% $499.80 |
SKU: 276EH
Category: Compression or Canister
ANYLOAD 276EH Key Features
- Alloy steel material
- Rated Capacities: 5t, 10t, 25t, 50t, 100t
- Full Scale Output: 2.5mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- Mounting hardware included
Available options: 276EH-5000kg, 276EH-10000kg, 276EH-25000kg, 276EH-50000kg, 276EH-100000kg
Installation Module: ANYLOAD 276EHM1
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 276EH Load Cell Specifications
Rated Capacity | 5t, 10t, 25t, 50t, 100t |
Full Scale Output | 2.5mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.32% |
Repeatability | < ± 0.050% |
Hysteresis Error | < ± 0.32% |
Creep in 30 minutes | < ± 0.10% |
Input Resistance | 400Ω ± 20Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0046% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0160% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Technical Documents
ANYLOAD 276EH Load Cell Datasheet |
