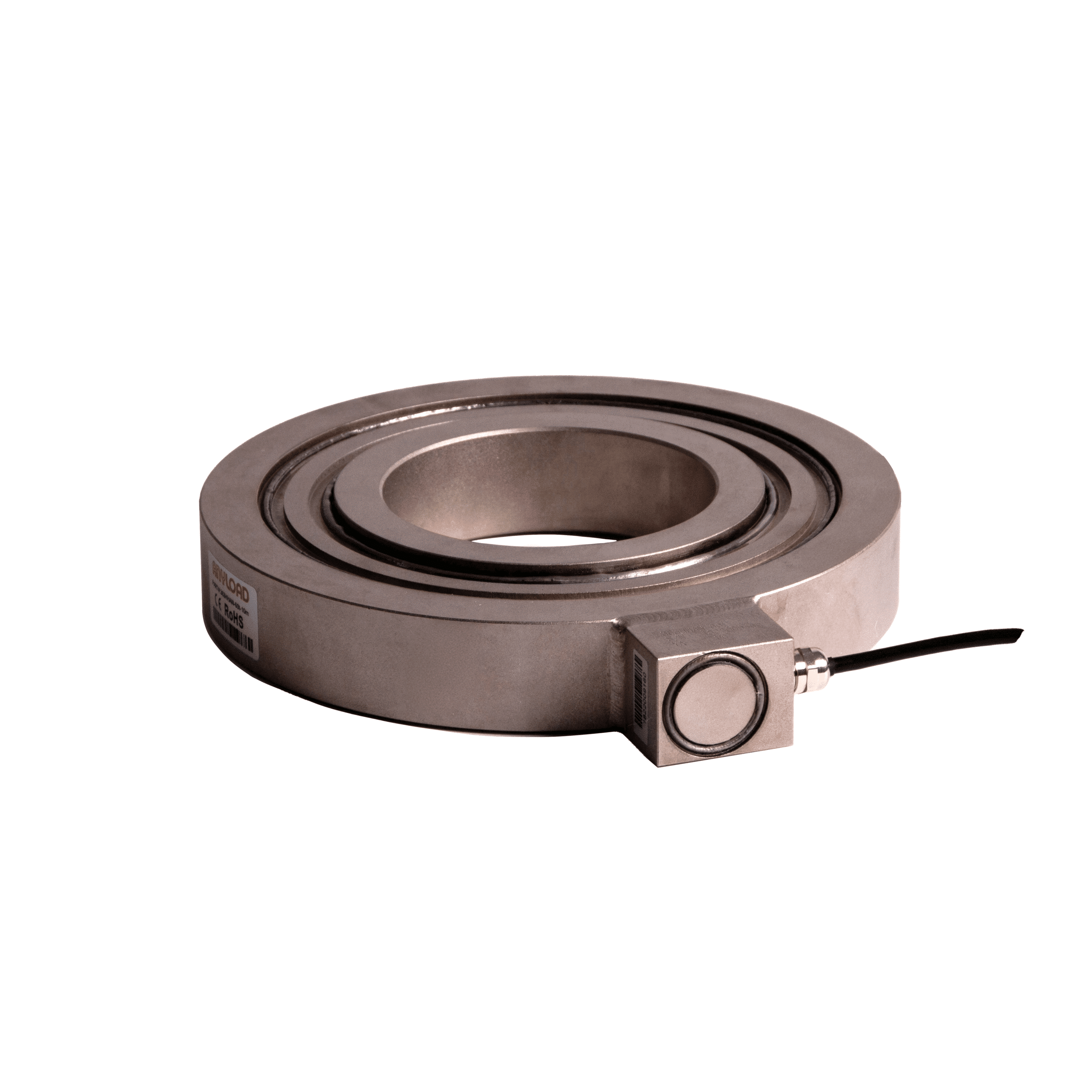

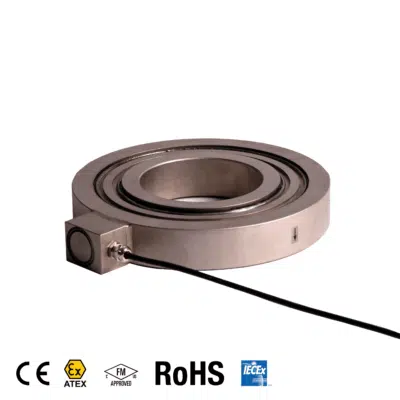

ANYLOAD 363HHAN Alloy Steel Compression Load Cell
The ANYLOAD 363HHAN Compression Load Cell is a custom-designed, large-scale weighing device for landslide mitigation in civil engineering and construction. It integrates easily into bolt structures for applications like ground anchors and retaining walls, constantly measuring compression forces on a holding plate. Made from heavy-duty, nickel-plated alloy steel, it is IP67 water-resistant and performs reliably in challenging conditions. Available in a 60t capacity, it ensures precise and dependable force monitoring in geotechnical applications.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $1,466.00 |
10-24 | 10 - 24 | 5% $1,392.70 |
25-49 | 25 - 49 | 8% $1,348.72 |
50-99 | 50 - 99 | 11% $1,304.74 |
100+ | 100 + | 15% $1,246.10 |
ANYLOAD 363HHAN Features
The ANYLOAD 363HHAN Compression Load Cell is a custom-designed, large-scale weighing device ideal for landslide mitigation in the civil engineering and construction sectors. It integrates seamlessly into bolt structures, making it perfect for applications such as ground anchors, anchored retaining walls, soil nailing, and helical tiebacks. This load cell provides reliable monitoring by continuously measuring the compression forces exerted on a holding plate. Constructed from heavy-duty, nickel-plated alloy steel, the 363HHAN is both cost-effective and IP67 water-resistant, ensuring dependable performance even in challenging conditions. Available in a 60t capacity, it offers precise force measurement, making it a trusted solution for various geotechnical applications. Its robust design and high capacity make it an essential tool for effective landslide mitigation and structural integrity monitoring.
- Material: Alloy Steel with nickel-plated element
- Rated Capacity: 60t
- Full-Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS-Certified
Available Options: 60t
Please contact us with any product-related questions.
Specifications
ANYLOAD 363HHAN Load Cell Specifications
Rated Capacity | 60t |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.80% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.90% |
Creep in 30 minutes | < ± 0.10% |
Input Resistance | 770Ω ± 30Ω |
Output Resistance | 700Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP67 |
Technical Documents
ANYLOAD 363HHAN Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
