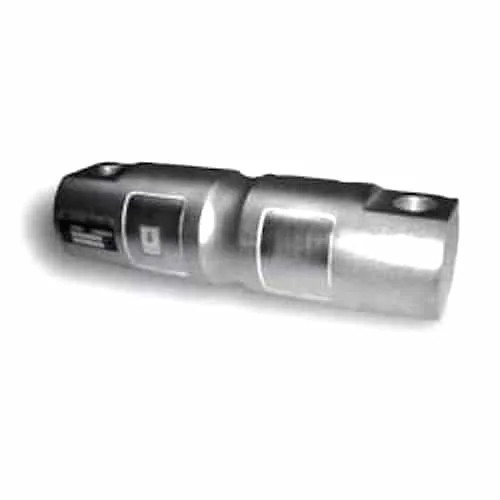

AmCells T103 Series Double-Ended Shear Beam
The AmCells T103 Series Double-Ended Shear Beam load cells feature tool steel construction for affordable reliability. They are available in capacities from 5Klb to 200Klb, all with 30 foot cabling.
Quantities vary for the 150Klb and 200Klb capacities. Please contact us before ordering.
| Quantity | Price |
|---|---|
| 1 - 9 | $780.00 |
| 10 - 24 | $741.00 |
| 25 - 49 | $717.60 |
| 50 - 99 | $694.20 |
| 100 + | $663.00 |
AmCells T103 Series Features
- Tool steel material
- Through holes on the ends of each load cell for mounting
- Meets OIML and HB44 Class III Standards
- Cable Length: 30 ft.
Available options: T103-5000lb, T103-10000lb, T103-20000lb, T103-50000lb, T103-60000lb, T103-65000lb, T103-100000lb, T103-150000lb, T103-200000lb
Please contact us with any product-related questions.
Specifications
AmCells T103 Load Cell Specifications
| Rated Output (R.O.) | 3.0 MV/V ± 1% |
| Zero Balance | ± 2% of R.O. |
| Non-linearity | 0.03% of R.O. |
| Hysteresis | 0.02% of R.O. |
| Non-Repeatability | 0.02% of R.O. |
| Creep in 1 hour | 0.02% of Load |
| Insulation | > 5,000MΩ |
| Input Impedance | 700 ± 30Ω |
| Output Impedance | 700 ± 4Ω |
| Safe Overload | 150% of F.S. |
| Ultimate Overload | 300% of F.S. |
| Compensated Temperature Range | -10 to 40 °C |
| Operating Temperature Range | -40 to 80 °C |
| Temperature Effect on Output | 20 ppm/°C of Load |
| Temperature Effect on Zero | 20 ppm/°C of R.O. |
| Recommended Excitation | 10V DC/AC |
| Maximum Excitation | 20V DC/AC |
Interchangeable Cross Reference
AmCells T103 Series Equivalents
| Manufacturer | Equivalent Model |
| Artech Industries Inc. | 70210 |
| Revere | 5103 |
