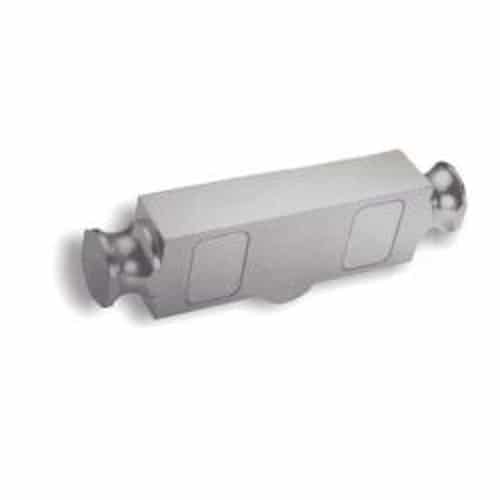

• photo of amcells D S S load cell with link ends

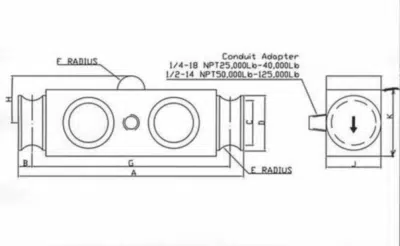

  • CAD drawing of amcells D S S load cell with link ends

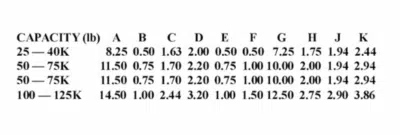

  • table indicating physical dimensions vs capacity of an amcells D D S load cell

AmCells DSS Series Double-Ended Shear Beam


AmCells DSS Series Double-Ended Shear Beam load cells feature link nose ends and alloy steel construction. They have 60ft cabling with a conduit adapter.

This series of load cell is available in 50K-150Klb capacities. Availability varies for 100Klb and 150Klb capacities; therefore, call before ordering.

Quantity Price
1 - 9 $1,320.00
10 - 24 $1,254.00
25 - 49 $1,214.40
50 - 99 $1,174.80
100 + $1,122.00
Tacuna Systems Price Match Guarantee
SKU: DSS Category:

AmCells DSS Series Features

  • Alloy Steel
  • Link noses compensate for movement during the weighing process
  • Capacities 50Klb to 150Klb
  • Meets OIML and HB44 Class III Standards
  • Cable Length: 60 ft.
  • Conduit adapter

Available options: DSS-50000lb, DSS-60000lb, DSS-75000lb, DSS-100000, DSS-150000lb

Please contact us with any product-related questions.


AmCells DSS Load Cell Specifications

Rated Output (R.O.) 3.0 MV/V ± 1%
Zero Balance ± 2% of R.O.
Non-linearity 0.03% of R.O.
Hysteresis 0.02% of R.O.
Non-Repeatability 0.02% of R.O.
Creep in 1 hour 0.02% of Load
Insulation > 5,000MΩ
Input Impedance 700 ± 30Ω
Output Impedance 700 ± 4Ω
Safe Overload 150% of F.S.
Ultimate Overload 300% of F.S.
Compensated Temperature Range -10 to 40 °C
Operating Temperature Range -40 to 80 °C
Temperature Effect on Output 20 ppm/°C of Load
Temperature Effect on Zero 20 ppm/°C of R.O.
Recommended Excitation 10V DC/AC
Maximum Excitation 20V DC/AC
