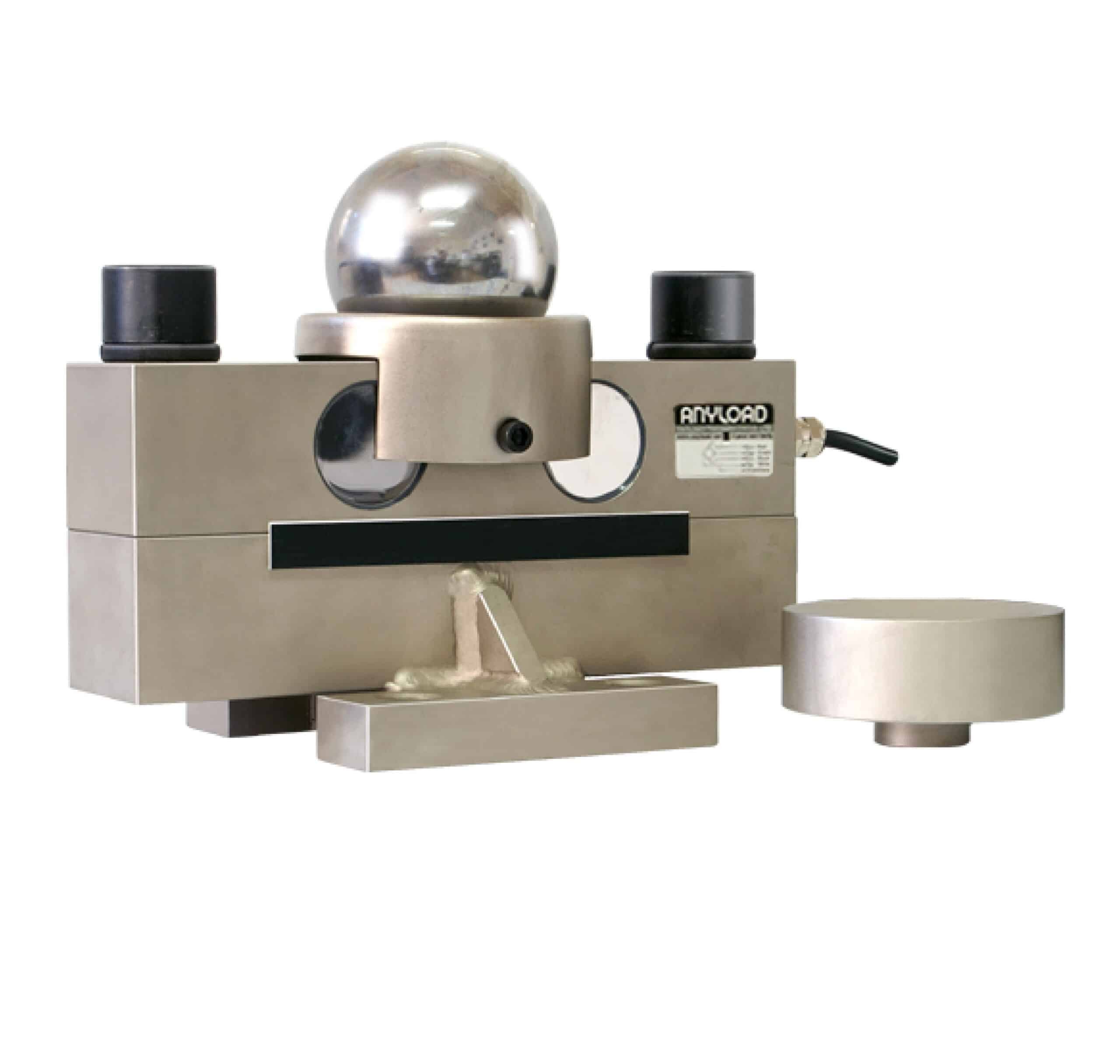

ANYLOAD 102AH Alloy Steel Double-Ended Beam Load Cell
The ANYLOAD 102AH Alloy Steel Double-Ended Beam Load Cell is nickel-plated alloy steel, environmentally sealed for an IP67 ingress protection rating. It comes in 20t and 30t rated capacities.
| Quantity | Price |
|---|---|
| 1 - 9 | $826.00 |
| 10 - 24 | $784.70 |
| 25 - 49 | $759.92 |
| 50 - 99 | $735.14 |
| 100 + | $702.10 |
ANYLOAD 102AH Features
The Anyload 102AH Double-Ended Beam Load Cell is a robust shear beam sensor engineered for demanding industrial weighing applications. Designed to handle high-capacity loads, it is ideal for use in tank, hopper, platform, and structural weighing systems. Built from durable alloy steel, the load cell offers exceptional strength and long-term reliability in harsh working environments. With an IP67-rated sealing, it is well protected against dust and moisture, ensuring consistent performance even in challenging conditions. The sensor provides stable and highly linear output across a wide capacity range from 5 t to 50 t, making it suitable for various heavy-duty weighing setups. Its dependable accuracy and rugged construction make it a trusted solution for precise industrial measurement.
- Material: Alloy Steel
- Rated Capacity: 5t, 10t, 15t, 20t, 25t, 30t, 50t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex -certified
- ATEX, FM, IECEx available upon request
Available Options: 20t & 30t.
Please contact us with any product-related questions.
Specifications
ANYLOAD 102AH Load Cell Specifications
| Rated Capacity | 5t, 10t, 15t, 20t, 25t, 30t, 50t |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
