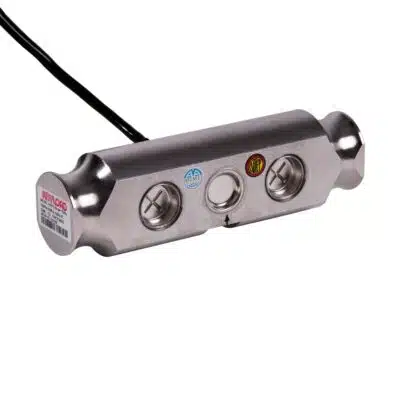

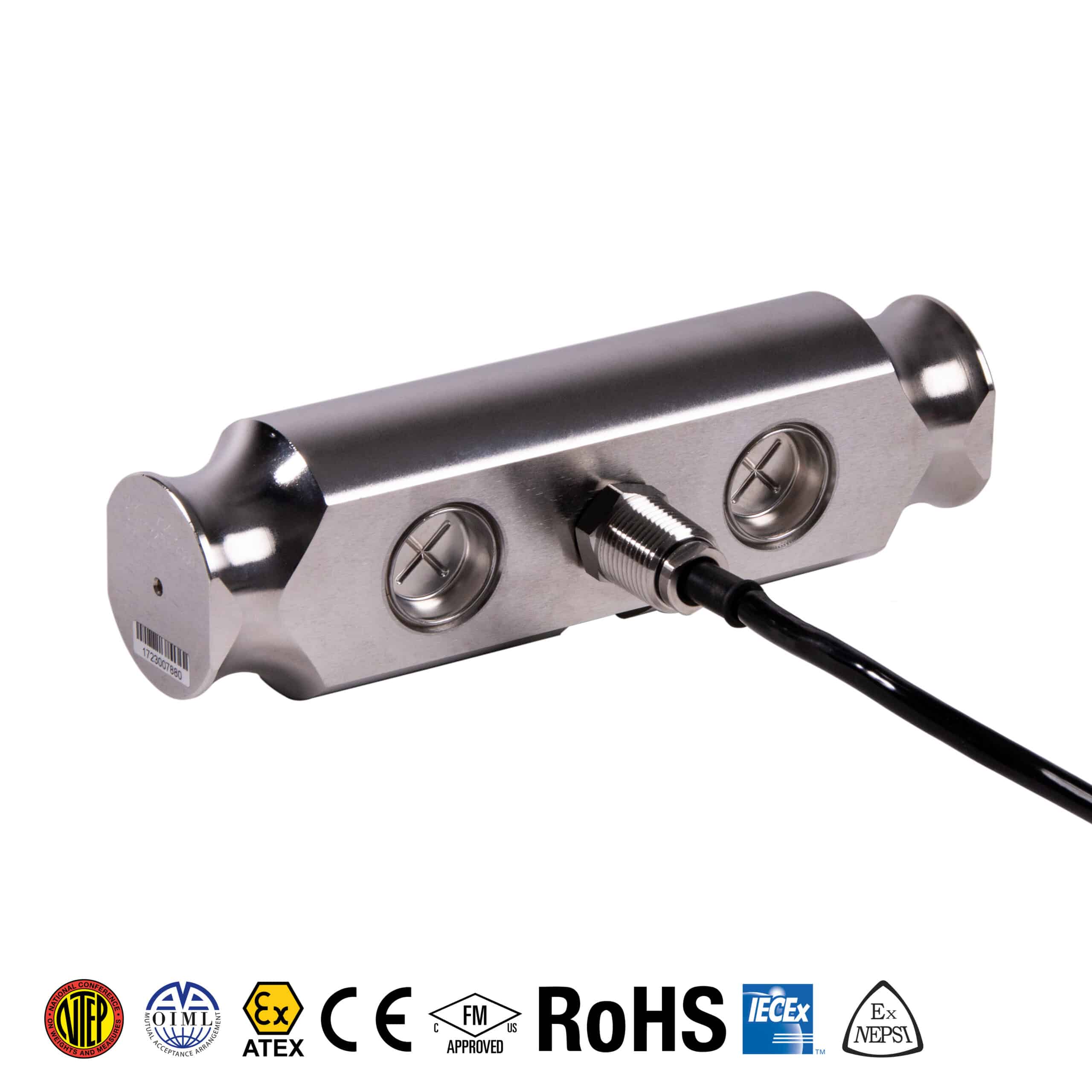

ANYLOAD 102FS Stainless Steel Double-Ended Beam Load Cell

The ANYLOAD 102FS Double-Ended Beam Load Cell is available in 50Klb and 75Klb rated capacities. It is welded seal 2Cr13 stainless steel with an IP68 ingress protection rating.

Other capacities and configurations available – please contact us with any questions.

$1,088.00

SKU: 102FS Category:

ANYLOAD 102FS Key Features

  • 2CR13 Stainless steel material
  • Rated Capacities: 50Klb, 75Klb
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-75Klb
  • OIML MAA C4.5, Y=18 000 certified from 11t-55t
  • CE, RoHS and Ex certified

Available options: 102FS-50000lb-YZ, 102FS-75000lb-YZ

Please contact us with any product interfacing inquiries.

Specifications

ANYLOAD 102FS Load Cell Specifications

Rated Capacity 50Klb, 75Klb
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

Interchangeable Cross Reference

Manufacturer Model
Cardinal DB50000S
Cardinal DB75000S
Coti Global CG-DB50000S
Rice Lake RLDB50000S
Rice Lake RLDB75000S


Technical Documents

102FS Double-Ended Beam Load Cell Datasheet
Certificate Icon NTEP Certificate of Conformance
OIML Certificate of Conformance
CE Certificate of Conformity
RoHS Certificate of Conformity
Explosion Protection Certificate of Conformity
