ANYLOAD 102EH Alloy Steel Double-Ended Beam Load Cell
Other capacities and configurations are available, and certain options may have limited quantities – please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $380.00 |
| 10 - 24 | $361.00 |
| 25 - 49 | $349.60 |
| 50 - 99 | $338.20 |
| 100 + | $323.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Mounting Kit
- Reviews (0)
ANYLOAD 102EH Features

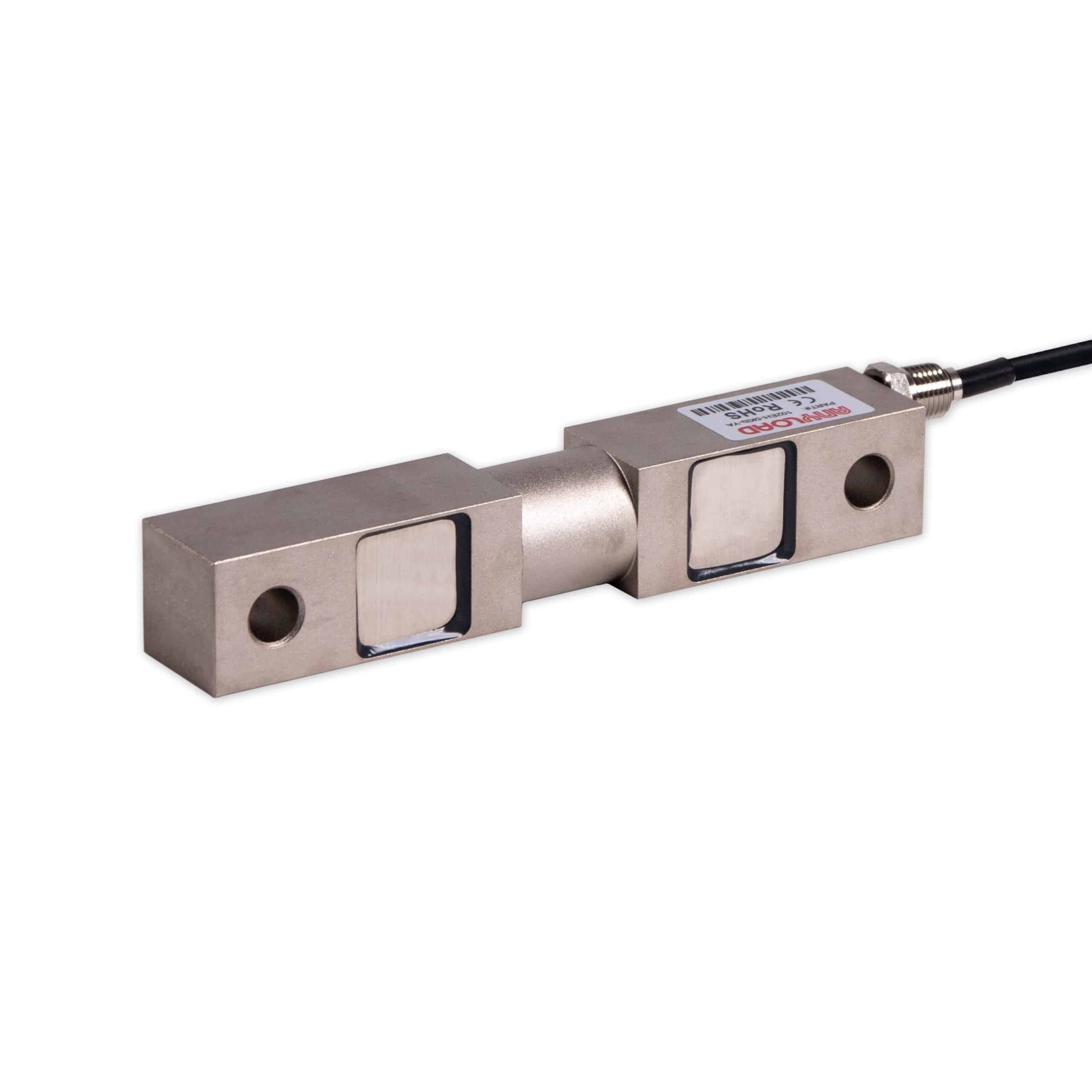

The 102EH Double-Ended Beam Load Cell, available in capacities from 1Klb to 300Klb, features an environmentally sealed alloy steel construction with IP67 water resistance. Its center-loading design makes it ideal for silo, tank, and hopper weighing applications. For enhanced performance, the optional 102EHM2 compression weigh module shields the load cell, reduces off-center loading, prevents lifting, and compensates for thermal expansion, ensuring optimal accuracy in demanding conditions.
- Material: Nickel-plated alloy steel
- Rated Capacities: 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb,100Klb, 125Klb, 200Klb, 300Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex-certified
Available Options: 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 25Klb, 35Klb, 50Klb, 60Klb & 75Klb.
Quantities are limited for the 102EH-100Klb and 102EH-125Klb options. Please contact us to order.
Installation Module: ANYLOAD 102EHM2
Specifications
ANYLOAD 102EH Load Cell Specifications
| Rated Capacity | 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb, 100Klb, 125Klb, 200Klb, 300Klb |
| Full-Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | 125Klb < ± 0.050% // = 200Klb < ± 0.1% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | 125Klb < ± 0.030% // = 200Klb < ± 0.1% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
102EH Alloy Steel Double-Ended Beam Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
 |
102EH-(1-5)Klb |
|---|---|
|
102EH-(10-25)Klb |
|
102EH-35Klb |
|
102EH-(50-60)Klb |
|
102EH-75Klb |
|
102EH-(100-125)Klb |
|
102EH-200Klb |
|
102EH-300Klb |
Interchangeable Cross Reference
ANYLOAD 102EH Equivalents
| Manufacturer | Model |
| Coti Global | CG-16 |
| Rice Lake | RL75016, RL77032 |
| Mettler Toledo | SLD425 |
| Vishay Celtron | DSR |
| Vishay Revere Transducers | 5203 |
| Vishay Sensortronics | 65016 |
Mounting Kit
|
102EHM2 Module Kit |
