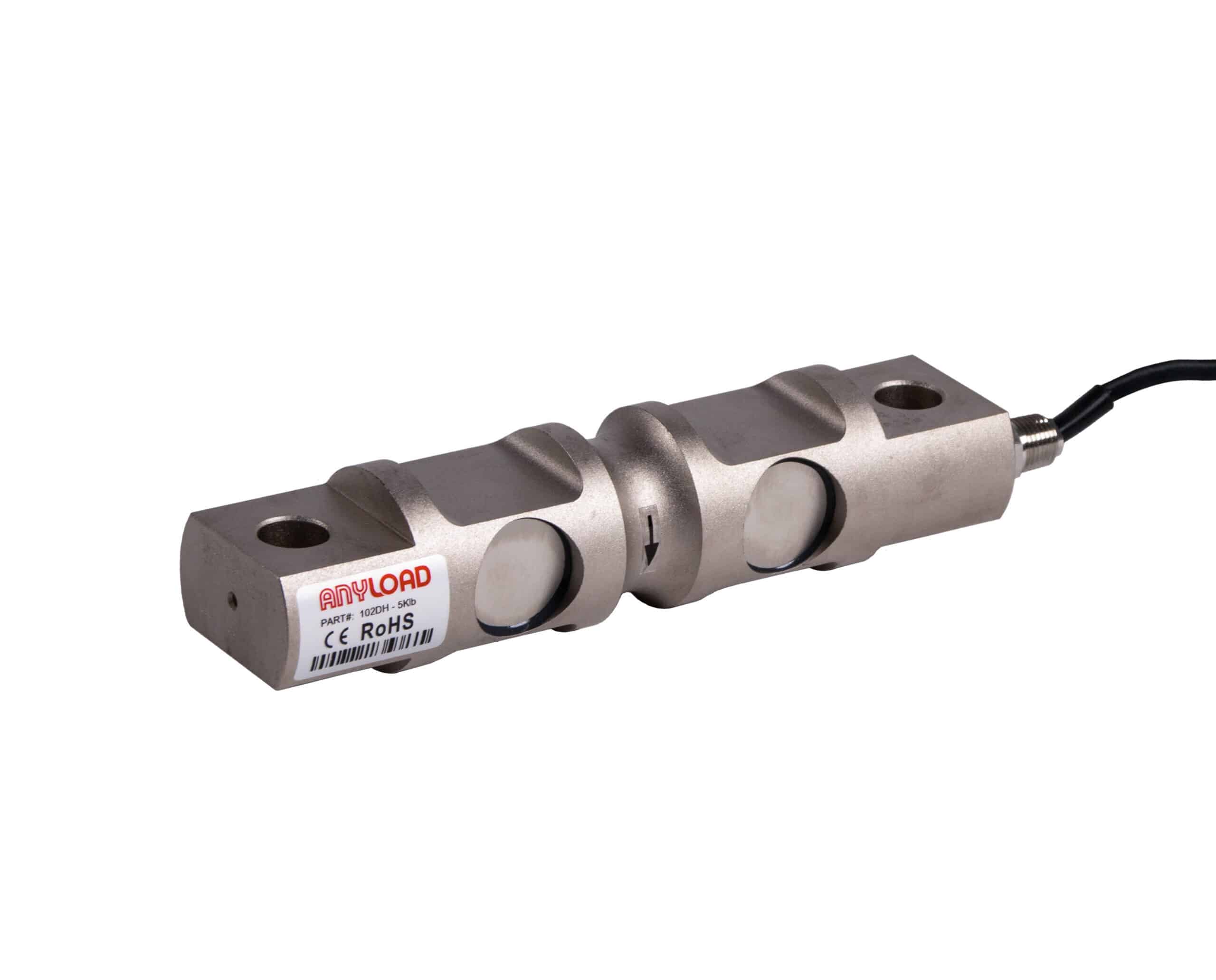

ANYLOAD 102DH Alloy Steel Double-Ended Beam Load Cell
The ANYLOAD 102DH Double-Ended Beam Load Cell, available in 5Klb-250Klb capacities, features an IP67-rated, sealed alloy steel design. OIML and NTEP certified, it is ideal for heavy-duty applications like silo and tank weighing. It is also interchangeable with models from Rice Lake, Vishay Revere, and Sensortronics. An installation module for this product is available.
Other capacities and configurations are available – please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $472.00 |
10-24 | 10 - 24 | 5% $448.40 |
25-49 | 25 - 49 | 8% $434.24 |
50-99 | 50 - 99 | 11% $420.08 |
100+ | 100 + | 15% $401.20 |
SKU: 102DH
Category: Double-Ended Shear Beam
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 102DH Features
The ANYLOAD 102DH Double-Ended Beam Load Cell comes in capacities from 5Klb to 250Klb. It is made of sealed alloy steel with IP67 protection, which guards against water and dust. Additionally, it is OIML and NTEP certified, ensuring both accuracy and reliability. Moreover, this load cell can replace models from Rice Lake, Vishay Revere, and Sensortronics. It is perfect for heavy-duty tasks such as silo, tank, and platform weighing. Finally, an optional compression weigh module helps reduce off-center forces and adjust for thermal expansion.
- Material: Alloy Steel
- Rated Capacities: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb, 250Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 20Klb-120Klb
- OIML MAA C4, Y=15 000 certified from 10t-50t
- CE, RoHS, and Ex-certified
Available Options: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb & 250Klb.
Installation Module: ANYLOAD 102DHM3
Please contact us with any product-related questions.
Specifications
ANYLOAD 102DH Load Cell Specifications
Rated Capacity | 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb, 250Klb |
Full Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 700Ω ± 10Ω |
Output Resistance | 700Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 102DH Equivalents
Manufacturer | Equivalent Model |
Coti Global | CG-5103 |
Rice Lake | RL70000 |
Mettler Toledo | SLD430 |
Vishay Revere Transducers | 5103 |
Vishay Sensortronics | 60058 |
