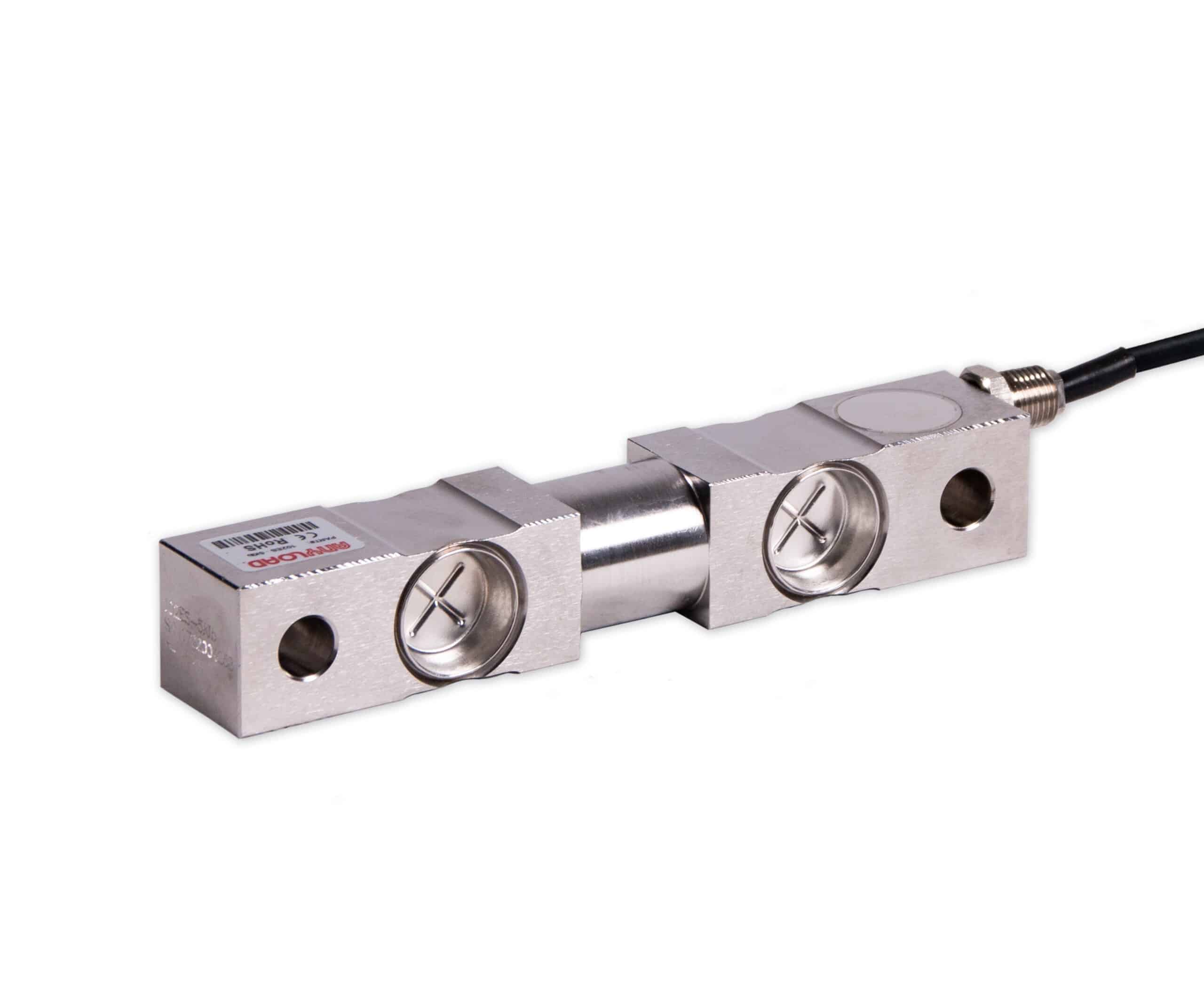

ANYLOAD 102ES Stainless Steel Double-Ended Beam Load Cell
The 102ES is a double-ended beam load cell with center loading, designed to protect against irregular forces. Made from stainless steel with an IP68 water-resistant seal, it performs reliably in harsh industrial conditions. Available in capacities from 2.5Klb to 50Klb, it includes an optional compression weigh module (102ESM2) to minimize off-center loading, protect from lifting, and compensate for thermal expansion, ensuring optimal weighing accuracy.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $638.00 |
10-24 | 10 - 24 | 5% $606.10 |
25-49 | 25 - 49 | 8% $586.96 |
50-99 | 50 - 99 | 11% $567.82 |
100+ | 100 + | 15% $542.30 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 102ES Features
The 102ES is a double-ended beam load cell designed with center loading to protect against irregular loading forces, ensuring precise and reliable measurements. Constructed from 17-4PH stainless steel with a welded seal, it offers IP68-rated water resistance and corrosion protection, making it ideal for harsh industrial environments. Available in capacities ranging from 2.5Klb to 50Klb, the 102ES is engineered for durability and long-term performance. Additionally, the optional compression weigh module (102ESM2)shields the load cell from off-center loading, protects against lifting, and compensates for thermal expansion, creating an optimized weighing environment. This robust design makes the 102ES suitable for applications requiring compensation for non-axial forces while maintaining high accuracy under challenging conditions.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb, 50Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS, and Ex-certified
Available Options: 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb & 50Klb.
Installation Module: ANYLOAD 102ESM2
Please contact us with product-related questions.
Specifications
ANYLOAD 102ES Load Cell Specifications
Rated Capacity | 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 25Klb, 35Klb, 50Klb |
Full Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.050% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.030% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 700Ω ± 10Ω |
Output Resistance | 700Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Technical Documents
102ES Double-Ended Beam Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
102ES-(2.5-5)Klb | |
---|---|
102ES-(10-25)Klb | |
102ES-35Klb | |
102ES-50Klb |
Interchangeable Cross Reference
Manucturer | Model |
Coti Global | CG-16-SSW |
Rice Lake | RL75016SS |
Rice Lake | RL75016WHE* |
Mettler Toledo | SLD525 |
Vishay Celtron | DSR-SS |
Vishay Revere Transducers | 9203 |
Vishay Sensortronics | 65016W |
Vishay Sensortronics | 65016WH* |
*Hermetically Sealed
