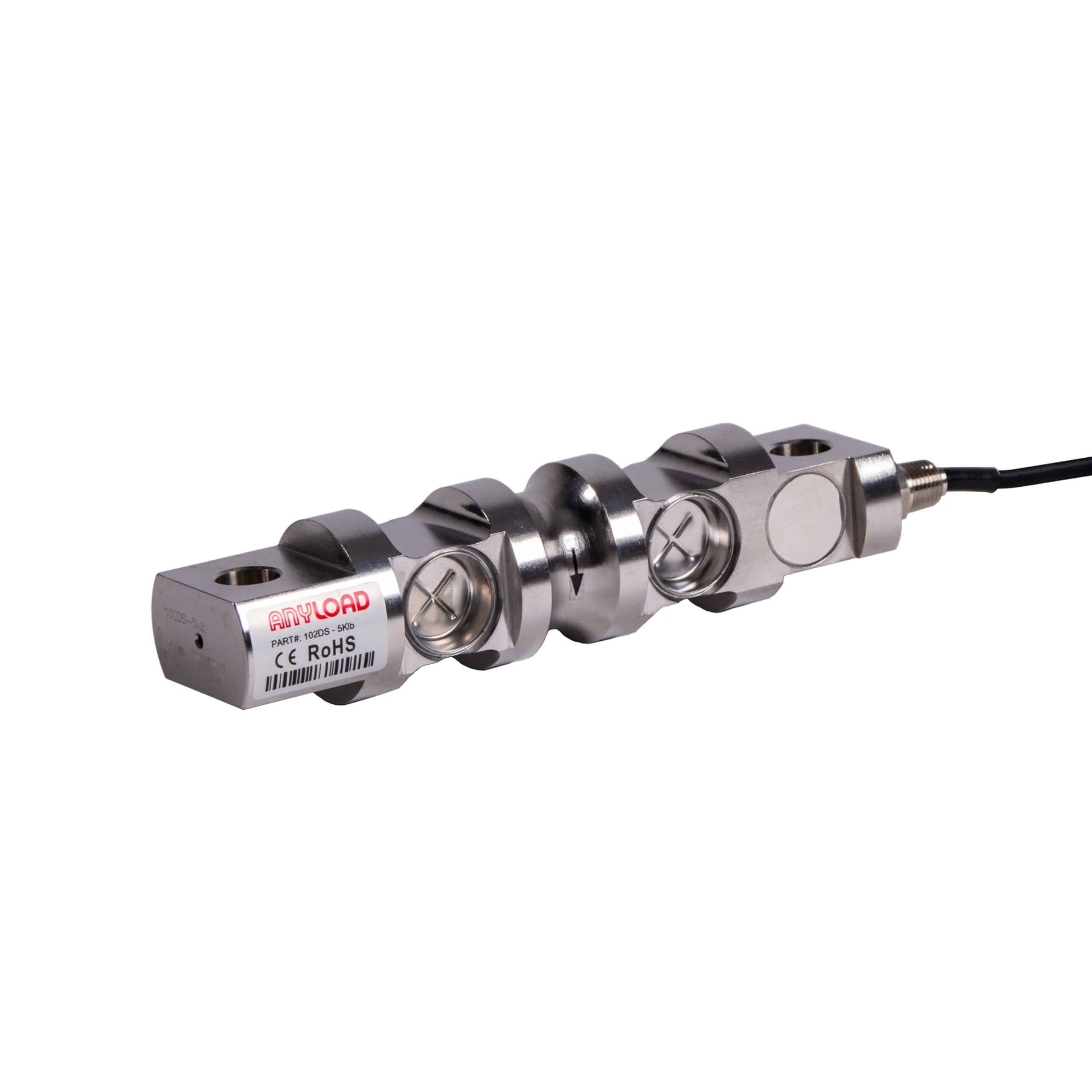

ANYLOAD 102DS Double-Ended Beam Load Cell
The ANYLOAD 102DS Double-Ended Beam Load Cell is a compact and robust weighing solution, crafted from IP68-rated stainless steel for water and corrosion resistance. Designed for high-capacity applications like axle weighers, tank weighing, and weighbridges, it is available in rated capacities from 5Klb to 50Klb. A compression weigh module is also available to protect the load cell, minimize off-center loading, and ensure optimal performance in harsh environments.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,028.00 |
| 10 - 24 | $976.60 |
| 25 - 49 | $945.76 |
| 50 - 99 | $914.92 |
| 100 + | $873.80 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Mounting Kit
- Reviews (0)
ANYLOAD 102DS Features
The ANYLOAD 102DS Double-Ended Beam Load Cell is a compact, robust, and cost-effective solution for high-capacity compression weighing needs. Constructed from 17-4PH stainless steel with an IP68 rating, it is water and corrosion resistant, making it ideal for harsh environments. This load cell is commonly used in applications such as axle weighers, tank weighing, and weighbridges and is available in rated capacities ranging from 5Klb to 50Klb. To enhance performance, a compression weigh module (102DSM3) is available, which shields the load cell, minimizes off-center loading, protects against lifting, and compensates for thermal expansion. This ensures the load cell operates in the ideal weighing environment, providing reliable and accurate measurements in demanding conditions.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS, and Ex-Certified
Available Options: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, & 100Klb.
Installation module: ANYLOAD 102DSM3
Other capacities are available. Please contact us with product-related questions.
Specifications
ANYLOAD 102DS Load Cell Specifications
| Rated Capacity | 5Klb, 10Klb, 15Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
102DS Alloy Steel Double-Ended Beam Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 102DS Interchangeable Cross Reference
| Manufacturer | Model |
|---|---|
| Coti Global | CG-9103 |
| Rice Lake | RL70000SS |
| Rice Lake | RL72019SS |
| Rice Lake | RL72020SS |
| Vishay Revere Transducers | 9103 |
| Mettler Toledo | SLD-530 |
Mounting Kit
|
102DSM3 Module Kit |
