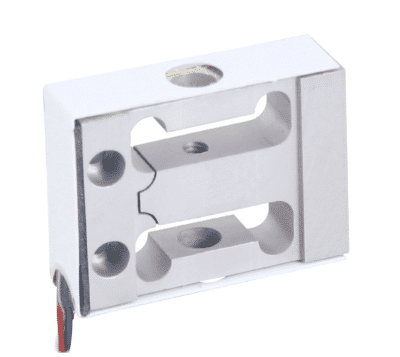

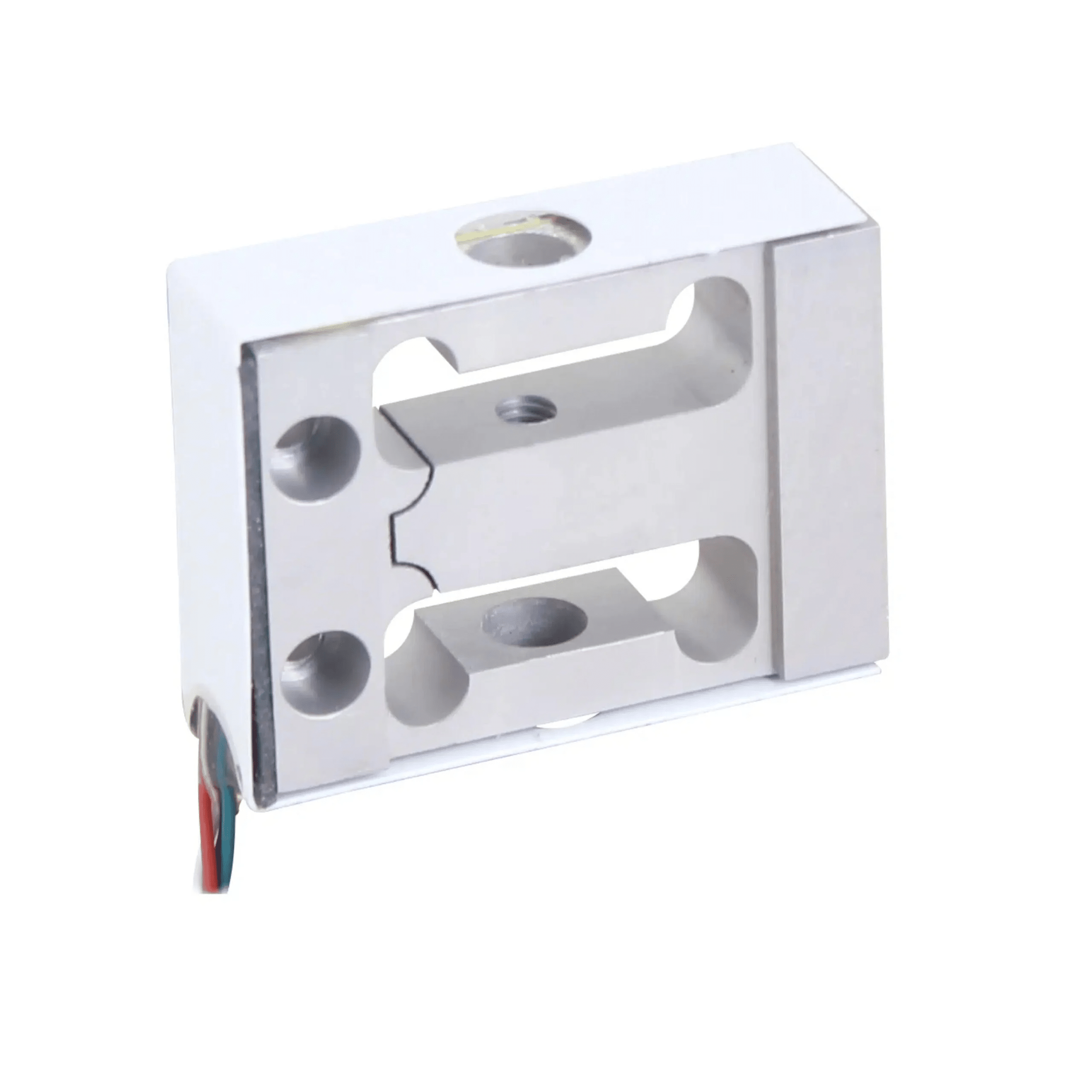

ANYLOAD 101AALS Side Mount Load Cell
The ANYLOAD 101AALS is a miniature side mount belt buckle load cell. It is ideal for automated processes such as small vessel filling or other light weighing applications with offset loads. With aluminum construction, the 101AALS is environmentally sealed and has an ingress protection rating of IP30. It comes in 2.2lb to 100lb capacities.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $354.00 |
10-24 | 10 - 24 | 5% $336.30 |
25-49 | 25 - 49 | 8% $325.68 |
50-99 | 50 - 99 | 11% $315.06 |
100+ | 100 + | 15% $300.90 |
ANYLOAD 101AALS Key Features
- Aluminum material
- Rated Capacities: 2.2lb, 5lb, 10lb, 25lb, 50lb, 100lb
- Full Scale Output: 2mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP30
Available options: 101AALS-2.2lb, 101AALS-5lb, 101AALS-10lb, 101AALS-25lb, 101AALS-50lb, 101AALS-100lb
See the similar, stainless ANYLOAD 101ASLS for higher capacities.
Please contact us with any product interfacing inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
101AALS Load Cell Specifications
Rated Capacity | 2.2lb, 5lb, 10lb, 25lb, 50lb, 100lb |
Full Scale Output | 2mV/V ± 20% |
Zero Balance | < ± 0.02mV/V |
Non-linearity | < ± 0.02% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.02% |
Creep in 30 minutes | < ± 0.25% |
Input Resistance | 1050Ω ± 15Ω |
Output Resistance | 1000Ω ± 3Ω |
Recommended Excitation | 10V |
Insulation Resistance | >5GΩ (50V DC) |
Nominal Temperature Range | -10°C to 40°C/-14°F to 104°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP30 |
Technical Documents
![]() |
101AALS Alloy Steel S-Beam Load Cell Datasheet |
Interchangeable Cross Reference
ANYLOAD 101AALS Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Futek | LSM300 |
