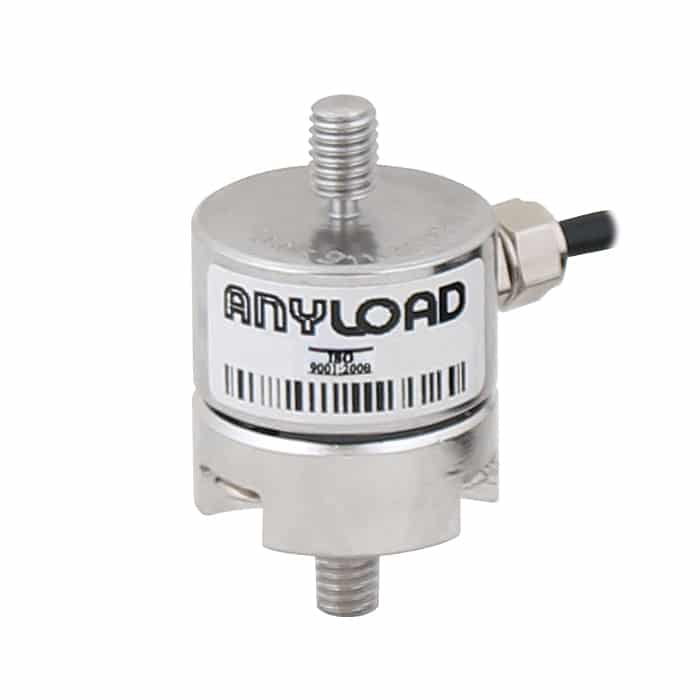

ANYLOAD 247BS Miniature Stainless Steel Load Button
The ANYLOAD 247BS is a high-performance miniature load button made from 17-4PH stainless steel, offering IP66 water and corrosion resistance. Designed for both tension and compression measurements, it is ideal for applications where space and weight are limited. Commonly used in the medical, automotive, and automation industries, this load button is available in capacities from 30-100kg and meets international safety standards.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $804.00 |
10-24 | 10 - 24 | 5% $763.80 |
25-49 | 25 - 49 | 8% $739.68 |
50-99 | 50 - 99 | 11% $715.56 |
100+ | 100 + | 15% $683.40 |
ANYLOAD 247BS Features
The ANYLOAD 247BS Miniature Stainless Steel Load Button is a high-performance device designed for precise tension and compression measurements in applications where space and weight are at a premium. Constructed from durable 17-4PH stainless steel, this load button offers exceptional water and corrosion resistance with an IP66 rating, making it suitable for harsh environments. It is particularly popular in the medical, automotive, and automation industries due to its compact design and reliability. Available in capacities ranging from 30kg to 100kg, the 247BS meets leading international safety standards, ensuring accurate and dependable performance in critical applications. This versatile load button is the ideal choice for demanding conditions where space is limited but precision is essential.
- Material: 17-4PH Stainless steel
- Rated Capacities: 20kg, 30kg, 50kg, 100kg
- Full-Scale Output: 1.0mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Available Options: 20kg, 30kg, 50kg &100kg.
Please contact us with any product-related questions.
Specifications
ANYLOAD 247BS Load Button Specifications
Rated Capacity | 20kg, 30kg, 50kg, 100kg | |
Full-Scale Output | 1.0mV/V ± 20% | |
Zero Balance |
|
|
Non-linearity | < ± 0.3% | |
Repeatability | < ± 0.1% | |
Hysteresis Error | < ± 0.1% | |
Creep in 30 minutes | < ± 0.1% | |
Input Resistance | 400Ω ±20Ω | |
Output Resistance | 350Ω ± 3Ω | |
Recommended Excitation | 10V (15V Maximum) | |
Insulation Resistance | > 2GΩ (50V DC) | |
Temperature Effect on Sensitivity | < ± 0.020% of Cn/k | |
Temperature Effect on Zero Balance | < ± 0.020% of Cn/k | |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F | |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F | |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F | |
Safe Overload | 150% of full scale | |
Breaking Overload | 300% of full scale | |
Seal Type | Environmentally Sealed | |
IP Rating | IP66 |
Technical Documents
ANYLOAD 247BS Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
247BS-(20-100)kg |
