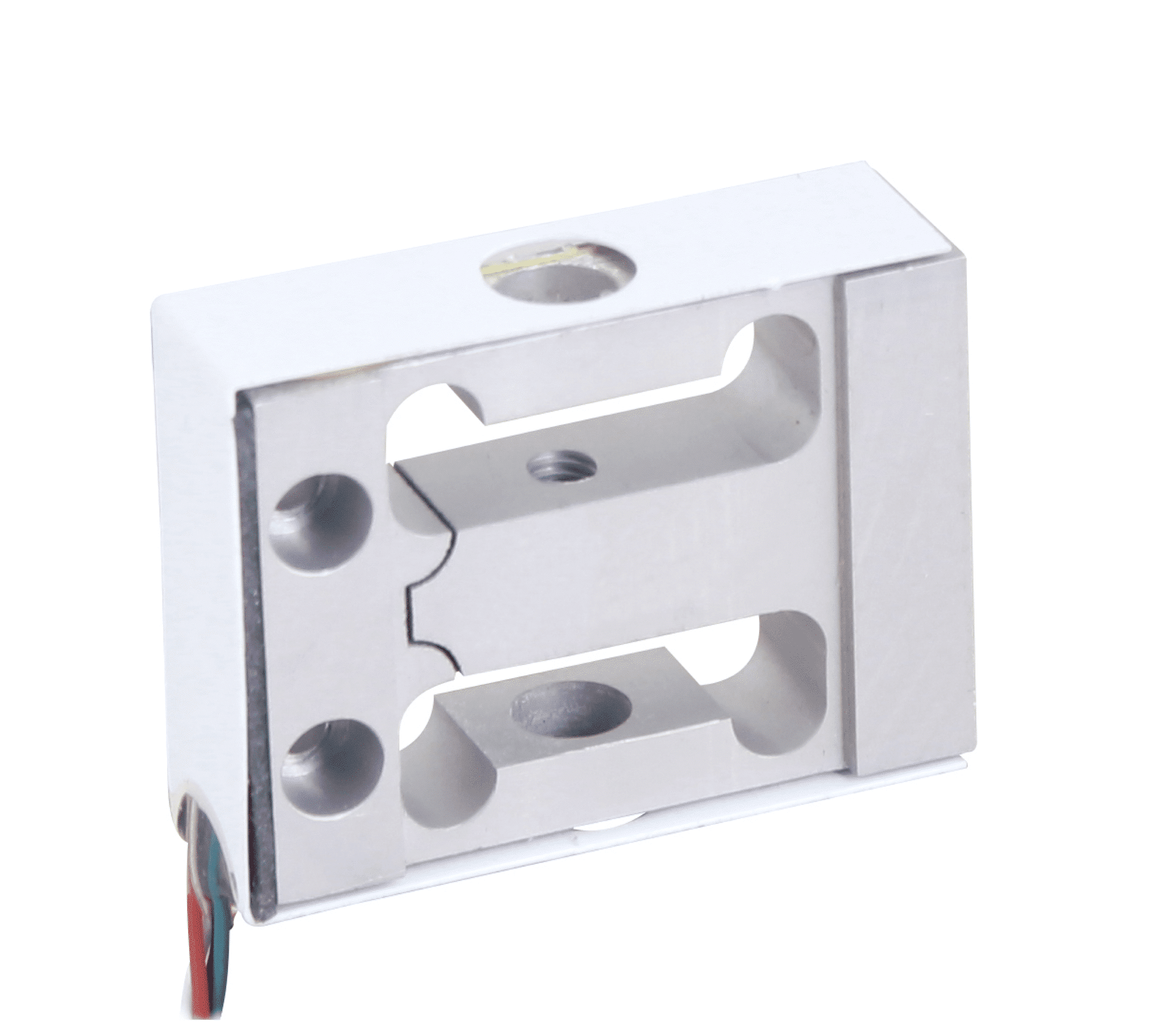

ANYLOAD 101ASLS Side Mount Load Cell
The ANYLOAD 101ASLS is a miniature side mount belt buckle load cell. It is ideal for automated processes such as small vessel filling or other light weighing applications with offset loads. With 17-4 stainless steel construction, the 101ASLS is environmentally sealed and has an ingress protection rating of IP30. It comes in 200lb and 500lb capacities; for smaller applications, see the ANYLOAD 101AALS.
$709.00
ANYLOAD 101ASLS Key Features
- 17-4 Stainless Steel material
- Rated Capacities: 200lb, 500lb
- Full Scale Output: 2mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP30
Available options: 101ASLS-200lb, 101ASLS-500lb
Please contact us with any product interfacing inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
101ASLS Load Cell Specifications
| Rated Capacity | 200lb, 500lb |
| Full Scale Output | 2mV/V ± 20% |
| Zero Balance | < ± 0.02mV/V |
| Non-linearity | < ± 0.06% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.06% |
| Creep in 30 minutes | < ± 0.25% |
| Input Resistance | 1050Ω ± 15Ω |
| Output Resistance | 1000Ω ± 3Ω |
| Recommended Excitation | 10V |
| Insulation Resistance | >5GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 40°C/-14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP30 |
Technical Documents
 |
101ASLS Alloy Steel S-Beam Load Cell Datasheet |
Interchangeable Cross Reference
ANYLOAD 101ASLS Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Futek | LSM300 |
Related products
-
ANYLOAD 247ASLL Miniature Load Button
$893.00 -
ANYLOAD 247BSWM Miniature Load Button
$761.00 -
ANYLOAD 247BS Miniature Stainless Steel Load Button
$633.00 -
ANYLOAD 101RS Tension Load Cell
$643.00 -
ANYLOAD 247AS Miniature Stainless Steel Load Button
$413.00 – $510.00 -

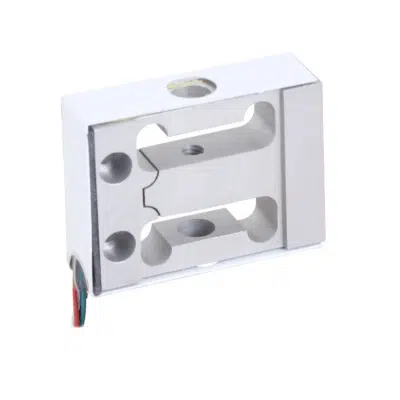

ANYLOAD 101AALS Side Mount Load Cell
