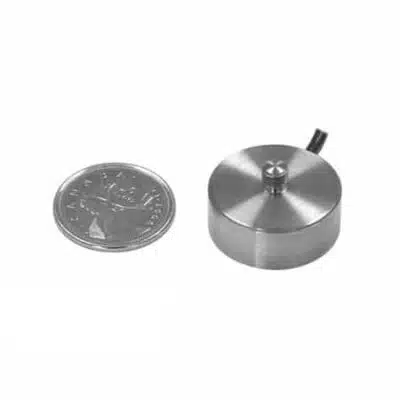

ANYLOAD 247AS Miniature Stainless Steel Load Button
The ANYLOAD 247AS Miniature Load Button is environmentally sealed, 17-4PH stainless steel, for an ingress protection rating of IP66. It is available in 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, and 5t capacities.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $413.00 |
10-24 | 10 - 24 | 5% $392.35 |
25-49 | 25 - 49 | 8% $379.96 |
50-99 | 50 - 99 | 11% $367.57 |
100+ | 100 + | 15% $351.05 |
SKU: 247AS
Category: Miniature and Load Button
ANYLOAD 247AS Key Features
- 17-4PH Stainless steel
- Rated Capacities: 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t
- Full Scale Output: 1.5mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Available options: 247AS-30kg, 247AS-50kg, 247AS-100kg, 247AS-200kg, 247AS-500kg, 247AS-1000kg, 247AS-2000kg, 247AS-5000kg
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 247AS Miniature Load Button Specifications
Rated Capacity | 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t |
Full Scale Output | 1.5mV/V ± 20% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.5% |
Repeatability | < ± 0.3% |
Hysteresis Error | < ± 0.5% |
Creep in 30 minutes | < ± 0.5% |
Input Resistance | 375Ω ±25Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.020% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.020% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP66 |
Technical Documents
ANYLOAD 247AS Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
