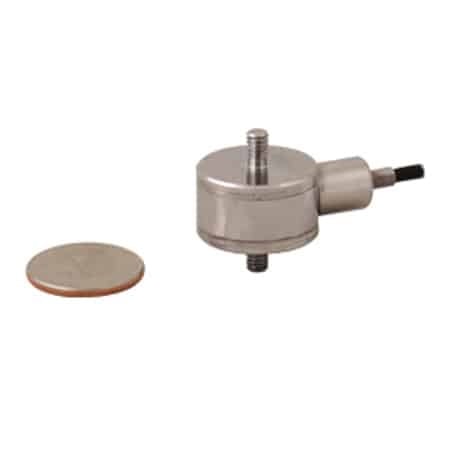

ANYLOAD 247BSWM Miniature Load Button
The ANYLOAD 247BSWM Miniature Stainless Steel Load Button is a compact, high-capacity load cell designed for precise tension or compression measurements in space-constrained applications. With capacities ranging from 10lbs to 10Klbs and an IP66 ingress protection rating, it is ideal for use in harsh environments and meets leading international safety standards.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,028.00 |
| 10 - 24 | $976.60 |
| 25 - 49 | $945.76 |
| 50 - 99 | $914.92 |
| 100 + | $873.80 |
ANYLOAD 247BSWM Features
The ANYLOAD 247BSWM Miniature Stainless Steel Load Button is the latest innovation in the force measurement industry, offering a compact and high-capacity solution for precision load measurements. Designed to provide accurate tension or compression readings, this load cell is ideal for applications where space is limited. It features a wide range of capacities from 10lbs to 10Klbs, making it versatile for various measurement needs. With an IP66 ingress protection rating, it is built to withstand harsh environments, ensuring reliable performance under challenging conditions. Additionally, the ANYLOAD 247BSWM meets leading international safety standards, making it a trusted choice for demanding applications. This load button is a testament to Anyload’s commitment to quality and precision in force measurement technology.
- Material:
10lb Capacity: Aluminum and 304 Stainless Steel
Other Capacities: 17-4PH Stainless steel - Rated Capacities: 10lb, 25lb, 50lb, 100lb, 250lb, 500lb, 1Klb, 2Klb, 3Klb, 5Klb, 7.5Klb, 10Klb
- Full-Scale Output: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
Available Options: 10lb, 25lb, 50lb, 100lb, 250lb, 500lb, 1Klb, 2Klb, 3Klb, 5Klb, 7.5Klb & 10Klb.
Please contact us with any product-related questions.
Specifications
ANYLOAD 247BSWM Load Button Specifications
| Rated Capacity | 10lb, 25lb, 50lb, 100lb, 250lb, 500lb, 1Klb, 2Klb, 3Klb, 5Klb, 7.5Klb, 10Klb |
| Full Scale Output | 2.0mV/V ± 20% |
| Zero Balance | ± 0.04mV/V |
| Non-linearity | < ± 0.2% |
| Repeatability | < ± 0.1% |
| Hysteresis Error | < ± 0.2% |
| Creep in 30 minutes | < ± 0.2% |
| Input Resistance | 375Ω ±25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
ANYLOAD 247BSWM Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
247BSWM-10lb |
|
247BSWM-(25-100)lb |
|
247BSWM-250lb |
|
247BSWM-(500-1000)lb |
|
247BSWM-(2-3)Klb |
|
247BSWM-5Klb |
|
247BSWM-(7.5-10)Klb |
