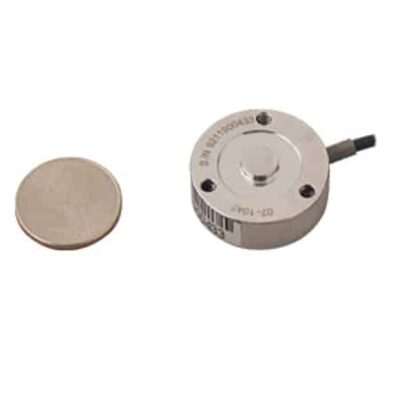

ANYLOAD 247ASLL Miniature Load Button
The ANYLOAD 247ASLL Miniature Load Button is a highly compact (1.5″ diameter) and dependable compression load cell constructed with 17-4PH stainless steel. Ideal for portable applications, it provides accurate and reliable readings with capacities of 5Klb and 10Klb. With an IP64 ingress protection rating, it meets leading international safety standards.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $1,138.00 |
10-24 | 10 - 24 | 5% $1,081.10 |
25-49 | 25 - 49 | 8% $1,046.96 |
50-99 | 50 - 99 | 11% $1,012.82 |
100+ | 100 + | 15% $967.30 |
ANYLOAD 247ASLL Features
The ANYLOAD 247ASLL Miniature Load Button is a highly compact and dependable compression load cell with a diameter of 1.5 inches, making it ideal for portable applications. Constructed with 17-4PH stainless steel, it ensures durability and precision, providing highly accurate and reliable readings. This load cell is available in capacities of 5Klb and 10Klb, catering to various measurement needs. With an ingress protection rating of IP64, it is designed to withstand challenging environments, offering protection against dust and splashing water. Furthermore, the ANYLOAD 247ASLL meets leading international safety requirements, making it a trusted choice for critical applications. Its robust construction and precise performance make it a valuable addition to any force measurement setup.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 5Klb, 10Klb
- Full-Scale Output: 2.0mV/V ± 20%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP64
Available Options: 5Klb & 10Klb.
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 247ASLL Miniature Load Button Specifications
Rated Capacity | 5Klb, 10Klb |
Full Scale Output | 2.0mV/V ± 20% |
Zero Balance | ±0.02mV/V |
Non-linearity | Capacity = 5Klb ≤ ± 0.25% Capacity = 10Klb ≤ ± 0.50% |
Repeatability | ≤ ± 0.10% |
Hysteresis Error | Capacity = 5Klb ≤ ± 0.25% Capacity = 10Klb ≤ ± 0.50% |
Creep in 30 minutes | < ± 0.1% |
Input Resistance | 700Ω ±25Ω |
Output Resistance | 700Ω ±25Ω |
Recommended Excitation | Cap. ≤ 10kg: 5V (7V Maximum) Cap. > 10kg: 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP66 |
