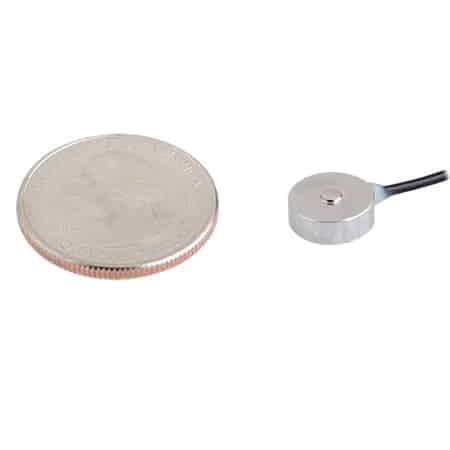

ANYLOAD 247ASLH Miniature Load Button
The ANYLOAD 247ASLH Miniature Load Button is a versatile and compact compression weighing and force measurement solution, ideal for space and weight-constrained applications. Constructed from 17-4PH stainless steel with an IP66 ingress protection rating, it performs reliably in challenging conditions. Available in capacities ranging from 10kg to 10t, it also meets leading international safety standards, ensuring accurate and robust performance.
| Quantity | Price |
|---|---|
| 1 - 9 | $670.00 |
| 10 - 24 | $636.50 |
| 25 - 49 | $616.40 |
| 50 - 99 | $596.30 |
| 100 + | $569.50 |
ANYLOAD 247ASLH Features
The ANYLOAD 247ASLH Miniature Load Button is a versatile and compact compression weighing and force measurement solution, perfect for applications where space and weight are limited. Constructed from 17-4PH stainless steel, this load button is environmentally sealed with an ingress protection rating of IP66, ensuring reliable performance in challenging conditions. It boasts a 150% safe overload capacity, providing robustness and accuracy in demanding environments. Available in a wide range of capacities from 10kg to 10t, it caters to various measurement needs. The ANYLOAD 247ASLH meets leading international safety requirements, making it a trusted choice for precise and dependable force measurement. Its durability and versatility make it ideal for both industrial and portable applications.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 10kg, 25kg, 30kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10t
- Full-Scale Output:
Capacities ≤ 10kg: 1.0mV/V ± 20%;
Capacities > 10kg: 2.0mV/V ± 20% - Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP66
Available Options: 10kg, 25kg, 30kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t & 10t.
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 247ASLH Miniature Load Button Specifications
| Rated Capacity | 10kg, 25kg, 30kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10t |
| Thread | No thread (10kg, 25kg, 50kg, 100kg); Metric thread (250kg, 500kg, 1t, 2t, 5t, 10t) |
| Full-Scale Output | Cap. ≤ 10kg: ≥0.8mV/V; Cap. > 10kg: 2.0mV/V ± 20% |
| Zero Balance | Cap. ≤10kg: ±0.03mV/V Cap. >10kg: ±0.04mV/V |
| Non-linearity | < ± 0.5% |
| Repeatability | < ± 0.5% |
| Hysteresis Error | < ± 0.5% |
| Creep in 30 minutes | < ± 0.5% |
| Input Resistance | Cap. ≤ 500kg: 375Ω ±25Ω Cap. > 500kg: 700Ω ±25Ω |
| Output Resistance | Cap. ≤ 500kg: 350Ω ±3Ω Cap. > 500kg: 700Ω ±3Ω |
| Recommended Excitation | Cap. ≤ 10kg: 5V (7V Maximum) Cap. > 10kg: 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
