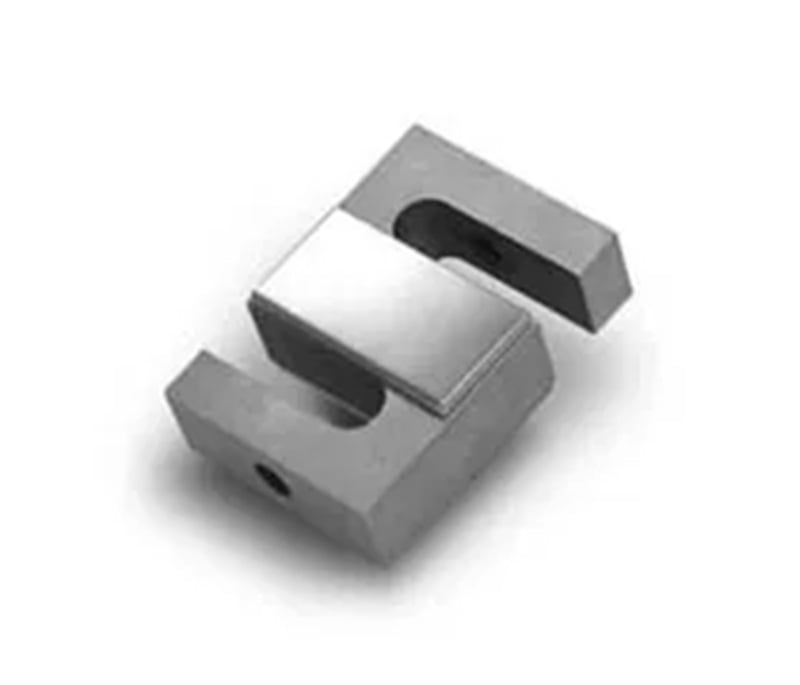

AmCells STB-50 S-Type Aluminum Load Cell 50kg – SI Thread
The AmCells STB-50 S-Type load cell is available in a 50kg capacity. Made of aerospace-grade aluminum, it is ideal for light tension or compression weighing applications.
$81.00
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $81.00 |
10-24 | 10 - 24 | 5% $76.95 |
25-49 | 25 - 49 | 8% $74.52 |
50-99 | 50 - 99 | 11% $72.09 |
100+ | 100 + | 15% $68.85 |
SKU: STB-50
Category: S-Type
AmCells STB-50 Key Features
The AmCells STB-50 S-Type aluminum load cell measures compression and tension loads and easily mounts from top and bottom with metric threaded (SI) holes. For SAE mounting holes, please see the AmCells STA series of load cells.
- Aerospace aluminum material
- Meets OIML and HB44 III Standards
- Cable Length: 20 ft.
Available options: STB-50kg
Please contact us with any product interfacing inquiries.
Specifications
AmCells STB-50 S-Type Aluminum Load Cell Specifications
Rated Output (R.O.) | 2.0 MV/V ± 1% |
Zero Balance | ± 2% of R.O. |
Non-Linearity | 0.02% of R.O. |
Hysteresis | 0.02% of R.O. |
Non-Repeatability | 0.02% of R.O. |
Creep in 1 hour | 0.05% of Load |
Insulation | > 5,000MΩ |
Input Impedance | 385Ω ± 30Ω |
Output Impedance | 350Ω ± 4Ω |
Safety Overload | 150% of F.S. |
Ultimate Overload | 200% of F.S. |
Compensated Temperature Range | -10 to 40 °C |
Operating Temperature Range | -40 to 80 °C |
Temperature Effect on Output | 20 ppm/°C of Load |
Temperature Effect on Zero | 20 ppm/°C of R.O. |
Recommended Excitation | 10V DC/AC |
Maximum Excitation | 20V DC/AC |
