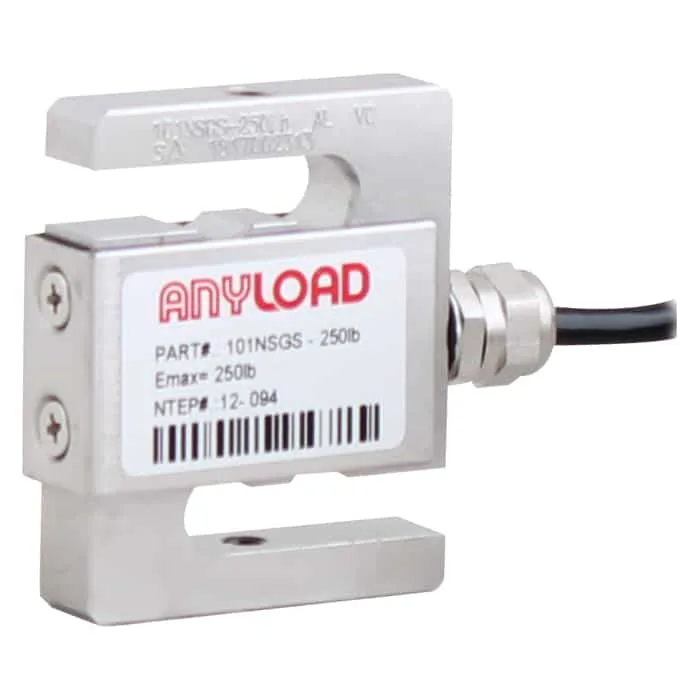

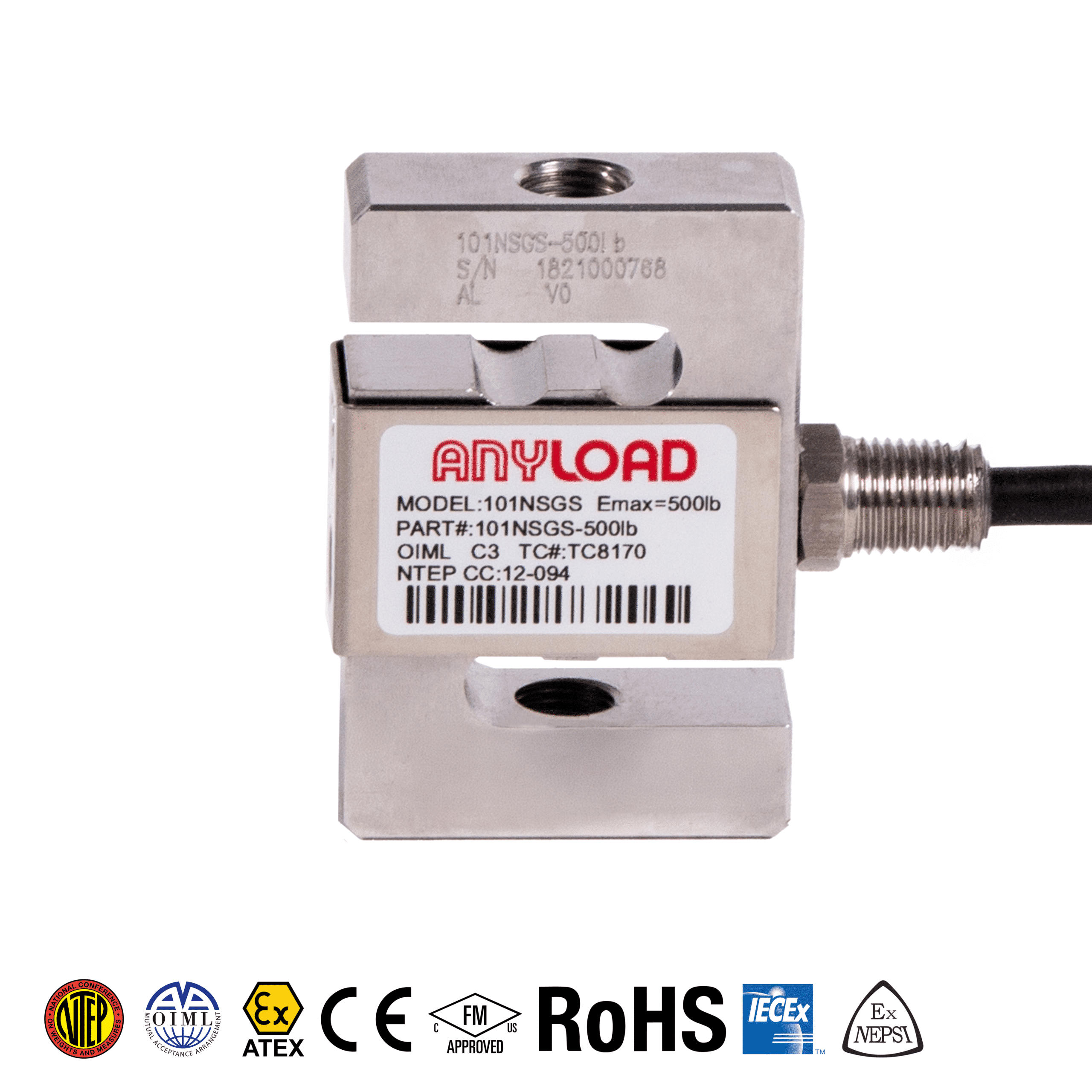

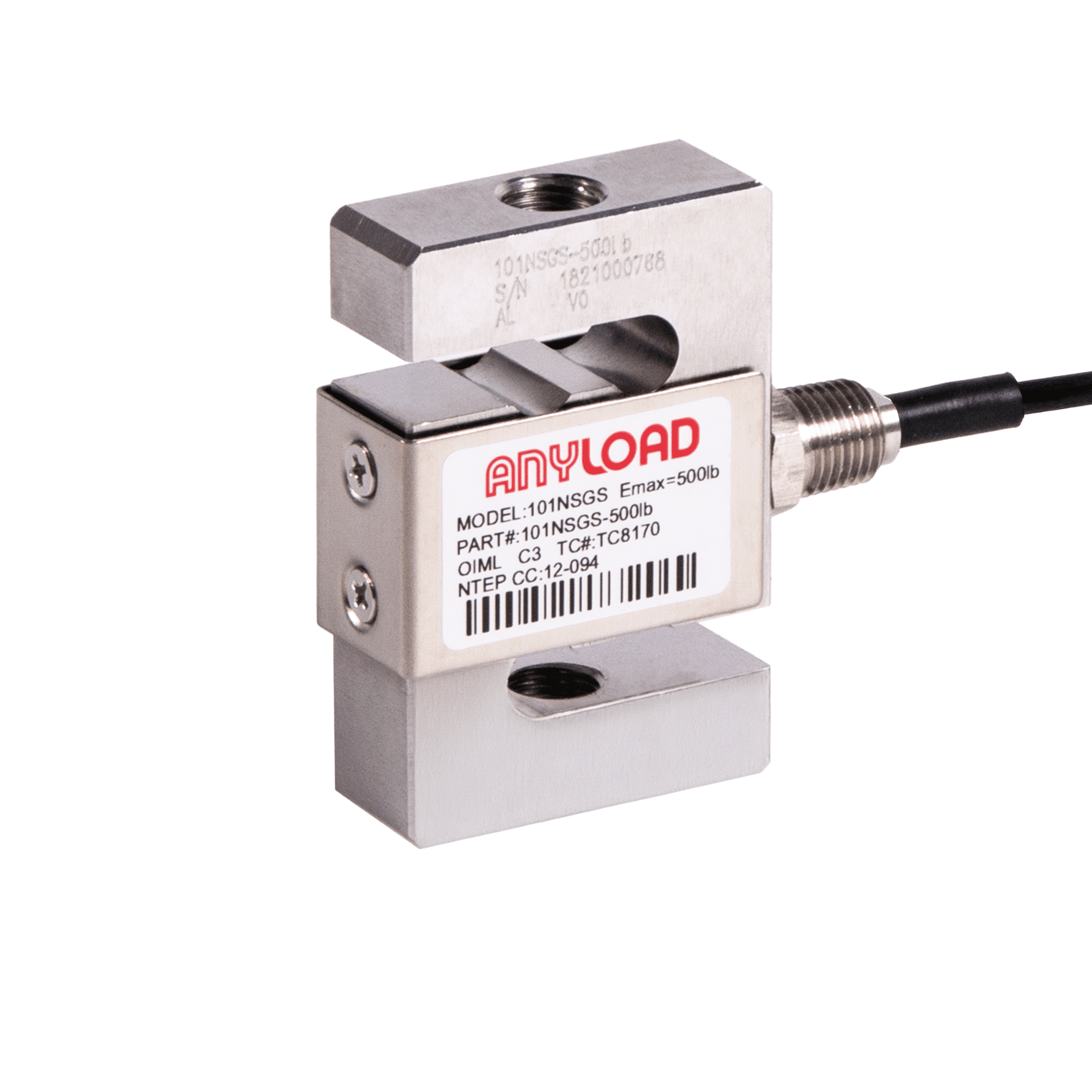

ANYLOAD 101NSGS Stainless Steel S-Beam Load Cell
The ANYLOAD 101NSGS S-Beam Load Cell is made from 17-4PH stainless steel and offers capacities from 500lb to 10,000lb. With an IP67 rating, it is resistant to water and corrosion, making it ideal for tough environments. It also meets leading international safety standards. It is OIML C3/C4.5 and NTEP certified, and compatible with models from Vishay, Coti Global, and Rice Lake. Common applications include tank weighing, process weighing, hoppers, and other tension measurement needs.
Other capacities and configurations are available – please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $302.00 |
10-24 | 10 - 24 | 5% $286.90 |
25-49 | 25 - 49 | 8% $277.84 |
50-99 | 50 - 99 | 11% $268.78 |
100+ | 100 + | 15% $256.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
The ANYLOAD 101NSGS S-Beam Load Cell is made from durable 17-4PH stainless steel and offers capacities from 500lb to 10,000lb. With its IP67 rating, it resists water and corrosion, ensuring reliable performance in tough conditions. Additionally, it meets international safety standards and is certified to OIML C3/C4.5 and NTEP standards. Moreover, it is compatible with models from Vishay, Coti Global, and Rice Lake, making it easily interchangeable. Commonly, it is used for tank weighing, process weighing, and hoppers. Overall, this versatile load cell handles various force measurement and tension weighing needs.
- Material: Stainless Steel
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full-Scale Output: 3mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:3 000 Class III, Single Cell certified from 100lb-3Klb
- NTEP 1:4 500 Class III, Single Cell certified from 5Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- OIML MAA C4.5, Y=14 000 certified from 2t-10t
- CE, RoHS, and Ex certified
Available Options: 50lb, 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb & 20Klb.
Please contact us with any product interfacing inquiries.
Specifications
101NSGS Stainless Steel S-Beam Load Cell Specifications
Rated Capacity | 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb |
Full-Scale Output | 3mV/V ± 1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
3D Drawing
101NSGS-(50-250)lb | |
---|---|
101NSGS-500lb | |
101NSGS-(1-3)klb | |
101NSGS-(5-10)klb | |
101NSGS-15klb | |
101NSGS-20klb |
Interchangeable Cross Reference
ANYLOAD 101NSGS Interchangeable Cross Reference
Manufacturer | Model |
Coti Global | CGSB-SS |
Rice Lake | RL20000 SS |
Rice Lake | RL20000 ST |
Vishay Celtron | STC-SS |
Vishay Revere Transducers | 9363 |
Vishay Sensortronics | 60050 |
