Key Features
- Alloy steel material
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full Scale Output: 3mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:3 000 Class III, Single Cell certified from 100lb-3Klb
- NTEP 1:4 500 Class III, Single Cell certified from 5Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- OIML MAA C4.5, Y=14 000 certified from 2t-10t
- CE, RoHS and Ex certified
- Measurement Ukraine certified
Available options: 101NH-50lb, 101NH-100lb, 101NH-200lb, 101NH-250lb, 101NH-500lb, 101NH-750lb, 101NH-1000lb, 101NH-1500lb, 101NH-2000lb, 101NH-2500lb, 101NH-3000lb, 101NH-5000lb, 101NH-10000lb, 101NH-15000lb, 101NH-20000lb
Please contact us with any product interfacing inquiries.
Interchangeable Cross Reference
| Manufacturer | Model |
| Rice Lake | RL20000 |
| Rice Lake | RL20001 |
| Vishay Celtron | STC |
| Vishay Revere Transducers | 363 |
| Vishay Sensortronics | 60001 |

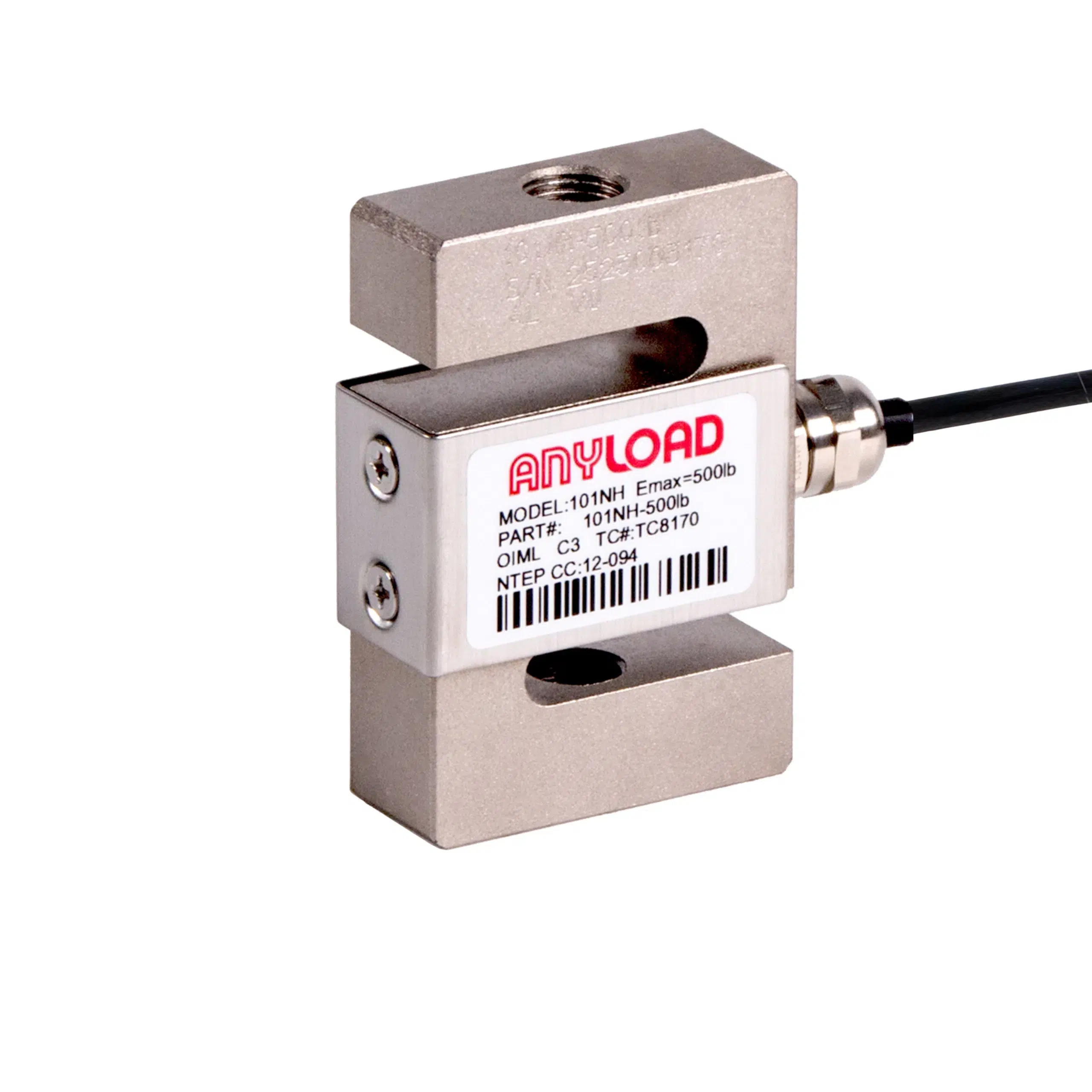

101NH Alloy Steel S-Beam Load Cell Specifications
| Rated Capacity | 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb |
| Full Scale Output | 3mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
