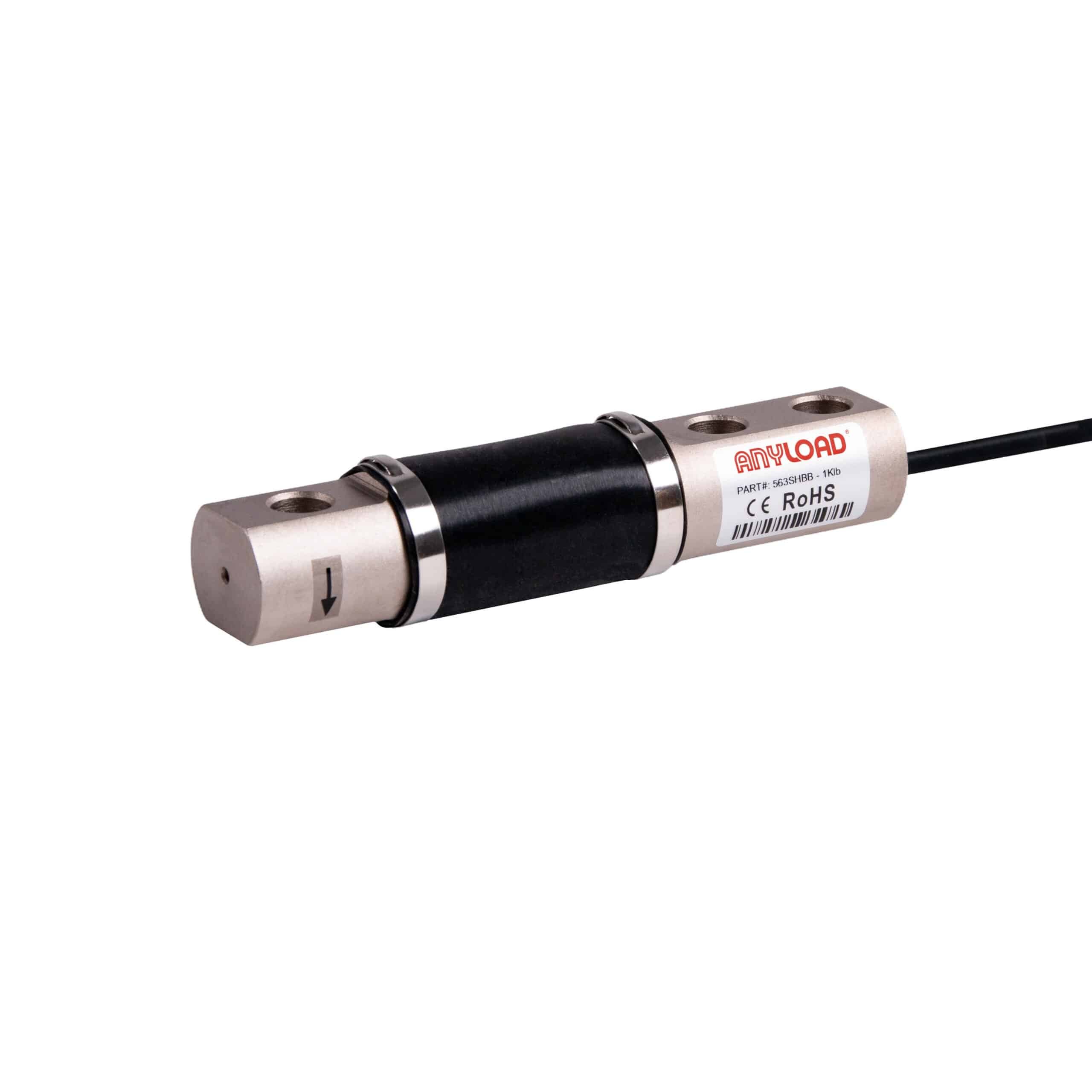

ANYLOAD 563SHBB Alloy Steel Single-Ended Beam Load Cell

$420.00$710.00

The ANYLOAD 563SHBB Alloy Steel Single-Ended Beam Load Cell delivers reliable and accurate weighing for a broad variety of industrial and technical weighing applications. Ingress protection rated IP65, it is available in 100lb to 2500lb rated capacities. See the ANYLOAD 563SH for similar load cell in smaller dimensions.

Other capacities and configurations available – please contact us with any questions.

Clear
SKU: 563SHBB Category:

ANYLOAD 563SHBB Key Features

  • Nickel-plated alloy steel material
  • Rated Capacities: 100lb, 250lb, 500lb, 1Klb, 2.5Klb
  • Full Scale Output: 2.0mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP65
  • CE, RoHS and Ex certified

Available options: 563SHBB-100lb, 563SHBB-250lb, 563SHBB-500lb, 563SHBB-1000lb, 563SHBB-2500lb
Contact us for any inquiries on load cell interfacing.

Specifications

ANYLOAD 563SHBB Load Cell Specifications

Rated Capacity 100lb, 250lb, 500lb, 1Klb, 2.5Klb
Full Scale Output 2.0mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Combine Error 0.03% of full scale
Non-linearity < ± 0.030%
Repeatability < ± 0.020%
Hysteresis Error < ± 0.030%
Creep in 30 minutes < ± 0.030%
Input Resistance CAP.=1Klb: 700Ω ± 20Ω; CAP.=2.5Klb: 350Ω ± 7Ω
Output Resistance CAP.=1Klb: 700Ω ± 5Ω; CAP.=2.5Klb: 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0030% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP65

Technical Documents

563SHBB Single-Ended Beam Load Cell Datasheet

CE Certificate of Conformity
RoHS Certificate of Conformity
Explosion Protection Certificate of Conformity

Interchangeable Cross Reference

ANYLOAD 563SHBB Interchangeable Cross Reference

Manufacturer Equivalent Model
Fairbanks 3-481XX-1
Fairbanks 3-48660-1
HBM BBS
Rice Lake RL40BBS
Vishay Sensortronics 65087
