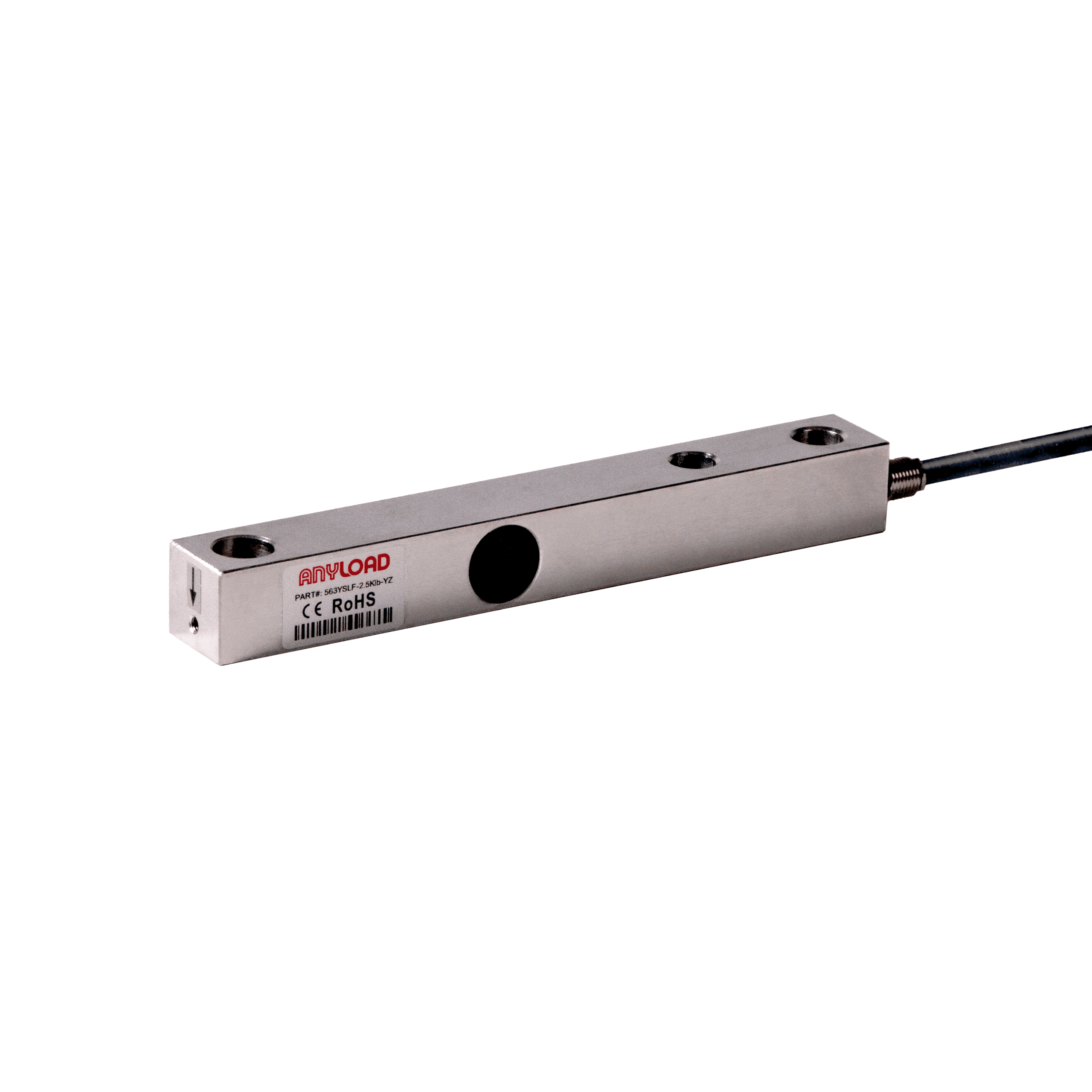

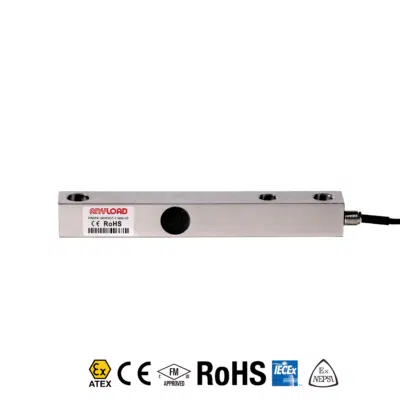

ANYLOAD 563YSLF Stainless Steel Single-Ended Beam Load Cell
The 563YSLF Single-Ended Beam Load Cell is a durable, stainless steel IP67-rated weighing solution, offering water and corrosion resistance for reliable performance. Ideal for floor, tank, hopper, and platform scales, this model is interchangeable with Fairbanks 3-53581-X and Cardinal BLF. Available in 1.5Klb to 5Klb capacities, it provides cost-effective precision for a variety of applications. Other configurations may be available upon request—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $414.00 |
10-24 | 10 - 24 | 5% $393.30 |
25-49 | 25 - 49 | 8% $380.88 |
50-99 | 50 - 99 | 11% $368.46 |
100+ | 100 + | 15% $351.90 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YSLF Features
The 563YSLF Single-Ended Beam Load Cell is a robust and reliable stainless steel weighing solution, featuring IP67-rated water and corrosion resistance for demanding environments. Designed for compression applications, it is ideal for use in floor scales, tank scales, hopper scales, and platform scales. This model is interchangeable with Fairbanks 3-53581-X and Cardinal BLF, ensuring versatility and cost-effectiveness. Constructed from environmentally sealed 2Cr13 stainless steel, the 563YSLF load cell is available in capacities ranging from 1.5Klb to 5Klb, with other configurations potentially available upon request. For those seeking durable and accurate performance in medium-capacity applications, the 563YSLF offers an excellent solution.
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 1.5Klb, 2.5Klb, 5Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex Certified
Available Options: 1.5Klb, 2.5Klb & 5Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YSLF Load Cell Specifications
Rated Capacity | 1.5Klb, 2.5Klb, 5Klb |
Full-Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.030% |
Repeatability | < ± 0.023% |
Hysteresis Error | < ± 0.020% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 1000Ω ± 15Ω |
Output Resistance | 1000Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
3D Drawing
563YSLF-(1.5-2.5)klb | |
563YSLF-5klb |
Interchangeable Cross Reference
ANYLOAD 563YSLF Equivalents
Manufacturer | Equivalent Model |
Coti Global | CG-BLF |
HBM | BLF |
Fairbanks | 3-53581-X |
Fairbanks | 3-52921-1 |
