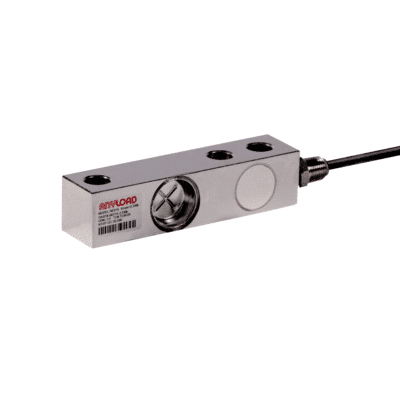

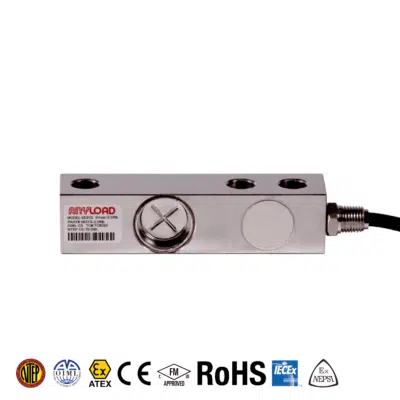

ANYLOAD 563YS Stainless Steel Single-Ended Beam Load Cell
The 563YS Single-Ended Beam Load Cell is a reliable, low-profile weighing solution with stainless steel welded-seal construction and IP68 water and corrosion resistance. It’s easy to install and interchangeable with models from VPG, Rice Lake, HBM, and Coti Global, making it ideal for platform, hopper, and tank scales, as well as process weighing. This product is like the ANYLOAD 563YS30 but with an FSO of 2mV/V. An installation module is available for this product to compensate for side and lift forces and facilitate proper loading.
The 563YS is available in 500lb-20Klb options, with metric capacities and other configurations available upon request—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $330.00 |
| 10 - 24 | $313.50 |
| 25 - 49 | $303.60 |
| 50 - 99 | $293.70 |
| 100 + | $280.50 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YS Features
The 563YS Single-Ended Beam Load Cell is a robust and reliable weighing solution, featuring stainless steel welded-seal construction with an IP68 rating for water and corrosion resistance. Its low-profile design is easy to install and is compatible with VPG, Rice Lake, HBM, and Coti Global models, making it a versatile choice for various applications, including platform scales, hopper scales, tank scales, and process weighing. With a Full-Scale Output (FSO) of 2mV/V, this cost-effective load cell is frequently used in OEM applications where precision and durability are essential. To ensure optimal performance, an optional 563YSM3 compression weight module is available, offering easy installation, thermal expansion allowance, and protection from irregular loading and lifting forces. This makes the 563YS an excellent choice for industrial weighing needs where reliability and ease of installation are paramount.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
- CE, RoHS, and Ex Certified
- ATEX, FM, and IECEx available upon request
Available Options: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb & 20Klb.
Installation modules: ANYLOAD 563YSM2, 563YSM3
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YS Load Cell Specifications
| Rated Capacity | 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 250kg, 500kg, 1t, 2t, 3t, 5t, 10t |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
3D Drawing
 |
563YS-(250-2000)kg |
|
563YS-(500-4000, SE5000)lb |
|
563YS-(5-10)klb |
|
563YS-(15-20)klb |
|
563YS-(3-5)t |
|
563YS-10t |
Interchangeable Cross Reference
ANYLOAD 563YS Equivalents
| Manufacturer | Equivalent Model |
| Cardinal | TB* |
| Coti Global | CG-23-SSW-02 |
| Rice Lake | RL35082 |
| Rice Lake | RLHTO |
| Vishay Sensortronics | 65083S |
| Vishay Tedea-Huntleigh | 3510-kg |
* TB has metric thread (M12 x 1.75). Installation and thread from the top
