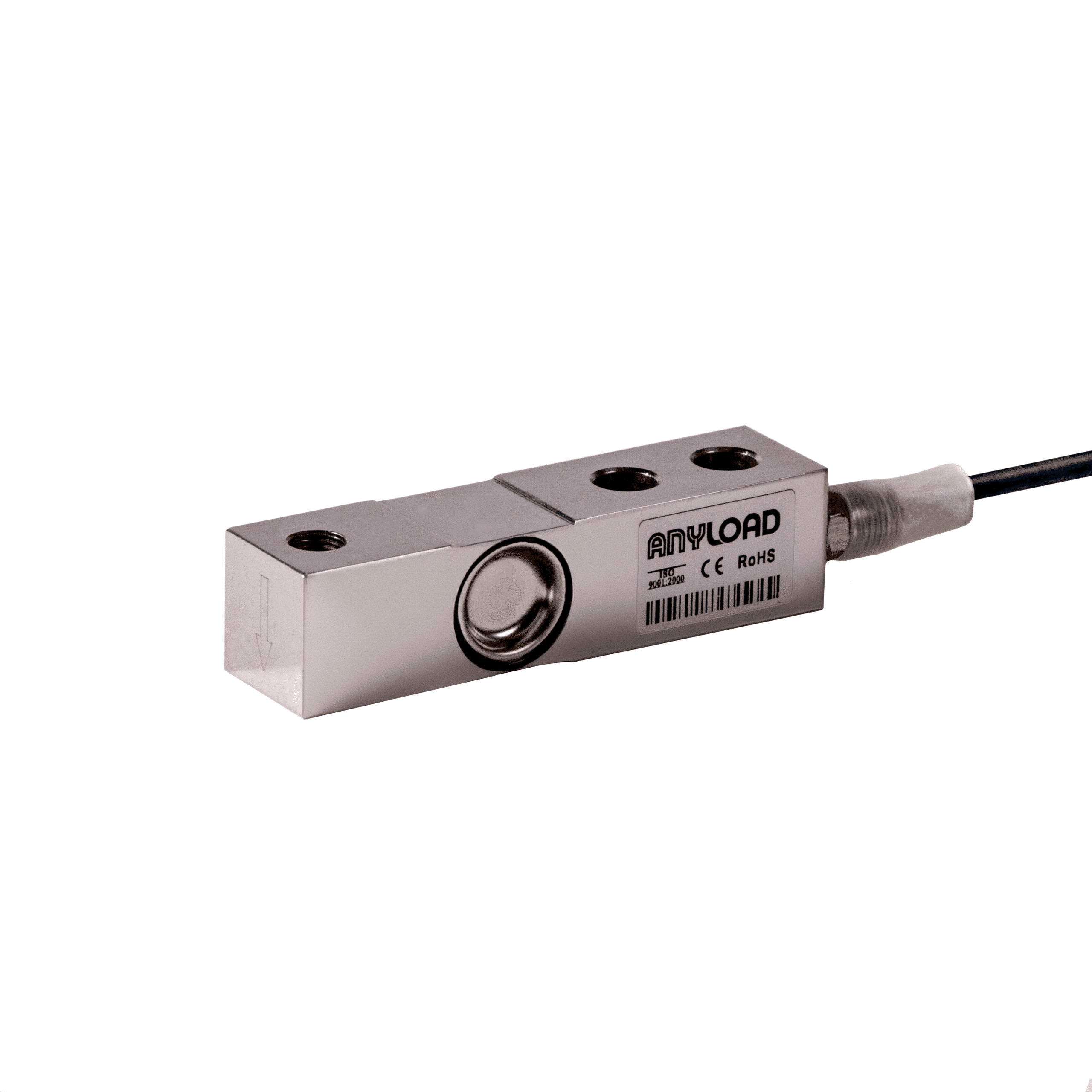

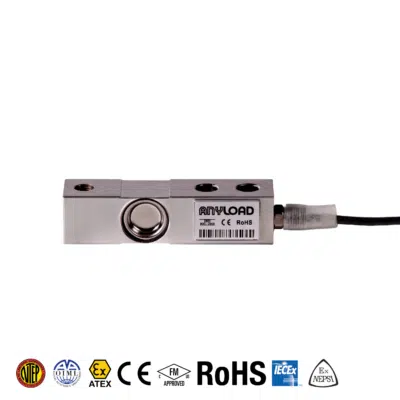

ANYLOAD 563YSGS Stainless Steel Single-Ended Beam Load Cell
The compact ANYLOAD 563YSGS Single-Ended Beam Load Cell, featuring IP67-rated glue-sealed stainless steel construction, is designed for rugged conditions. Ideal for lower to medium-capacity applications like platform and hopper scales, it is available in 1Klb-4Klb options, with other configurations available upon request—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $296.00 |
| 10 - 24 | $281.20 |
| 25 - 49 | $272.32 |
| 50 - 99 | $263.44 |
| 100 + | $251.60 |
ANYLOAD 563YSGS Features
The ANYLOAD 563YSGS Single-Ended Beam Load Cell is a compact, low-profile solution designed for lower to medium-capacity applications, such as platform and hopper scales. Its cost-effective design, combined with the rugged durability of glue-sealed stainless steel construction, ensures reliable performance in demanding environments. With an IP67 ingress protection rating, this load cell is water resistant, making it ideal for use in harsh conditions. It is available in capacities ranging from 1Klb to 4Klb, with additional configurations offered upon request. For more information or to explore custom options, please contact us.
- Material: Stainless Steel
- Rated Capacities: 1Klb, 2.5Klb, 4Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
- CE, RoHS, and Ex certified
Available Options: 1Klb, 2.5Klb, & 4Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YSGS Load Cell Specifications
| Rated Capacity | 1Klb, 2.5Klb, 4Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400Ω ± 20Ω for kg; 350Ω ± 7Ω for lb |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
563YSGS Single-Ended Beam Load Cell Datasheet |
 |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 563YSGS Equivalents
| Manufacturer | Equivalent Model |
| Rice Lake | RL35023S |
| Rice Lake | RL39123 |
| Vishay Sensortronics | 65023S |
| Vishay Revere Transducers | 9123 |
