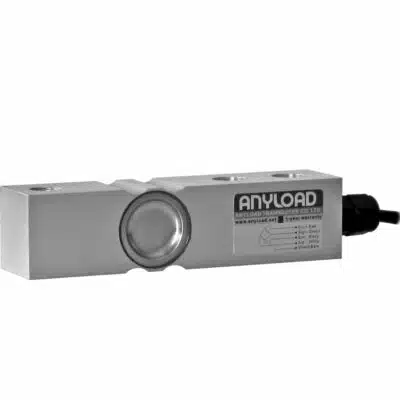

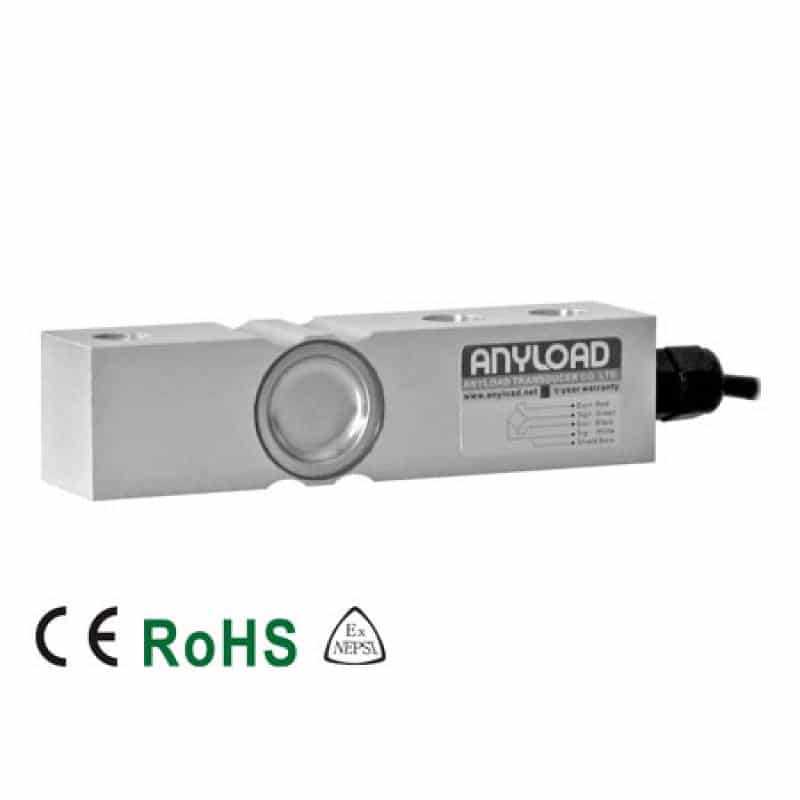

ANYLOAD 563YA Aluminum Single-Ended Beam Load Cell
The 563YA Aluminum Single-Ended Beam Load Cell is a cost-effective, low-profile compression weighing solution with high side load, shock, and water resistance. Ideal for platform scales, pallet scales, and process weighing, it ensures accuracy and reliability in various applications. Interchangeable with Vishay Tedea-Huntleigh 3310, the 563YA offers IP67-rated protection and is stocked in a 300lb capacity, making it a versatile choice for industrial and technical force measurement needs.
Other aluminum load cell capacities and configurations are available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $162.00 |
10-24 | 10 - 24 | 5% $153.90 |
25-49 | 25 - 49 | 8% $149.04 |
50-99 | 50 - 99 | 11% $144.18 |
100+ | 100 + | 15% $137.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YA Features
The 563YA Aluminum Single-Ended Beam Load Cell is a cost-effective and reliable compression weighing solution designed for a wide range of industrial and technical applications. Its low-profile design ensures high side load and shock resistance, making it ideal for platform scales, pallet scales, process weighing, and other environments where accuracy and durability are essential. The 563YA load cell features IP67-rated ingress protection, providing excellent water resistance and ensuring long-lasting performance in demanding conditions. Interchangeable with the Vishay Tedea-Huntleigh 3310, this load cell is available in a 300lb capacity, offering a versatile and dependable option for precise force measurement needs.
- Material: Aluminum, Clear Anodized
- Rated Capacity: 200lb, 300lb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex Certified
Available Options: 200lb & 300lb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YA Load Cell Specifications
Rated Capacity | 200lb, 300lb |
Full-Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
563YA Single-Ended Beam Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
563YA-(200-300)lb |
Interchangeable Cross Reference
ANYLOAD 563YA Equivalent
Manufacturer | Equivalent Model | Info |
Vishay Tedea-Huntleigh | 3310 | Interchangeable with Vishay Tedea-Huntleigh 3310 imperial thread |
