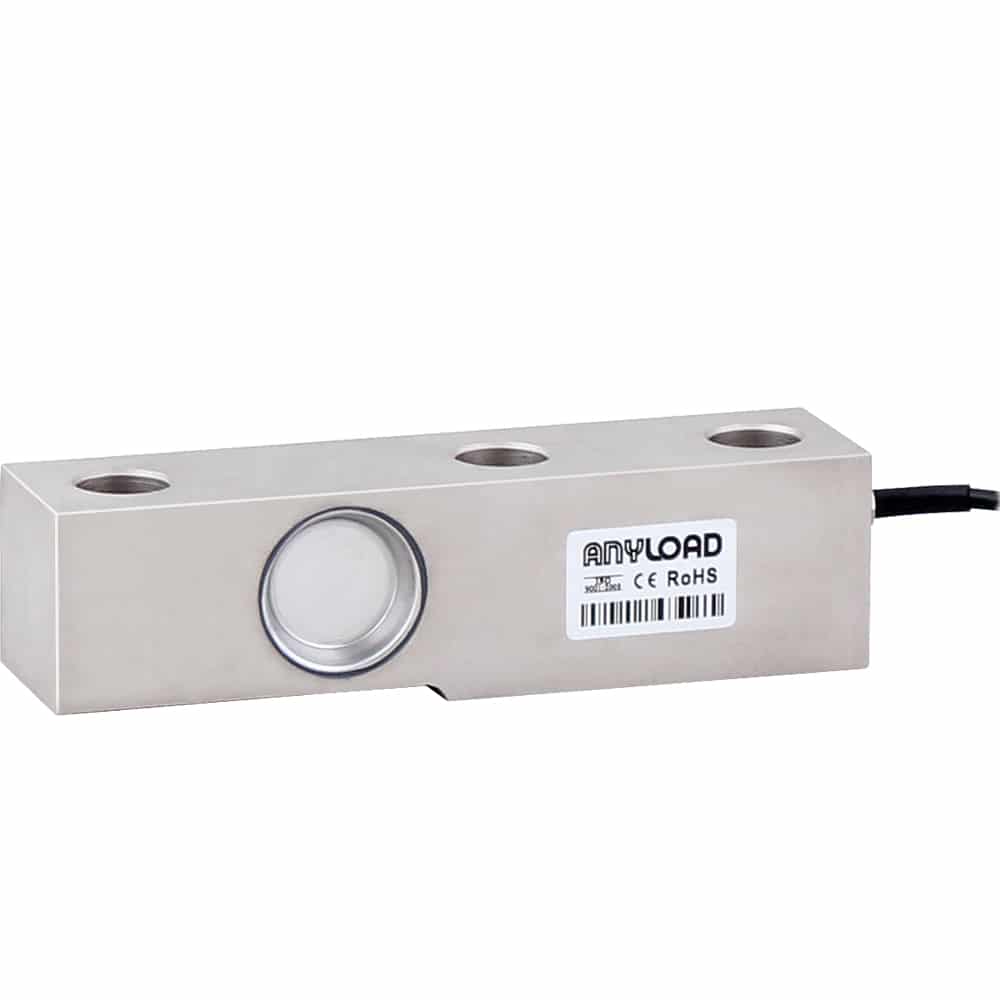

ANYLOAD 563YHFK Alloy Steel Single-Ended Beam Load Cell
The 563YHFK Single-Ended Beam Load Cell is a reliable, accurate, and cost-effective weighing solution with IP67-rated water resistance. Made from environmentally sealed, nickel-plated alloy steel, it is ideal for lower to medium-capacity applications such as platform scales, hopper scales, and check weighing. Interchangeable with Kelba models (KA125N up to KA10000N), it offers versatile performance across a wide range of industrial uses.
Other capacities and configurations are available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $324.00 |
| 10 - 24 | $307.80 |
| 25 - 49 | $298.08 |
| 50 - 99 | $288.36 |
| 100 + | $275.40 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YHFK Features
The 563YHFK Single-Ended Beam Load Cell is a versatile and cost-effective weighing solution designed for lower to medium-capacity applications. Constructed from environmentally sealed, nickel-plated alloy steel, this load cell provides reliable and accurate performance with an ingress protection rating of IP67, ensuring water resistance and durability in demanding environments. It is ideal for use in platform scales, hopper scales, check weighing, and other industrial and technical weighing applications. The 563YHFK is interchangeable with Kelba models (KA125N up to KA10000N), offering flexible compatibility across various systems. This load cell delivers precision and reliability, making it a dependable choice for a wide range of weighing needs.
- Material: Alloy Steel
- Rated Capacities: 125kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t
- Full Scale Output: 2.2mV/V ± 0.25% or 2.2mV/V ± 0.05%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP, NCE, RoHS, and Ex Certified
Available Options: 125kg, 250kg, 500kg, 1t, 2.5t, 5t & 10t.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YHFK Load Cell Specifications
| Rated Capacity | 125kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t |
| Full-Scale Output (500kg and 10t) | 2.2mV/V ± 0.25% |
| Full-Scale Output (1t-5t) | 2.2mV/V ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 380Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
563YHFK Single-Ended Beam Load Cell Datasheet |
 |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 563YHFK Equivalents
| Manufacturer | Equivalent Model | ANYLOAD Part No. |
| Kelba | KA125N | 563YHFK-125kg |
| Kelba | KA250N | 563YHFK-250kg |
| Kelba | KA500N | 563YHFK-500kg |
| Kelba | KA1000N | 563YHFK-1t |
| Kelba | KA2500N | 563YHFK-2.5t |
| Kelba | KA5000N | 563YHFK-5t |
| Kelba | KA10000N | 563YHFK-10t |
