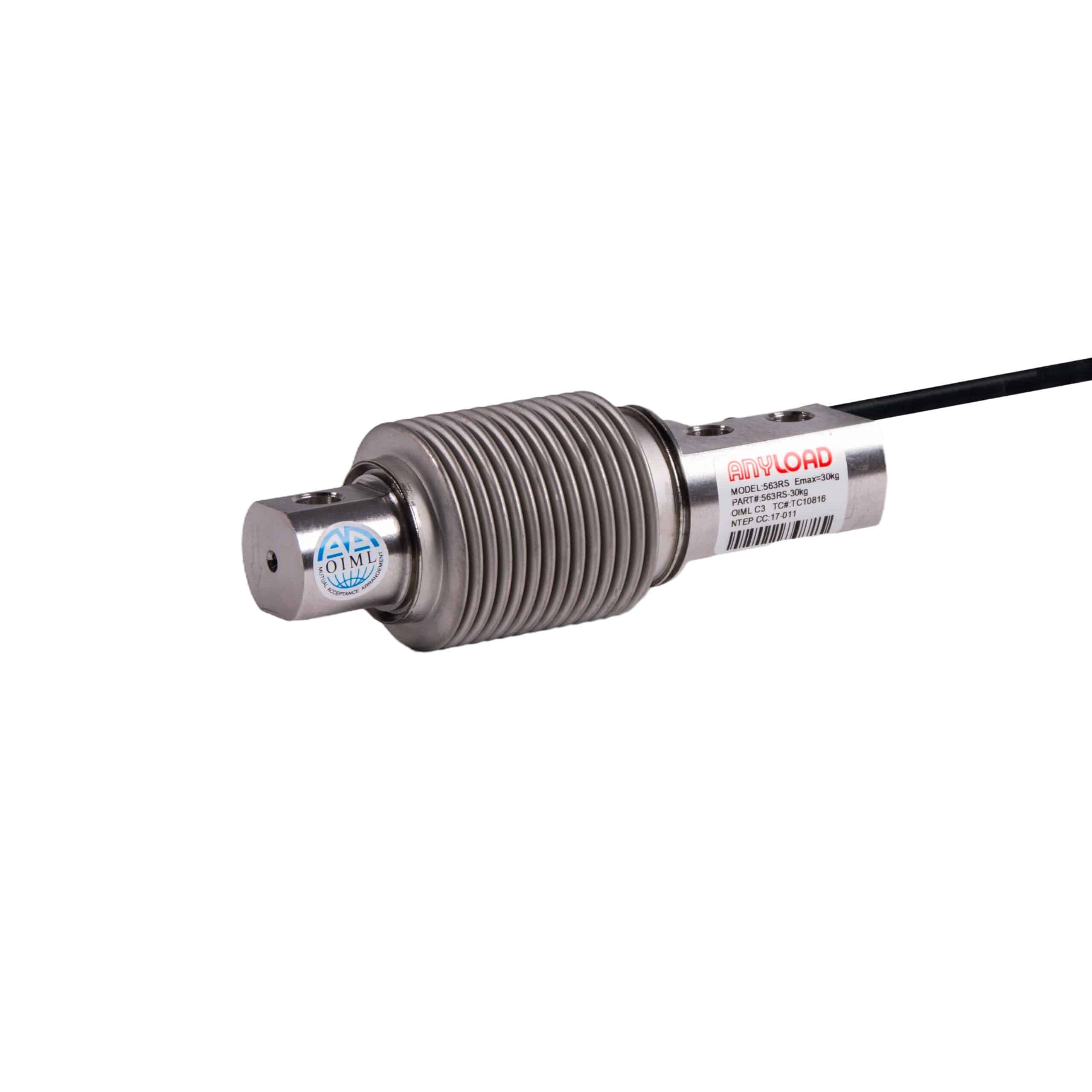

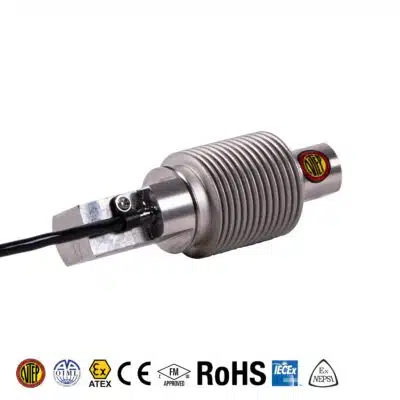

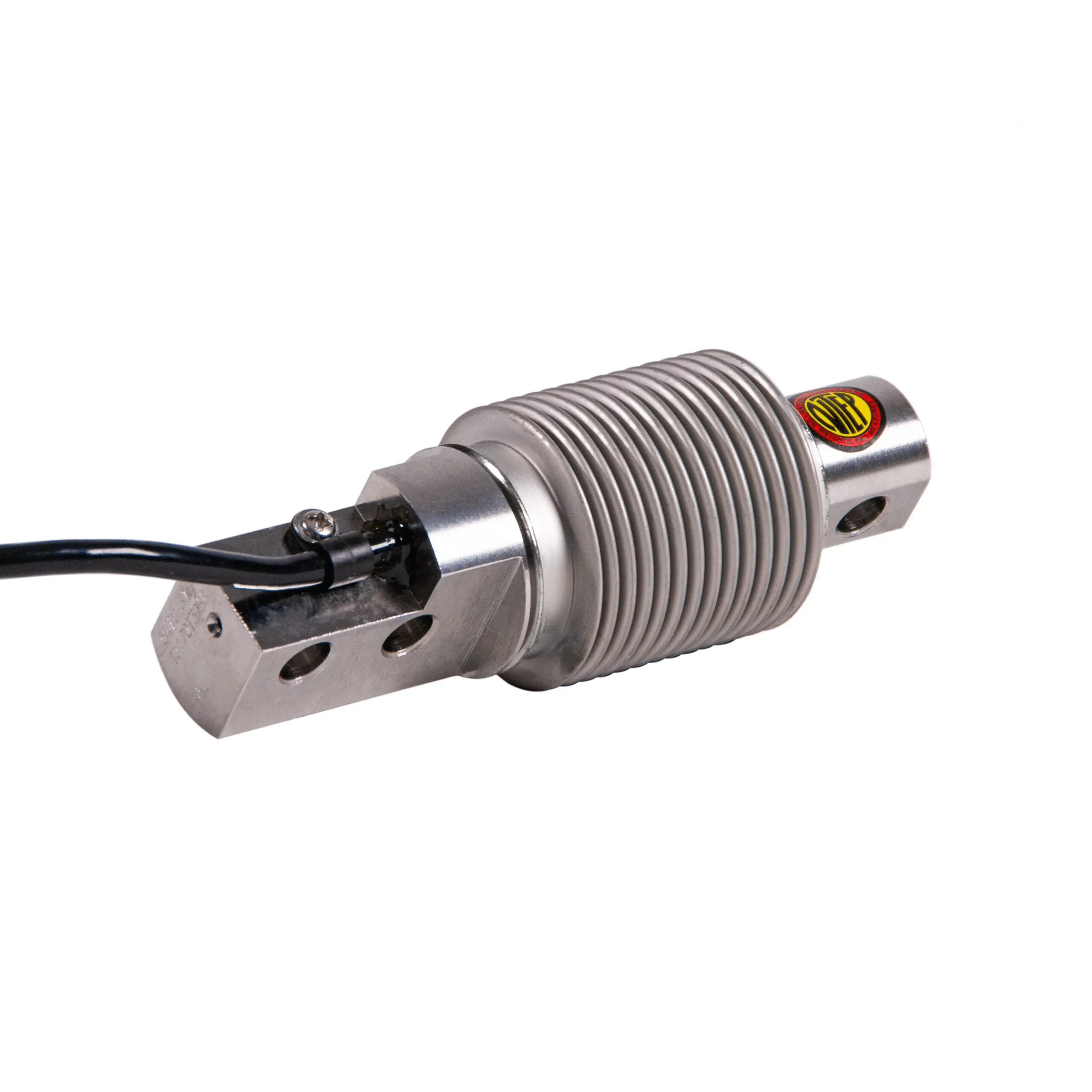

ANYLOAD 563RS Stainless Steel Single-Ended Beam Load Cell
The ANYLOAD 563RS load cell is a highly reliable and versatile solution, widely used in applications such as tank weighing, batching scales, and platform scales. Its IP68-rated stainless steel construction offers superior water and corrosion resistance, ensuring durability in harsh industrial environments. The 563RS is interchangeable with models like Coti Global CG-Z6, Rice Lake RLHBB, and Vishay Revere SHB. When paired with the ANYLOAD 563RSM5 weigh module, it delivers precise and dependable compression weighing.
This product meets NTEP and common international safety standards.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $428.00 |
10-24 | 10 - 24 | 5% $406.60 |
25-49 | 25 - 49 | 8% $393.76 |
50-99 | 50 - 99 | 11% $380.92 |
100+ | 100 + | 15% $363.80 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563RS Features
The ANYLOAD 563RS load cell is a highly reliable and versatile solution, widely used in applications such as tank weighing, batching scales, and platform scales. Its time-tested design, combined with IP68-rated washdown water- and corrosion-resistant stainless steel construction, ensures the highest level of ingress protection, making it ideal for harsh industrial environments. The 563RS is compatible with several other models, including the Coti Global CG-Z6, Rice Lake RLHBB, and Vishay Revere SHB. When paired with the ANYLOAD 563RSM5 weigh module, this single-ended beam load cell delivers accurate and reliable compression weighing. This combination makes the 563RS a preferred choice for demanding industrial applications around the world.
- Material: Stainless Steel
- Rated Capacities: 5kg,10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kg
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP, CE, RoHS, and Ex Certified
Available Options: 5kg,10kg, 20kg, 50kg, 100kg, 200kg, 350kg & 500kg.
Installation Module: ANYLOAD 563RSM5
Contact us with any product-related questions.
Specifications
ANYLOAD 563RS Load Cell Specifications
Rated Capacity | 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 350kg, 500kg |
Full-Scale Output | 2mV/V ± 0.25% |
Zero Balance | Cap.<20kg: ± 0.05mV/V/ Cap. >20kg:± 0.02mV/V |
Deflection at Emax | 0.27mm-0.33mm |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 400Ω ±20Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Sealed |
IP Rating | IP68 |
Technical Documents
563RS Single-Ended Beam Load Cell Datasheet | |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
563RS-200kg | |
563RS-(350-500)kg |
Interchangeable Cross Reference
ANYLOAD 563RS Equivalents
Manufacturer | Equivalent Model |
Cardinal | CB6 |
Coti Global | CG-Z6 |
Flintec | SB8 |
HBM | Z6 |
Mettler Toledo | MTB |
Rice Lake | RLHBB |
Vishay Celtron | HBB |
Vishay Revere Transducers | SHB |
Vishay Tedea-Huntleigh | 355 |
