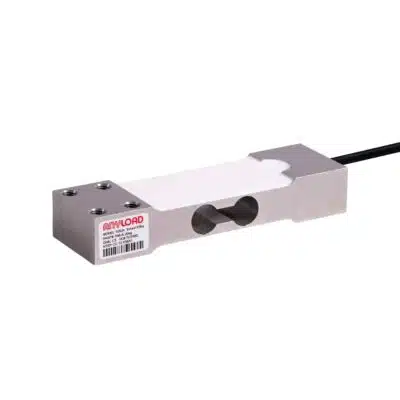

ANYLOAD 108JA Aluminum Single Point Load Cell
The ANYLOAD 108JA Aluminum Single Point Load Cell is an NTEP and OIML-certified, IP66 water-resistant load cell designed for high accuracy and cost-effective compression weighing. Ideal for a wide range of applications, including small platform scales, counting scales, bench scales, postal scales, and medical devices, this load cell is resistant to torque and unbalanced loading. Available in capacities from 20kg to 2000kg, it provides reliable performance in environments where accuracy is crucial. Its aluminum construction ensures durability and compliance with leading industry safety standards.
Other capacities and configurations may be available—please Contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $178.00 |
10-24 | 10 - 24 | 5% $169.10 |
25-49 | 25 - 49 | 8% $163.76 |
50-99 | 50 - 99 | 11% $158.42 |
100+ | 100 + | 15% $151.30 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108JA Features
The ANYLOAD 108JA Aluminum Single Point Load Cell is an NTEP and OIML-certified, legal-for-trade load cell that offers high accuracy and cost-effective compression weighing for a wide range of applications. Designed with an IP66-rated water-resistant aluminum body, it provides robust protection against moisture and harsh environments. Its well-balanced design makes it highly resistant to torque and unbalanced loading, ensuring reliable performance in applications where accuracy is critical. The 108JA is ideal for use in small platform scales, counting scales, bench scales, postal scales, retail checkout scales, medical devices, airport baggage scales, and other settings with off-center loads. Available in capacities from 20kg to 2000kg, this versatile load cell meets leading industry safety standards and is well-suited for a variety of precision weighing needs.
- Material: Aluminum, Clear Anodized
- Cable Length: 2m
- Rated Capacities: 20kg, 50kg, 60kg, LE60kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 20kg-500kg capacities: NTEP 1:5 000 Class III, Single Cell
- 20kg-30kg capacities: OIML MAA C7.5, Y=20 000;
- 50kg-500kg capacities: OIML MAA C6, Y=29 000;
- SE600kg-2t capacities: NTEP 1:4 000 Class III, Single Cell; OIML MAA C4, Y=4 000
- CE and RoHS Certified
Available Options: 20kg, 50kg, 75kg, 100kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg, 150kg, 200kg, 300kg, 400kg, 500kg, 1t, 1.5t & 2t.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108JA Load Cell Specifications
Rated Capacity | 20kg, 50kg, 60kg, LE60kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t |
Reference Max. Platform Size = 100kg | 460mm x 600mm |
Reference Max. Platform Size = 150kg – 400kg | 600mm x 600mm |
Reference Max. Platform Size = 500kg | 900mm x 900mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.017% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
ANYLOAD 108JA Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
108JA-(20-100)kg | |
108JA-LE(60-100)-SE(150-400)kg | |
108JA-(150-400)-SE600-kg | |
108JA-(500-2000)kg |
Interchangeable Cross Reference
ANYLOAD 108JA Equivalents
Model | Anyload Model |
---|---|
108JA-LE60kg | 108LA-60kg |
108JA-LE100kg | 108LA-100kg |
108JA-SE150kg | 108LA-150kg |
108JA-SE200kg | 108LA-200kg |
108JA-SE300kg | 108LA-300kg |
108JA-50kg | 651JS-50kg* |
108JA-75kg | 651JS-75kg* |
108JA-LE75kg | 651JS-75kg* |
108JA-SE200kg | 651JS-200kg* |
108JA-SE400kg | 651JS-400kg* |
* Most dimensions are the same, except overall height (H on the drawing): 651JS all capacities at 49mm(1.9inch), while 108JA-50kg & 108JA-75kg 25mm(0.98inch), 108JA-LE75kg, 108JA-SE200kg, 108JA-SE400kg 40mm(1.57inch)
