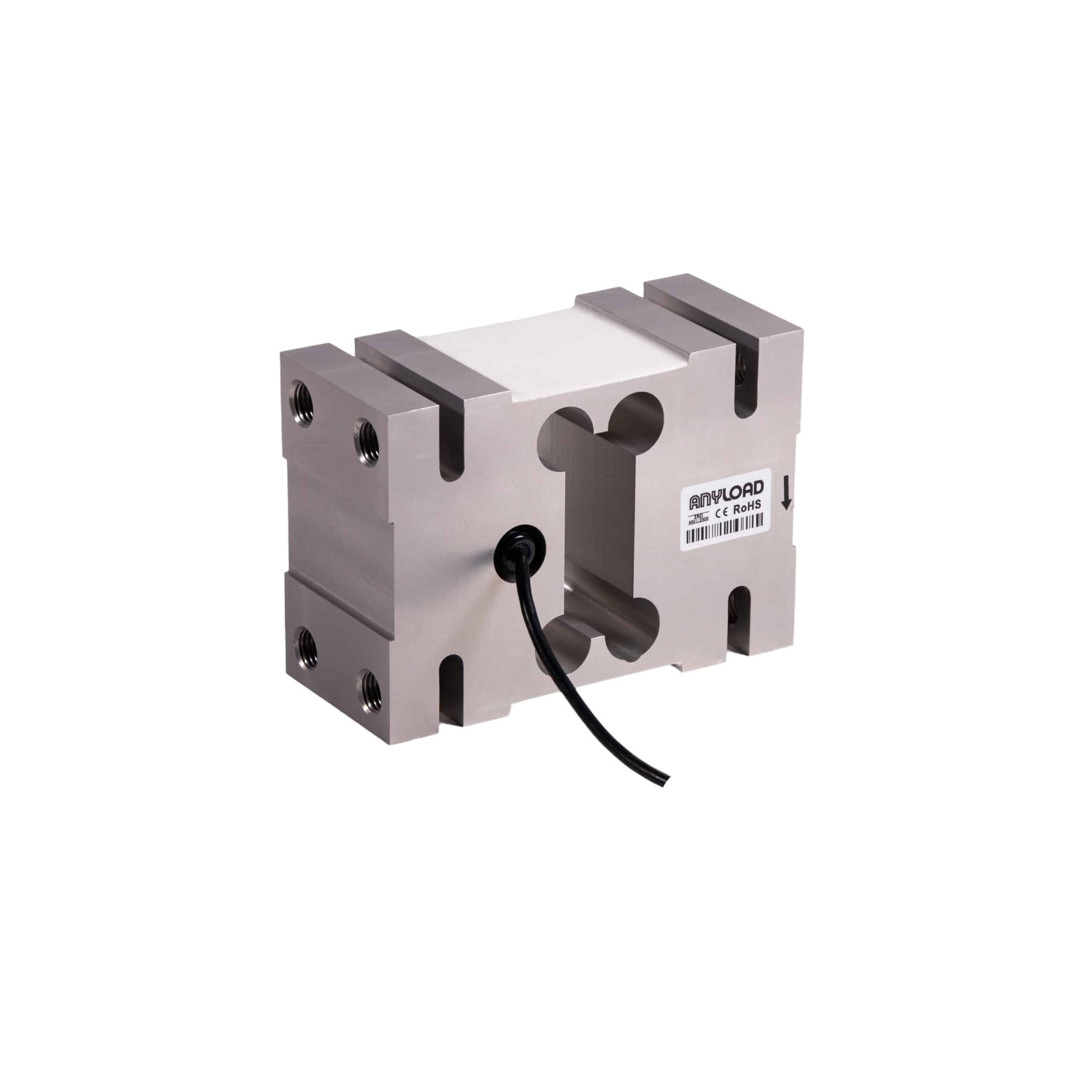

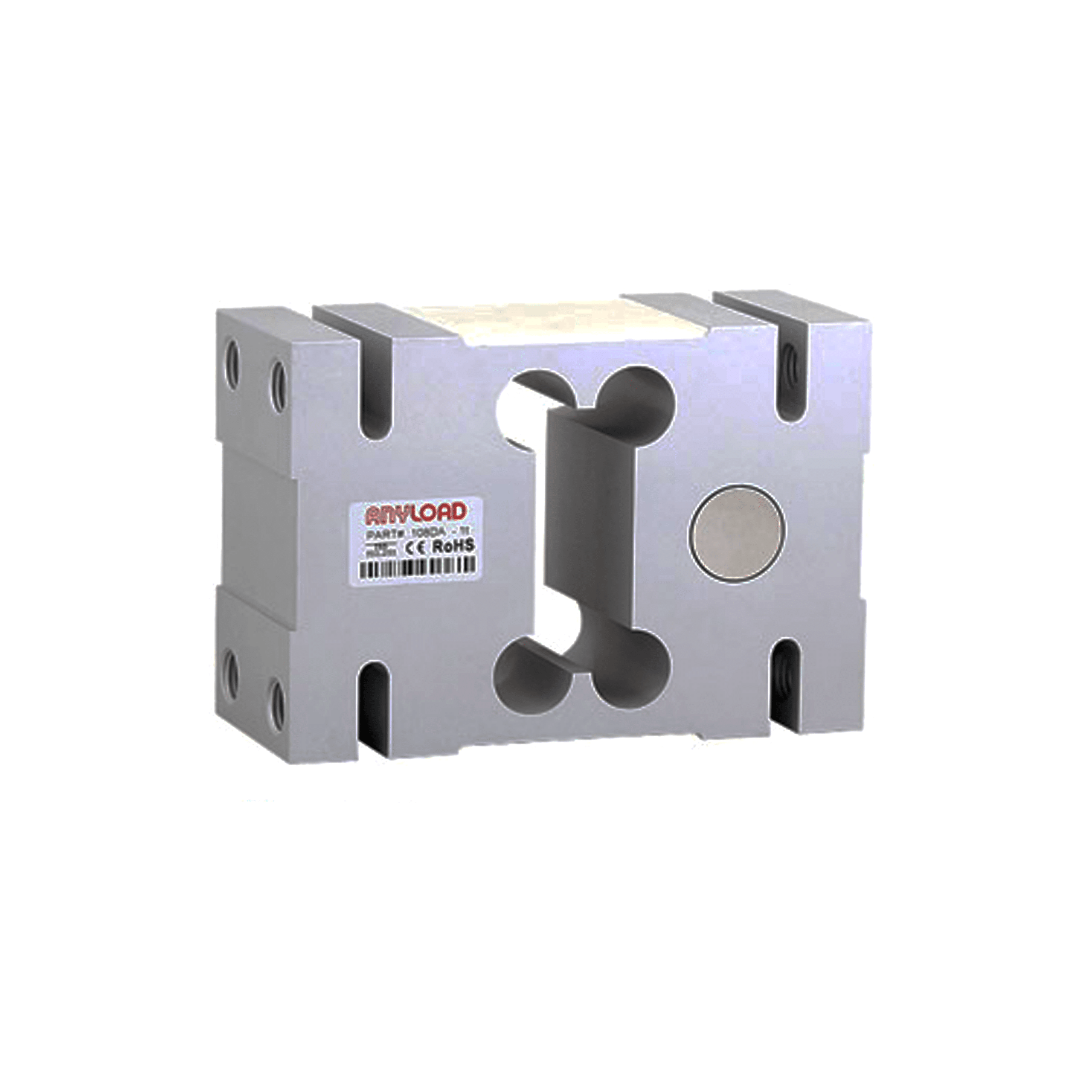

ANYLOAD 108DA Aluminum Single Point Load Cell
The ANYLOAD 108DA Single Point Load Cell is a heavy-duty, reliable solution for medium to high-capacity weighing applications, particularly where off-center loads are involved. With capacities from 500kg to 2000kg, it features an IP66-rated aluminum body and is easy to install. This model is interchangeable with other popular load cells and is OIML and NTEP certified, ensuring it meets industry safety standards.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $418.00 |
10-24 | 10 - 24 | 5% $397.10 |
25-49 | 25 - 49 | 8% $384.56 |
50-99 | 50 - 99 | 11% $372.02 |
100+ | 100 + | 15% $355.30 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108DA Features
The ANYLOAD 108DA Single Point Load Cell is a robust and versatile solution designed for medium to high-capacity weighing applications, particularly those involving off-center loads. Available in capacities ranging from 500kg to 2000kg, this load cell is crafted from durable aluminum and features an IP66 ingress protection rating, ensuring reliable performance in challenging environments. Each load cell is individually adjusted to minimize corner errors, making it an ideal choice for platform scales, floor scales, bench scales, check weighing, process weighing, and hanging scales. The 108DA is easy to install and is interchangeable with Vishay Tedea-Huntleigh 1320, Celtron HOC, and Flintec PC81 models. Additionally, this load cell is OIML and NTEP certified, meeting industry-leading safety and accuracy standards.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 500kg, 800kg, 1t, 1.5t, 2t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:6 000 Class III, Single Cell
- OIML MAA C6, Y=15 000 M
- CE and RoHS-certified
Available Options: 500kg, 1t, 1.5t & 2t.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108DA Load Cell Specifications
Rated Capacity | 500kg, 800kg, 1t, 1.5t, 2t |
Reference Max. Platform Size | 1200mm X 1200mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108DA Aluminum Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
108DA-(500-2000)kg |
Interchangeable Cross Reference
ANYLOAD 108DA Equivalents
Manufacturer | Equivalent Model |
Vishay Celtron | HOC |
Vishay Tedea-Huntleigh | 1320 |
Flintec | PC81 |
