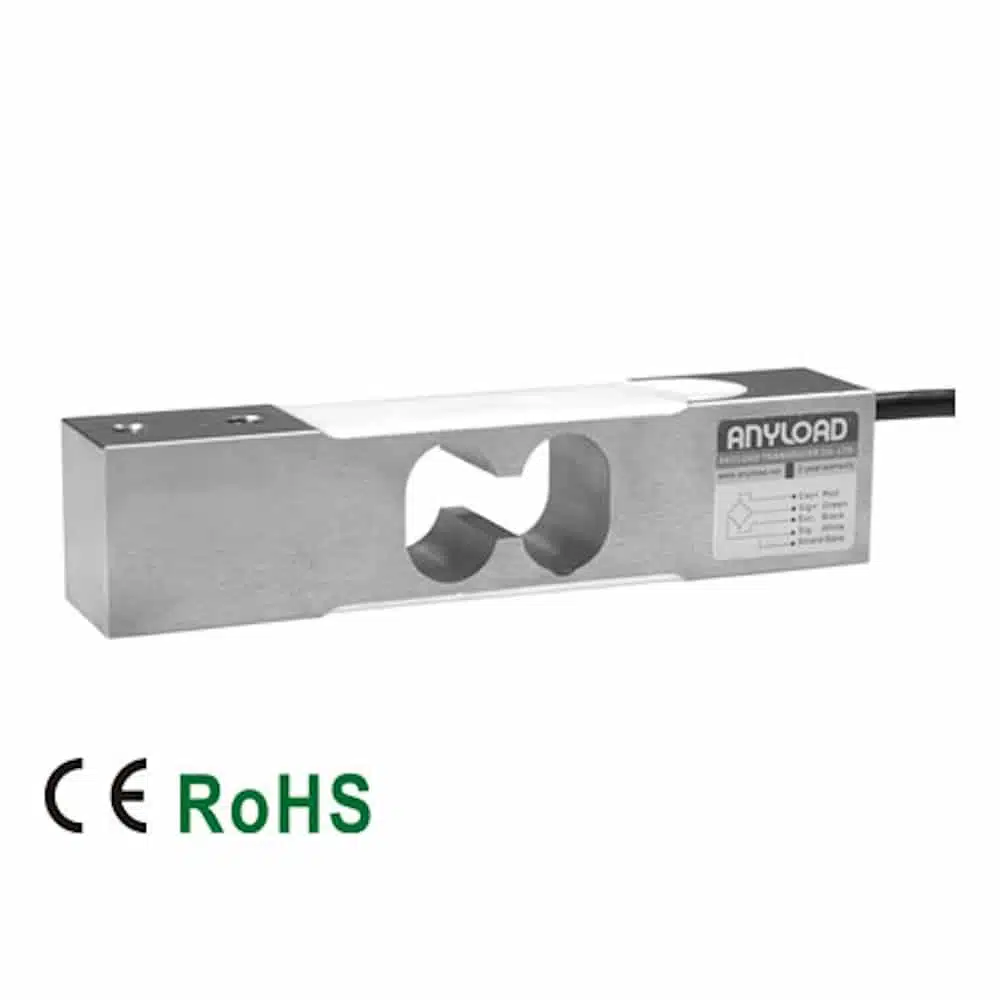

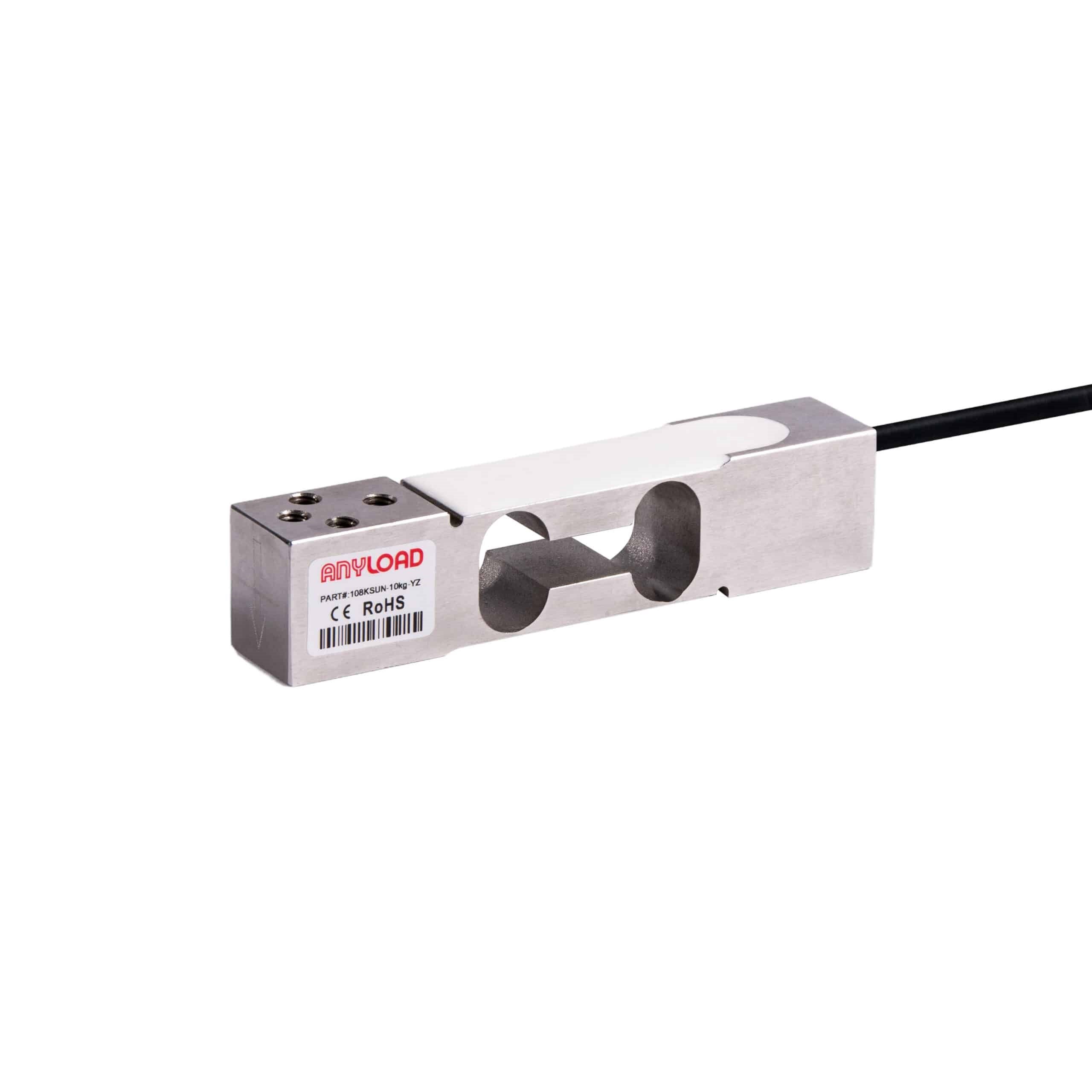

ANYLOAD 108KSUN Stainless Steel Single Point Load Cell

$233.00

The ANYLOAD 108KSUN Single Point Load Cell is suitable for a broad range of industrial weighing applications. It is environmentally sealed 2Cr13 stainless steel with an IP66 ingress protection rating. This product has imperial threads for mounting; see the ANYLOAD 108KS for metric threads.

Other capacities and configurations available—please contact us with any questions.

Clear
SKU: 108KSUN-YZ Category:

ANYLOAD 108KSUN Key Features

  • 2Cr13 Stainless steel
  • Thread: Imperial
  • Rated Capacities: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified

Available options: 108KSUN-4kg-YZ, 108KSUN-7kg-YZ, 108KSUN-10kg-YZ, 108KSUN-15kg-YZ, 108KSUN-20kg-YZ, 108KSUN-30kg-YZ, 108KSUN-50kg-YZ, 108KSUN-75kg-YZ, 108KSUN-100kg-YZ, 108KSUN-150kg-YZ

Please contact us with any product interfacing inquiries.

Specifications

ANYLOAD 108KSUN Load Cell Specifications

Rated Capacity 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

Technical Documents

108KSUN Stainless Steel Single Point Load Cell Datasheet
CE Certificate of Conformity
RoHS Certificate of Conformity

Interchangeable Cross Reference

ANYLOAD 108KSUN Interchangeable Cross Reference

Manufacturer Equivalent Model  Info
Coti Global CG-1130
Vishay Tedea-Huntleigh 1130 Vishay Tedea-Huntleigh 1130 has a 1/4″-20UNC mounting hole
Avery Weigh-Tronix MK29
