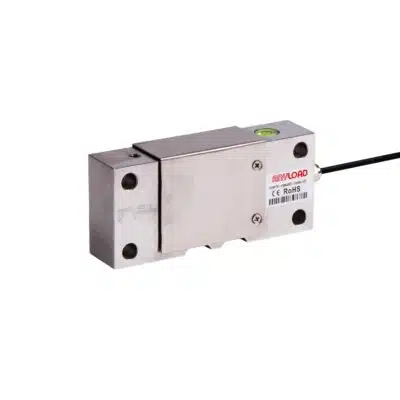

ANYLOAD 108QSFL Stainless Steel Single Point Load Cell
The 108QSFL is a rugged, stainless steel single-point load cell, designed for low-capacity weighing applications. It is corrosion and water-resistant with IP66-rated ingress protection, ensuring durability in harsh environments. This cost-effective model is interchangeable with Rice Lake RLFLS and Avery Weigh-Tronix FLS, and it maintains reliable performance even with uncentered loads. Available in a 250lb rated capacity, the 108QSFL is ideal for compact weighing needs.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $530.00 |
10-24 | 10 - 24 | 5% $503.50 |
25-49 | 25 - 49 | 8% $487.60 |
50-99 | 50 - 99 | 11% $471.70 |
100+ | 100 + | 15% $450.50 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108QSFL Features
The 108QSFL is a robust stainless steel single-point load cell, engineered for durability in low-capacity, compact weighing applications. Its corrosion and water-resistant design, combined with IP66-rated ingress protection, ensures reliable performance in harsh environments. Despite its simple and cost-effective design, the 108QSFL does not compromise on accuracy or durability, even when handling uncentered loads. Available in a 250lb rated capacity, this load cell is interchangeable with Rice Lake RLFLS and Avery Weigh-Tronix FLS, offering flexibility across various installations. The 108QSFL is an excellent choice for applications that demand both resilience and precision.
- Material: 12Cr13 Stainless steel
- Rated Capacities: 250lb
- Full-Scale Output: 1mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS-certified
- Note: not suitable for bench scale applications
Available Option: 250lb
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108QSFL Load Cell Specifications
Rated Capacity | 250lb |
Reference Max. Platform Size | 400mm x 450mm |
Full-Scale Output | 1mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.020% |
Repeatability | < ± 0.020% |
Hysteresis Error | < ± 0.020% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108QSFL Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
108QSFL-250lb |
Interchangeable Cross Reference
ANYLOAD 108QSFL Equivalents
Manufacturer | Equivalent Model |
Avery Weigh-Tronix | FLS |
Rice Lake | RLFLS |
