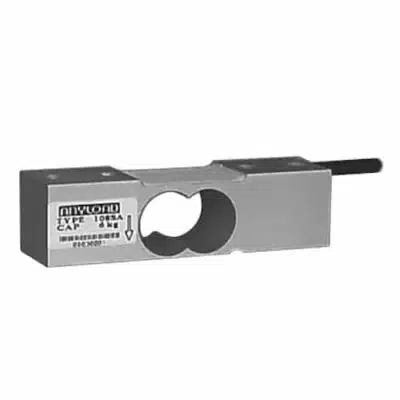

ANYLOAD 108SA Aluminum Single Point Load Cell
The ANYLOAD 108SA provides high accuracy for light, off-center weighing applications including process supervision systems, retail checkout, and postal scales. Its aluminum body offers an ingress protection rated IP66. This model meets leading industry safety standards.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $134.00 |
10-24 | 10 - 24 | 5% $127.30 |
25-49 | 25 - 49 | 8% $123.28 |
50-99 | 50 - 99 | 11% $119.26 |
100+ | 100 + | 15% $113.90 |
SKU: 108SA
Category: Single Point
ANYLOAD 108SA Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 6kg, 10kg, 15kg, 20kg, 30kg
- Full-Scale Output: 1.5mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS-certified
Available Options: 10kg & 15kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108SA Load Cell Specifications
Rated Capacity | 6kg, 10kg, 15kg, 20kg, 30kg |
Reference Max. Platform Size | 250mm x 250mm |
Full-Scale Output | 1.5mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.050% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.050% |
Creep in 30 minutes | < ± 0.020% |
Input Resistance | 1000Ω ± 3Ω |
Output Resistance | 1000Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0020% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108SA Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
108SA-(6-30)kg |
