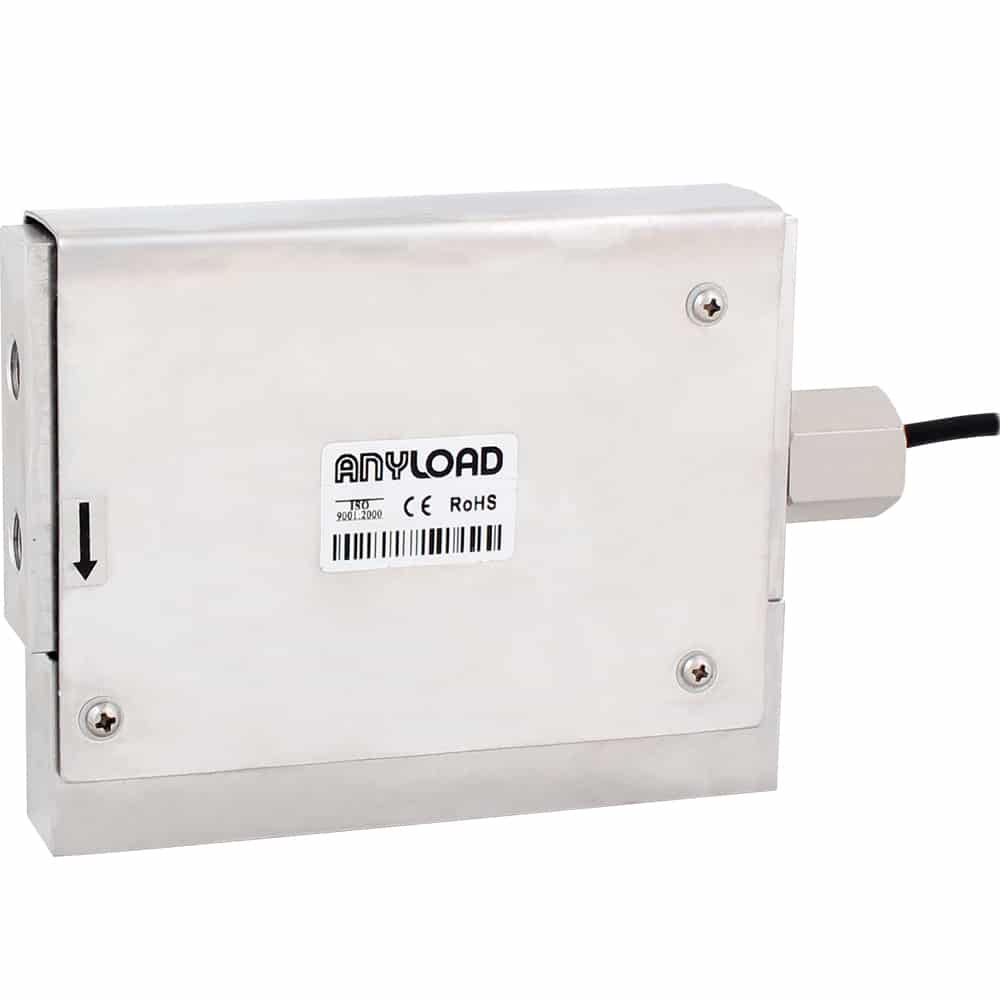

ANYLOAD 651PS Stainless Steel Single Point Load Cell

$1,220.00

The ANYLOAD 651PS Stainless Steel Single Point Load Cell is environmentally sealed and has an IP66 protection rating that enables it to withstand dust and washdown environments.

Other capacities and configurations available—please contact us with any questions.

Clear
SKU: 651PS Category:

ANYLOAD 651PS Key Features

  • 17-4PH Stainless steel
  • Rated Capacities: 50lb
  • Full Scale Output: 2.000 – 2.002mV/V
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66

Available options: 651PS-50lb

Please contact us with any product interfacing inquiries.

Specifications

ANYLOAD 651PS Load Cell Specifications

Rated Capacity 50lb
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 2.000 – 2.002mV/V
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.02%
Repeatability < ± 0.02%
Hysteresis Error < ± 0.02%
Creep in 30 minutes < ± 0.03%
Input Resistance 450Ω ± 100Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

Technical Documents

 651PS Stainless Steel Single Point Load Cell Datasheet
