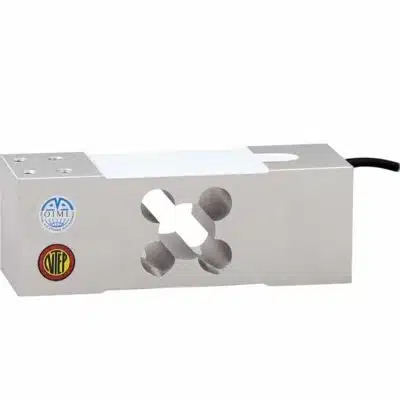

ANYLOAD 108CA Aluminum Single Point Load Cell
The ANYLOAD 108CA Single Point Load Cell is a high-performance, OIML C3 and NTEP-certified solution for lower to medium capacity applications ranging from 10kg to 1000kg. It offers excellent protection against irregular loading and is ideal for check weighing, platform scales, bench scales, and process weighing. With an IP66-rated aluminum body, it ensures reliable and accurate measurements and is interchangeable with other popular models for easy integration.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $220.00 |
| 10 - 24 | $209.00 |
| 25 - 49 | $202.40 |
| 50 - 99 | $195.80 |
| 100 + | $187.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108CA Features
The ANYLOAD 108CA Single Point Load Cell is an OIML C3 and NTEP-certified solution designed for high performance in lower to medium capacity applications, ranging from 10kg to 1000kg. Built with a durable aluminum body and rated IP66 for ingress protection, this load cell provides exceptional accuracy and reliability across various weighing tasks, including check weighing, platform scales, bench scales, and process weighing. The 108CA is engineered to offer excellent protection against irregular loading, making it a versatile and robust choice for demanding environments. Additionally, it is interchangeable with models such as Vishay Tedea-Huntleigh 1263, HBM PW24A, and Coti Global CG-50-2, ensuring compatibility with existing systems.
- Aluminum material; 2m cable
- Rated Capacities: 10kg, 20kg, 30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:4 000, Class III, Single Cell certified from 200kg-2t
- 10 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
- 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
- 500 kg up to & including 1t: Certified up to OIML MAA C4, Y=4000
- CE and RoHS-certified
Available Options: 10kg, 20kg, 30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, & 1t.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108CA Load Cell Specifications
| Rated Capacity | 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t |
| Reference Max. Platform Size | 600mm x 700mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP66 |
Technical Documents
 |
108CA Aluminum Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
 |
108CA-(10-1000)kg |
Interchangeable Cross Reference
ANYLOAD 108CA Equivalents
| Manufacturer | Equivalent Model |
| Coti Global | CG-50-2 |
| HBM | PW24A |
| Vishay Tedea-Huntleigh | 1263 |
