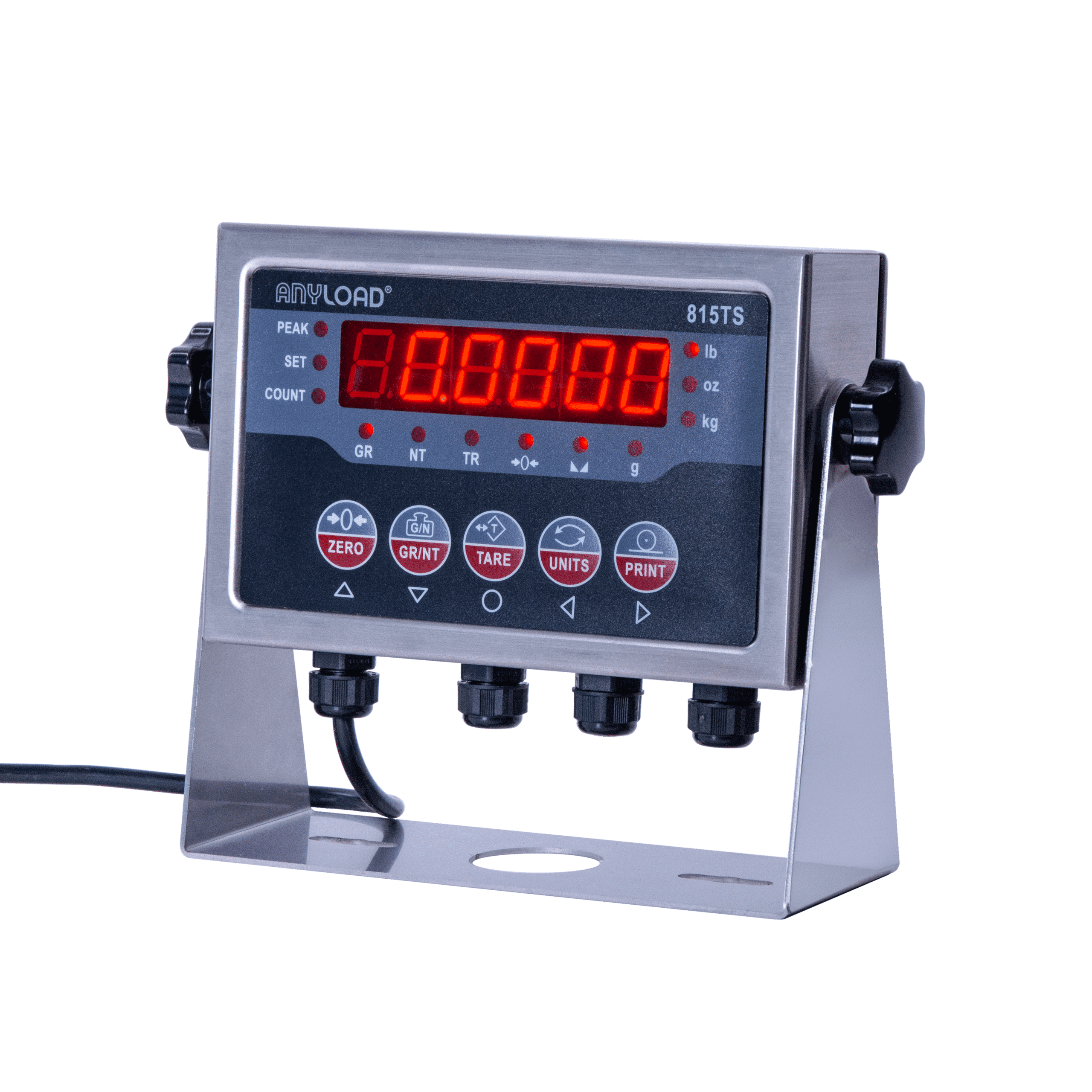

ANYLOAD 815TS Digital Weight Indicator
The ANYLOAD 815TS LED weight indicator is a high-accuracy, multi-function device designed for industrial, food, and agricultural applications. It supports up to eight 350Ω or sixteen 700Ω load cells through a junction box. The 815TS features a password-protected calibration menu, audit trail function, and advanced analog, digital, and average filtering. Encased in a heavy-duty SS304 stainless steel wash-down enclosure, it is IP66-rated for durability and reliability in harsh environments.
$710.00
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $710.00 |
10-24 | 10 - 24 | 5% $674.50 |
25-49 | 25 - 49 | 8% $653.20 |
50-99 | 50 - 99 | 11% $631.90 |
100+ | 100 + | 15% $603.50 |
ANYLOAD 815TS Digital Weight Indicator Features
The ANYLOAD 815TS LED weight indicator is a high-accuracy, multi-function industrial weighing device designed for reliability in various applications. It supports up to eight 350Ω or sixteen 700Ω load cells through a junction box, ensuring precise measurements. The 815TS features a password-protected calibration menu and electronic sealing via an audit trail function, enhancing security and traceability. Advanced analog, digital, and average filtering capabilities further improve measurement accuracy. Encased in a durable SS304 stainless steel wash-down enclosure, the 815TS is IP66-rated, making it ideal for food, agricultural, and industrial environments. This robust design ensures the indicator performs well even in harsh conditions.
- 0.8”, 6 digits, 7 segments, LED display
- Indication of four units of measurements: kg, lb, oz, and g
- Indication of gross, net, and tare
- Indication of stability and center of zero
- Easy wiring screw terminals
- Weight, peak, set point, and piece counting
- Password-protected calibration menu
- Physical and electronic sealing via audit trail function
- Two set point output relays
- Advanced analog, digital, and average filtering
- Two independent RS232 serial communication ports
- One independent RS485 serial communication port
- Weatherproof stainless steel enclosure, NEMA4X / IP66
- Breather vent to avoid condensation inside
- Built-in clock
- Front panel calibration
- Power Supply: UL-approved internal 110VAC to 220VAC, 50-60Hz
Available Option: 815TS-B-21E
This indicator is compatible with all brands and capacities of load cells in Tacuna Systems’ catalog. Note that it must be calibrated to the paired load cell. Purchasers can perform this calibration with a known load (2/3 of full capacity). Alternatively, Tacuna Systems can pair the indicator with the load cell–select our Load Cell Calibration Service with purchase.
Please contact us with any product inquiries.
Functions
- Auto Zero Scale
- Auto Zero Tracking
- Normal Weighing
- Peak
- Counting
- Zero Scale
- Tare
- Alarm when load exceeds the maximum load capacity of the scale or load cell
- Password protected calibration menu and electronic sealing via audit trail function
- RS-232 and RS-485
- Two setpoint relays
- Print Interface (PS805)
- Advanced analogue, digital, and average filtering
Specifications
ANYLOAD 815TS General Specifications
Power Supply | UL approved internal, 100VAC to 240 VAC, 50-60Hz |
---|---|
Power Consumption | 120VAC @ 0.1A/12VDC @ 0.5A (10W AC/5W DC) typical |
Excitation Voltage | 5V DC ± 5% |
Number of Load Cells | Up to 8×350Ω; 16×700Ω |
Input Range | Up to 19mV/4mV/V |
Sample Rate | 80 Samples/Second |
Resolution | 1,000,000 internal count, with 24bits resolution |
Division | Legal for trade 10,000d/20,000d |
Tare Range | 100% Full-Scale NTEP/MC/ OIML |
Communicate Interface | 2 x RS-232C, 1 x RS-485 |
Output | 2 x form C Relays |
Working Humidity | 20% RH to 90% RH |
Working Temperature | -10°C to 50°C / 15°F to 120°F |
Dimensions (WxHxD) | 9.1″ x 7.4″ x 3.0″(231 x 188 x 76mm) base included |
Technical Documents
815TS Datasheet | |
815TS Manual |
Approvals
NTEP Certificate of Conformance Measurement Canada Approval CE Certificate of Conformity – Electromagnetic Compatibility Directive CE Certificate of Conformity – Low Voltage Directive |
Tutorial Video
815TS Calibration Settings Video |
FAQ
Question | Answer |
---|---|
1. Where can I find the manual? | The manual can be found on the ANYLOAD website. Under each product Picture and Description, there will be the MANUAL tab with the corresponding user manual. |
2. What is the maximum capacity we can use for this indicator? | The capacity can be set in F1.7. The maximum capacity is 999999 in the unit that the device is set to. The unit can be changed in F1.3. |
3. What communication interfaces does the 815-series have? | There are two communication ports available as RS232-1 and RS232-2. The baud rate and data bit setting can be accessed in F5.0-F5.9. |
4. How does this calibrate and where can I find the instructions? | The calibration process can be found in the manual. All the calibration-related settings can be accessed in F3. |
5. How do we troubleshoot with the error codes? | Go to the Error codes table in the manual. Please contact us if issues persist after following the manual diagnostics and instructions. |
