• AnyLoad OCSA4 General Purpose Crane Scale

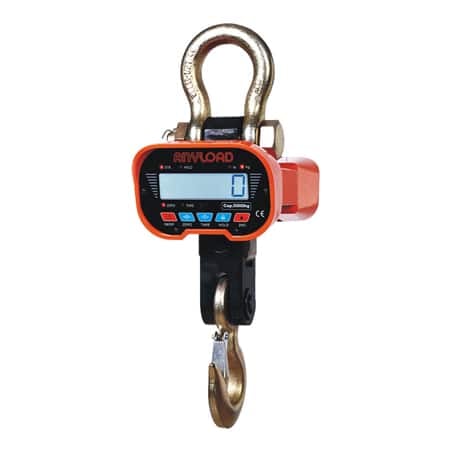

ANYLOAD OCSA4 General Purpose Crane Scale



The ANYLOAD OCSA4 general purpose crane scale delivers reliable and accurate weight measurements in high-capacity applications. Available in 20Klb, 20Klb, and 40Klb options, the OCSA4 has a die-cast aluminum waterproof enclosure, alloy steel load receptor, heavy duty bow shackle and eye hook (fixed).

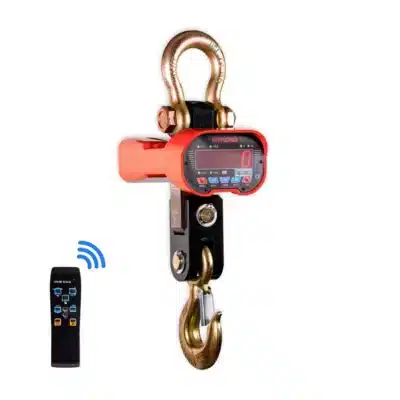

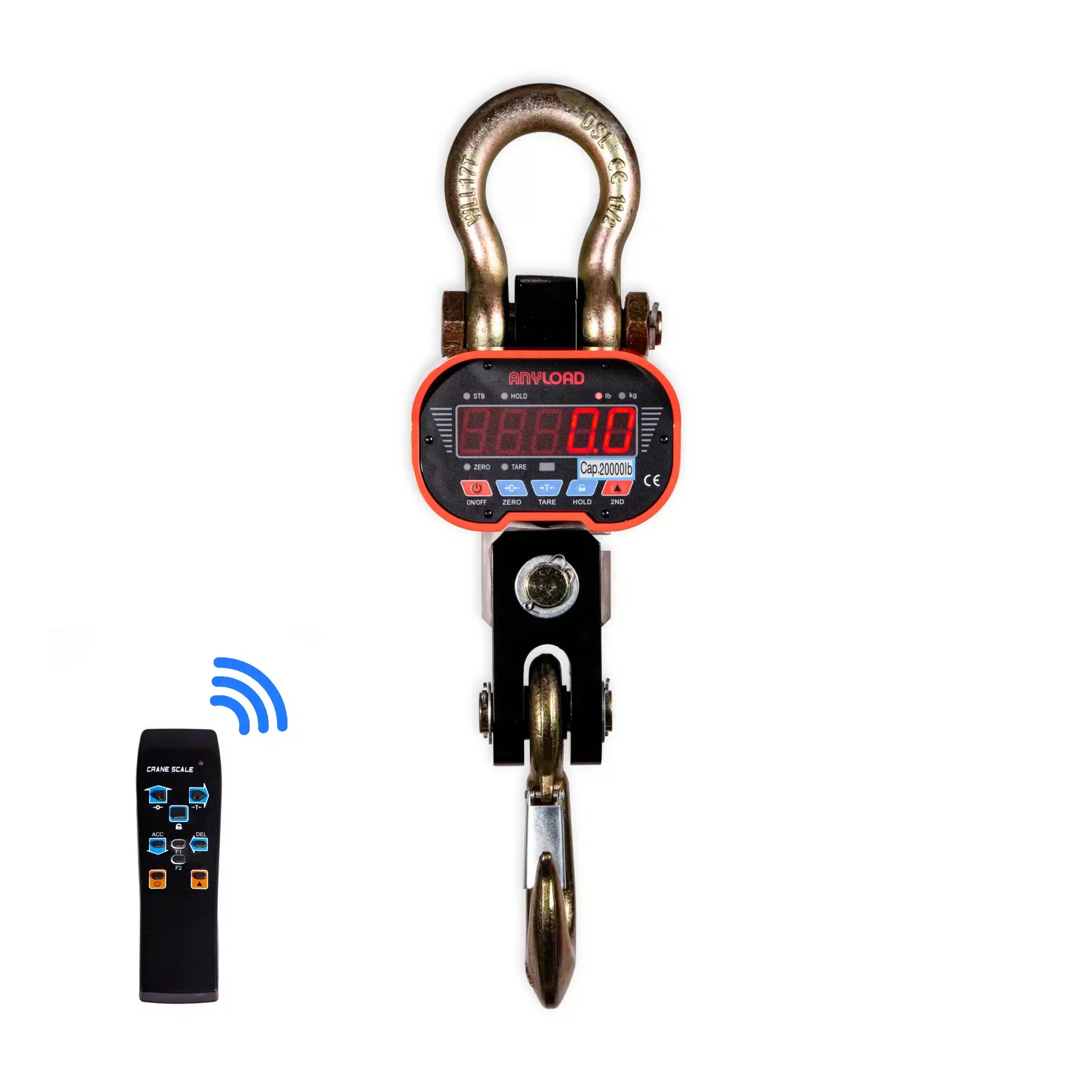

This crane scale features a 30mm high, 5-digit backlit LCD display and infrared remote control that allows operation from a safe distance. The OCSA4 offers auto overload alarm at 100%F.S.+9e, HOLD function, auto power-off function, tare in/tare out, and unit switching between kilograms and pounds.

Note this product is special order only – please contact us for ordering information. For the stock version of this scale with LED display, see the ANYLOAD OCSA3. Not sure which crane scale is right for your application? See this comparison chart.

Quantity Price
1 - 9 $1,973.00
10 - 24 $1,874.35
25 - 49 $1,815.16
50 - 99 $1,755.97
100 + $1,677.05
Tacuna Systems Price Match Guarantee
SKU: OCSA4 Category:

ANYLOAD OCSA4 Crane Scale Features:

  • Capacities: 20Klb, 30Klb, 40Klb
  • Accuracy Class: OIML III
  • Safe Overload: 120% of full scale
  • Breaking Overload: 400% of full scale
  • Aluminum die-casting scale enclosure
  • Alloy steel load receptor
  • Heavy-duty bow shackle
  • Heavy-duty eye hook
  • Selectable units: kilograms (kg), pounds (lb)
  • Rechargeable 6V/10Ah battery included
  • Power adaptor 9V/1500mA included
  • Infrared remote control included

ANYLOAD OCSA4 Crane Scale General Functions:

  • Zero
  • Tare
  • Hold
  • Low battery alarm
  • Battery supervision
  • Overload alarm
  • Auto calibration
  • 3-point linearity correction
  • Unit switch: kg/lb
  • Gravity acceleration
  • Resolution switch
  • Auto-off set

Please contact us with any product-related questions.

Tacuna Systems Commitment

We strive to help our diverse customer base achieve their desired outcomes. As a small business, we take great pride in providing free consultation for product design & prototyping to ensure our valued clients have the right equipment to be successful. Our engineering specialists have extensive R&D experience in strain gauge load cell technology, and we are well-known for our in-house designed customizable signal conditioners and amplifiers.



Specifications

ANYLOAD OCSA4 Crane Scale Specifications:

Capacity 20Klb, 30Klb, 40Klb
Accuracy Class OIML III
Enclosure Material Die-casting aluminum
Display Type Backlit LCD
Display Digits 5 digits
Display Height 30mm/1.2in
Working Temperature -10°C to 40°C/14°F to 104°F
Safe Overload 120% of full scale
Breaking Overload 400% of full scale
Rechargeable Battery (included) 6V/10Ah
Battery Life 100 hours
Power Adaptor (included) 9V/1500mA
Remote Distance 10m/32.8′

Technical Documents

OCSA4 Crane Scale Brochure and Data Sheet
OCS Series Crane Scale Technical Manual
OCS Series Crane Scale User Guide
Crane Scale Comparison Chart
