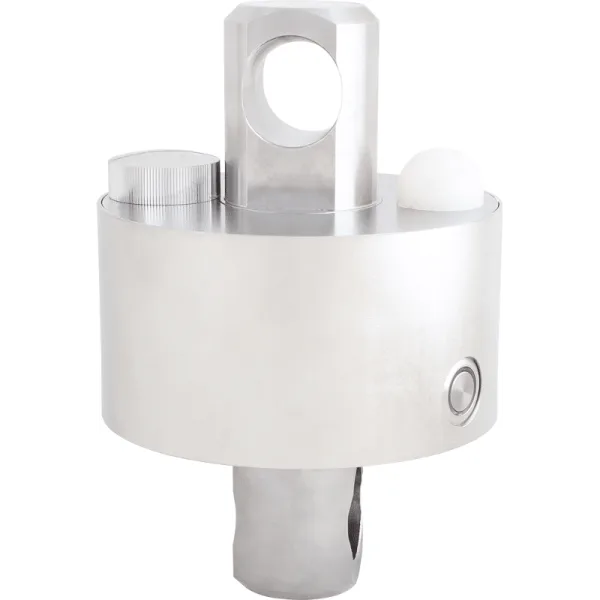

ANYLOAD 110ES-WL Salt Waterproof Stainless Steel Casting Wireless Crane Scale

The 110ES-WL salt waterproof stainless steel casting wireless crane scale is IP68/69K rated for highest levels of intrusion protection in tension load measuring. It features a waterproof power switch with indicating light and battery cap, and antenna secured by a silicon enclosure. Available in standard capacities of 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, and 100t. For use with either the P1 indicator or 805HP-WL indicator (sold separately).

Other capacities and configurations available. Stock may be limited – please contact us for order information.

$1,603.20$17,494.95

Clear
SKU: AL-110ES-WL Categories: , ,
Weight 5 lbs
Capacity

, , , , , , ,

Options

110ES-WL Wireless Crane Scale Key Features

  • Enclosure Material: Stainless steel casting
  • Accuracy: 1:6,000 maximum divisions
  • Capacities: 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t
  • Safe Overload: 200%
  • Breaking Overload: 400%
  • IP Rating: IP68/IP69K
  • Frequencies:  433 Mhz (option -01, limited availability, no online orders), 915 Mhz (option -02)
  • Transmission range is up to 30m
  • Salt water proof power switch with indicating light
  • Salt water proof battery cap
  • Antenna protected by silicon enclosure
  • Indicator and shackles to be ordered separately



Please contact us with any product interfacing inquiries.



Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.







110ES-WL Wireless Crane Scale General Specifications
Capacity 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t
Division 1t-10t 1:5000
Division 20t 1:4000
Division 30t 1:3000
Division 50t-100t 1:5000
Enclosure Material 304 Stainless steel
Working Temperature -10°C to 40°C/14°F to 104°F
Safe Overload 200% of full scale
Breaking Overload 400% of full scale
Power Supply 4 x 16340.3 7V (included)
Charger DC 4.2V/600mA (included)
Operation Time 8 hours
IP Rating IP68/69K
