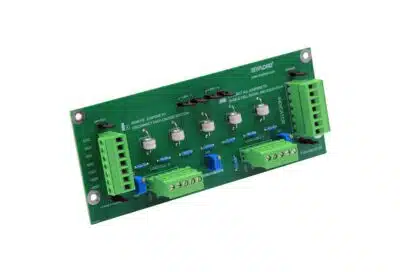

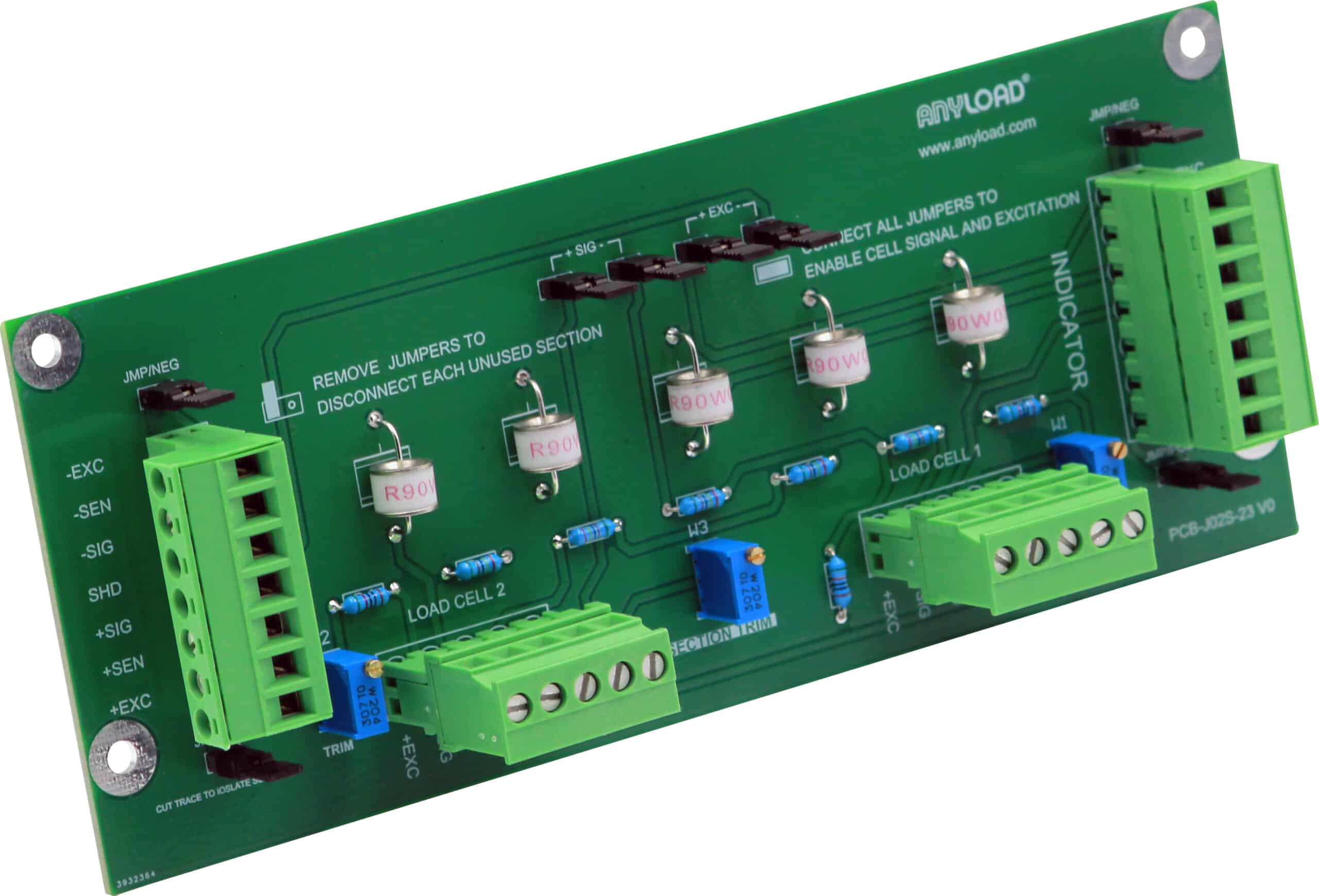

ANYLOAD J02S-23-MB Junction Box Main Board
The ANYLOAD J02S-23-MB Main Board for junction and summing boxes connects and sums signals from multiple load cells into a single output, ensuring accurate multi-cell balance adjustment. It supports two parallel load cell connections with an expansion port for additional junction boxes and includes lightning/over-voltage protection for enhanced safety. Easy to install and reliable for various applications.
Other capacities and configurations available – please contact us with any questions
$256.00
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $256.00 |
10-24 | 10 - 24 | 5% $243.20 |
25-49 | 25 - 49 | 8% $235.52 |
50-99 | 50 - 99 | 11% $227.84 |
100+ | 100 + | 15% $217.60 |
ANYLOAD J02S-23-MB Features
The ANYLOAD J02S-23-MB Main Board for junction and summing boxes is designed to accept inputs from multiple load cells, efficiently summing the generated signals into a single output for accurate multi-cell balance adjustment. This model supports two parallel load cell connections and includes an expansion port for wiring additional junction boxes, offering flexibility for various system configurations. It is easy to install, making it a convenient solution for complex weighing systems. Additionally, it is equipped with lightning and over-voltage protection, ensuring durability and safeguarding against potential electrical damage. Ideal for industrial and commercial weighing applications, this model enhances performance while ensuring safety and accuracy.
- Number of cells: 2 single cells
- 2-Channel analog signal trim PCB
- Section or individual cell with signal trim
- Lightning/Overvoltage Protection
- Quick removable load cell connectors
- Switchable On/Off power per channel
- Equipped with independent potentiometers
- Conformal coated circuit board
- Expansion port to/for additional J-Box
- IP Rating: IP67
Specifications
ANYLOAD J02S-23-MB Specifications:
Number of cells | 2 Single Cells |
Trimming Options | Section or individual cell with signal trim |
IP Rating | IP67 |
Trimming Range
Load Cell Resistance | Signal Trim |
---|---|
350Ω | 3.6% of output |
700Ω | 6.3% of output |
1000Ω | 7.0% of output |
Technical Documents
J02S-23-MB Datasheet |
