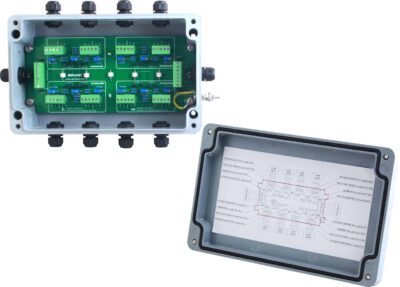

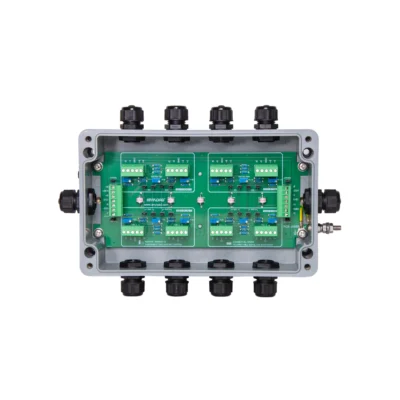

ANYLOAD J08EP-E & J08SP-E Fiberglass Polyester Junction Box
The ANYLOAD J08EP-E and J08SP-E junction boxes accept inputs from multiple load cells and sum the signals into a single output for accurate multi-cell balance adjustment. Housed in an IP67-rated fiberglass-reinforced polyester enclosure, it is designed to prevent condensation and saltwater damage. They feature an expansion port for connecting additional junction boxes and offer both cell excitation trim and signal trim options. Supporting 2-8 parallel load cell connections with an expansion port, it features easy installation with quick removable connectors and a captive screw design. This model also includes lightning and over-voltage protection.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $568.00 |
10-24 | 10 - 24 | 5% $539.60 |
25-49 | 25 - 49 | 8% $522.56 |
50-99 | 50 - 99 | 11% $505.52 |
100+ | 100 + | 15% $482.80 |
ANYLOAD J08EP-E & J08SP-E Features
The ANYLOAD J08EP-E and J08SP-E junction and summing boxes are designed to accept inputs from multiple load cells, combining the signals into a single output for precise multi-cell balance adjustment. These junction boxes are housed in an IP67-rated fiberglass-reinforced polyester enclosure that is specifically engineered to prevent condensation and saltwater damage, making them ideal for harsh environments. Accommodating two to eight parallel load cell connections, they also feature an expansion port for wiring additional junction boxes, allowing for scalability in various applications. These are easy to install, thanks to their quick-removable load cell connectors and captive screw design that securely fastens the cover. Additionally, these models come equipped with lightning and over-voltage protection, ensuring reliable performance and safeguarding against electrical surges.
- Enclosure Material: Fiberglass-reinforced polyester
- Number of cells: 2-8 single cells
- Section or individual cell with signal and excitation trim
- Lightning/Overvoltage Protection
- Quick removable load cell connectors
- Switchable On/Off power per channel
- Equipped with independent potentiometers
- Preinstalled GORE breather vent
- Conformal coated circuit board
- Expansion port to/for additional J-Box
- “No-loss” captive screw design
- IP Rating: IP67
Available options: J08EP-E & J08SP-E.
Contact us for any inquiries on load cell interfacing.
Specifications
ANYLOAD J08EP-E and J08SP-E Specifications
Number of cells | 2-4 singles cells |
Input Cable Fittings | M20: 6mm-12mm diameter cable |
Output Cable Fittings | M20: 6mm-12mm diameter cable |
Trimming | J08EP-E: Individual cell with excitation trim J08SP-E: Individual cell with signal trim |
Enclosure Material | Fiberglass Reinforced Polyester |
IP Rating | IP67 |
Trimming Range
ANYLOAD J08EP-E and J08SP-E Trimming Range
Load Cell Resistance |
Signal Trim | Excitation Trim |
350Ω | 3.6% of output | 5.4% of output |
700Ω | 6.3% of output | 2.7% of output |
1000Ω | 7.0% of output | 1.9% of output |
