 | ANYLOAD 110RH-WL Tenslink™ Wireless Dynamometer FeaturesThe ANYLOAD 110RH-WL Tenslink™ is a robust… +more ANYLOAD 110RH-WL Tenslink™ Wireless Dynamometer FeaturesThe ANYLOAD 110RH-WL Tenslink™ is a robust tension link load cell designed to deliver exceptional reliability and convenience across a wide range of applications. Constructed from powder-coated alloy steel and featuring an IP67-rated environmental seal, it is built to withstand harsh environments, making it ideal for demanding industries such as food processing, agriculture, fishing, and construction. The Tenslink™ comes with a moisture-resistant handheld indicator, providing a dependable solution for dynamometers, crane scales, and other tension-weighing applications. Its sleek design, high overload tolerance, and ease of use make it a preferred choice for lifting applications, including towing systems, crane and hoist scales, and tensile verification systems that require remote operation. This versatile load cell offers unparalleled performance in challenging conditions.Material: Alloy Steel, Powder CoatingST models have larger mounting holes for Crosby G-2130 or ANYLOAD SBX shacklesRated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100tBreaking Overload: 500% of full scaleSafe Overload: 200% of full-scaleAdjustable Wireless Distance (unobstructed line of sight):Up to 30m (Power 1.26mW)Up to 40m (Power 1.56mW)Up to 55m (Power 3.13mW)Up to 75m (Power 6.25mW)915MHz communication (-WL02 suffix in model number); 433MHz available upon request (-WL01 suffix in model number)Operation Time: Up to 100 hrs. on 20°C at the lowest power setupIP Rating: IP67Tare Range: 100% Full ScaleIndicator Enclosure Material: ABSUnits of Measurement: kg, g, t, lb, Klb, N, kN, oz, user-defined unitDisplay Type: LCD with backlightIndicator IP Rating: IP65Available Capacities: 500kg-WL02, 1t-WL02, 2t-WL02, 3t-WL02, 5t-WL02, 10t-WL02, 20t-WL02, 30t-WL02, 50t-WL02 & 100t-WL02.Available Purchase Options:110RH-WL purchased alone,110RH-WL bundled with the 805HP-WL indicator (-FP7 in model number), or110RH-WL bundled with the 805HP-WL indicator AND the CASE-03 (capacities below 50t) or CASE-05 (capacities 50t and above) hard-shell carrying case (-FP2 in model number). -less | Price: $1,610.00-$8,498.00 | |
 | ANYLOAD 110ZHBL FeaturesThe ANYLOAD 110ZHBL is a durable and cost-effective tension link… +more ANYLOAD 110ZHBL FeaturesThe ANYLOAD 110ZHBL is a durable and cost-effective tension link load cell specifically designed to measure pulling forces in challenging environments. Constructed from nickel-plated alloy steel, this load cell offers exceptional resistance to wear and corrosion, ensuring reliable performance even under rugged conditions. With an IP67 ingress protection rating, the 110ZHBL is environmentally sealed to withstand exposure to dust and water, making it ideal for harsh industrial applications. This load cell replaces a chain link in forklift chains, providing accurate cargo weight measurements, which is critical for safe and efficient operations. Available in 1.5t, 2.5t, and 2.5Klb capacities, the 110ZHBL is a versatile solution for forklift weighing and other high-stress applications where precise force measurement is essential.Material: Alloy SteelRated Capacities: 1.5t, 2.5t, 2.5KlbFull-Scale Output: 1.5mV/V ± 0.25%Safe Overload: 150% of full scaleBreaking Overload: 400% of full scaleIP Rating: IP67CE and RoHS-CertifiedWorks with leaf chain BL534 or BL634 for forklift truck weighingAvailable Capacities: 1.5t, 2.5t & 2.5Klb.Please contact us with any product-related questions. -less | Price: $464.00 | |

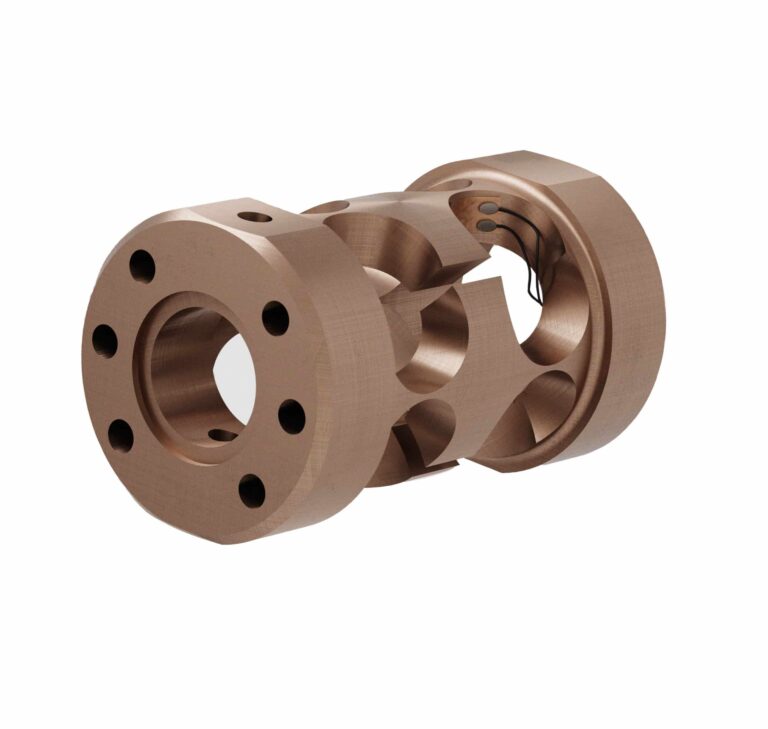

 | ANYLOAD 112BA Torque Transducer FeaturesThe 112BA torque load cell is a precision-manufactured… +more ANYLOAD 112BA Torque Transducer FeaturesThe 112BA torque load cell is a precision-manufactured force measurement solution with an IP65 ingress protection rating, making it suitable for various environments. Its compact design (2″ x 1.14″) is well-suited for portable and hand-held applications, including torque gauges, and allows it to fit into tight spaces. This versatile transducer effectively measures rotating forces, making it ideal for monitoring and preventing overload situations. Available in five different capacities ranging from 20 in-oz to 100 in-lb, the 112BA offers a range of options to meet specific needs. Its robust construction and high accuracy make it a reliable choice for precise torque measurement in diverse applications.Material: Aluminum, Clear AnodizedRated Capacities: 20 in-oz, 50 in-oz, 12 in-lb, 50 in-lb, 100 in-lb, 0.14 Nm, 0.35 Nm, 1.5 Nm, 5.6 Nm, 11.3 NmFull-Scale Output: 2.0mV/V ± 20%Safe Overload: 150% of full scaleEnvironmentally SealedSeal Type/IP Rating: Environmentally Sealed/IP65Available Options: 20 in-oz, 50 in-oz, 12 in-lb, 50 in-lb, 100 in-lbPlease contact us with any product-related questions. -less | Price: $1,224.00 | |

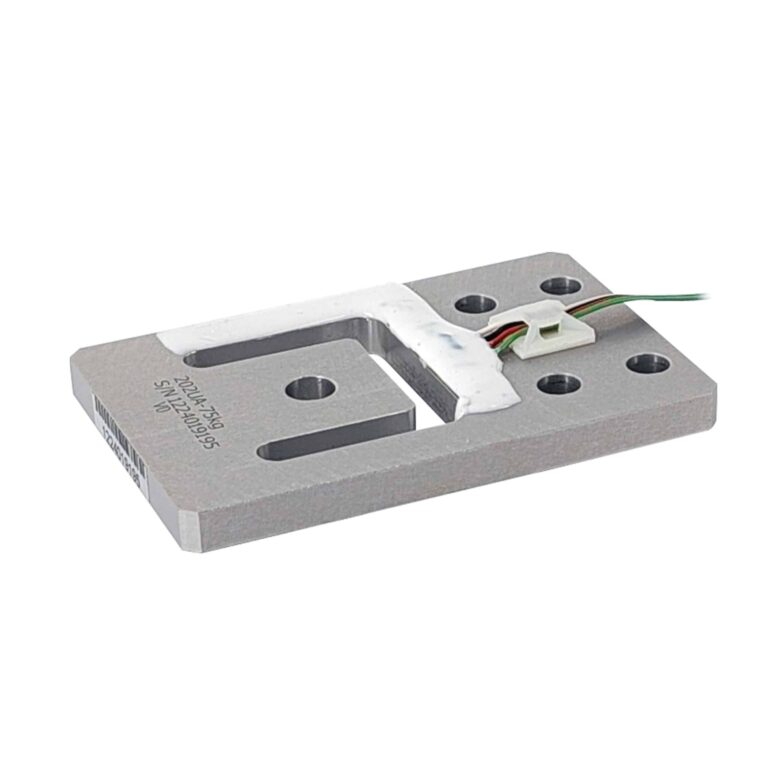

 | ANYLOAD 202UA Aluminum Planar Load Cell FeaturesThis planar load cell provides reliable… +more ANYLOAD 202UA Aluminum Planar Load Cell FeaturesThis planar load cell provides reliable, precise weight measurements in applications where space is limited.Material: Aluminum, Clear AnodizedRated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kgFull-Scale Output: 0.9mV/V ± 0.1%Calibration in mV/V/Ω: ± 0.05%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP65CE and RoHS-CertifiedAvailable Options: 3.75kg, 7.5kg, 15kg, 75kg, 150kg, 375kgPlease Contact us with any product-related questions. -less | Price: $98.00-$166.00 | |

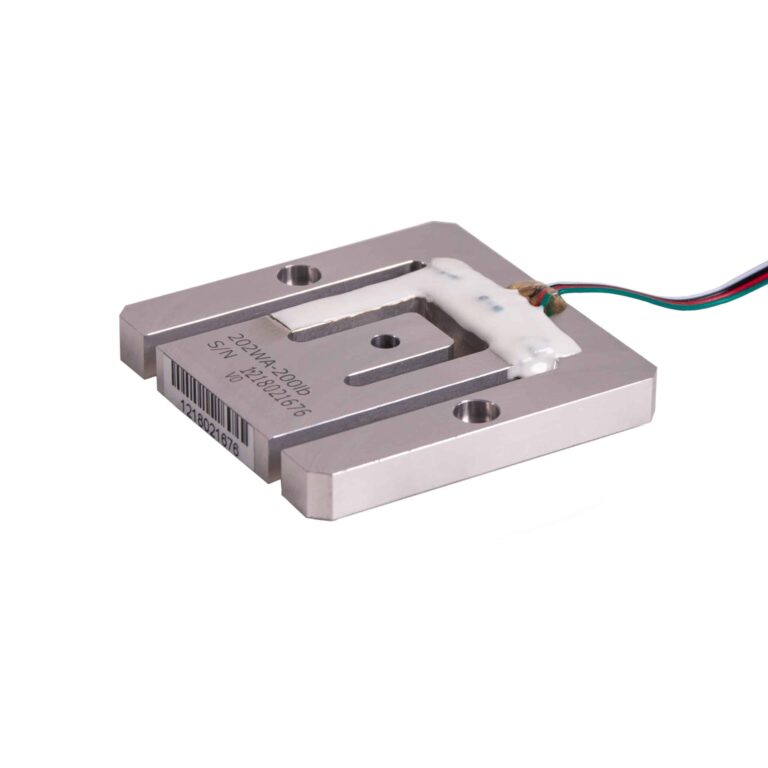

 | ANYLOAD 202WA FeaturesThis planar load cell is designed to provide reliable, precise… +more ANYLOAD 202WA FeaturesThis planar load cell is designed to provide reliable, precise weight measurements in applications where space is limited.Material: Aluminum, Clear AnodizedRated Capacities: 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, 300kgFull-Scale Output: 0.9mV/V ± 0.05%Calibration in mV/V/Ω: ± 0.05%Safe Overload: 150%Breaking Overload: 300% of full scaleIP Rating: IP65CE and RoHS CertifiedAvailable Options: 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, & 300kg.Please Contact us with any product-related questions. -less | Price: $104.00 | |

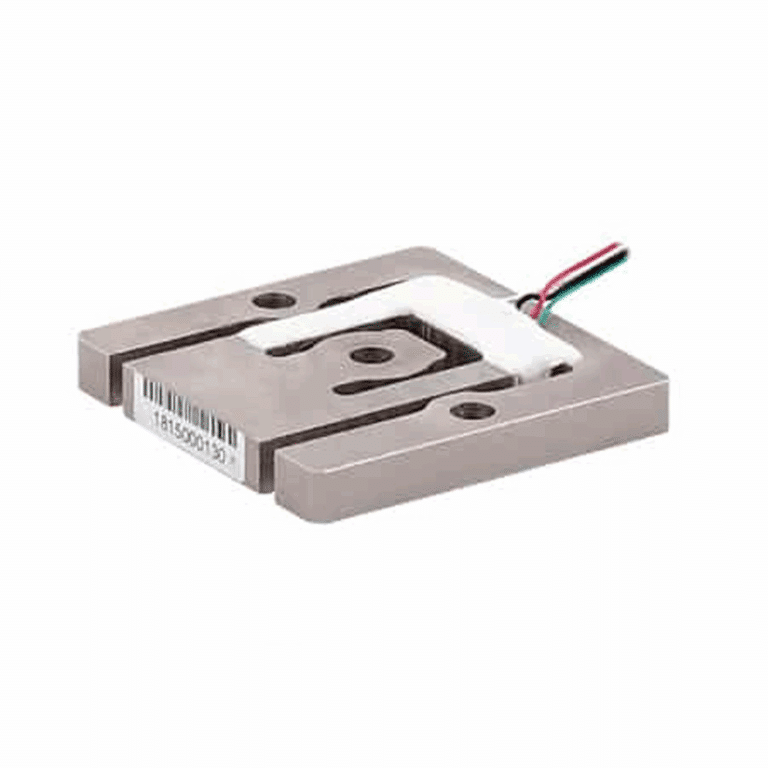

 | ANYLOAD 202WH Planar Load Cell FeaturesMaterial: Alloy SteelRated Capacities: 250kgFull-Scale Output: 0.9mV/V… +more ANYLOAD 202WH Planar Load Cell FeaturesMaterial: Alloy SteelRated Capacities: 250kgFull-Scale Output: 0.9mV/V ± 0.1%Calibration in mV/V/Ω: ± 0.05%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP65CE and RoHS-certifiedAvailable Option: 250kgPlease contact us with any product-related questions. -less | Price: $280.00 | |
 | ANYLOAD 247AA FeaturesThe ANYLOAD 247AA Miniature Load Button is a dependable and… +more ANYLOAD 247AA FeaturesThe ANYLOAD 247AA Miniature Load Button is a dependable and cost-effective solution for precise compression measurements, ideal for applications where space and weight are critical factors. This load button is widely utilized in industries such as medical, automotive, and automation, where accurate force measurement and weighing are essential. Constructed with an environmentally sealed aluminum body, the 247AA offers an IP66 ingress protection rating, ensuring durability and resistance to water and dust in demanding environments. Available in capacities of 1kg, 2kg, 5kg, 10kg, and 20kg, this load button meets leading international safety standards, making it a reliable choice for various industrial applications. For higher capacity requirements, the stainless steel ANYLOAD 247AS Miniature Load Button provides a suitable alternative.Material: Aluminum, Clear AnodizedRated Capacities: 1kg, 2kg, 5kg, 10kg, 20kgFull-Scale Output: 1mV/V ± 20%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP66Available Options: 1kg, 2kg, 5kg, 10kg & 20kg.Please contact us with any product-related questions. -less | Price: $602.00 | |
 | ANYLOAD 247AS FeaturesThe ANYLOAD 247AS Miniature Load Button is a robust and… +more ANYLOAD 247AS FeaturesThe ANYLOAD 247AS Miniature Load Button is a robust and versatile compression weighing solution, designed for applications where space and weight are limited. Made from 17-4PH stainless steel, this load button offers exceptional durability with IP66-rated water and corrosion resistance, making it ideal for harsh environments. It is available in a wide range of capacities from 30kg to 5t, meeting the needs of various industries including automation, vehicle maintenance, and sports science. The compact design allows for precise force measurement in tight spaces while adhering to international safety standards. For applications requiring lower capacity options, the aluminum ANYLOAD 247AA Miniature Load Button provides a suitable alternative.Material: Stainless Steel; Aluminum, Clear AnodizedRated Capacities: 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5tFull-Scale Output: Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP66Available Options: 30kg, 50kg, 100kg, 200kg, 500kg, 1t, 2t & 5t.Please contact us with any product-related questions. -less | Price: $602.00-$740.00 | |
 | ANYLOAD 247ASLH FeaturesThe ANYLOAD 247ASLH Miniature Load Button is a versatile and… +more ANYLOAD 247ASLH FeaturesThe ANYLOAD 247ASLH Miniature Load Button is a versatile and compact compression weighing and force measurement solution, perfect for applications where space and weight are limited. Constructed from 17-4PH stainless steel, this load button is environmentally sealed with an ingress protection rating of IP66, ensuring reliable performance in challenging conditions. It boasts a 150% safe overload capacity, providing robustness and accuracy in demanding environments. Available in a wide range of capacities from 10kg to 10t, it caters to various measurement needs. The ANYLOAD 247ASLH meets leading international safety requirements, making it a trusted choice for precise and dependable force measurement. Its durability and versatility make it ideal for both industrial and portable applications.Material: 17-4PH Stainless SteelRated Capacities: 10kg, 25kg, 30kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10tFull-Scale Output:Capacities ≤ 10kg: ≥0.8mV/V;Capacities > 10kg: 2.0mV/V ± 20%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP66Available Options: 10kg, 25kg, 30kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t & 10t.Please contact us with any product interfacing inquiries. -less | Price: $724.00-$1,346.00 | |
 | ANYLOAD 247ASLL FeaturesThe ANYLOAD 247ASLL Miniature Load Button is a highly compact… +more ANYLOAD 247ASLL FeaturesThe ANYLOAD 247ASLL Miniature Load Button is a highly compact and dependable compression load cell with a diameter of 1.5 inches, making it ideal for portable applications. Constructed with 17-4PH stainless steel, it ensures durability and precision, providing highly accurate and reliable readings. This load cell is available in capacities of 5Klb and 10Klb, catering to various measurement needs. With an ingress protection rating of IP64, it is designed to withstand challenging environments, offering protection against dust and splashing water. Furthermore, the ANYLOAD 247ASLL meets leading international safety requirements, making it a trusted choice for critical applications. Its robust construction and precise performance make it a valuable addition to any force measurement setup.Material: 17-4PH Stainless SteelRated Capacities: 5Klb, 10KlbFull-Scale Output: 2.0mV/V ± 20%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP64Available Options: 5Klb & 10Klb.Please contact us with any product interfacing inquiries. -less | Price: $1,302.00 |
