 | ANYLOAD 102ESM2 Compression Weigh Module FeaturesThe ANYLOAD 102ESM2 is a heavy-duty compression… +more ANYLOAD 102ESM2 Compression Weigh Module FeaturesThe ANYLOAD 102ESM2 is a heavy-duty compression weigh module engineered to provide reliable and precise weighing performance in industrial applications. Designed to house the 102ES double-ended beam load cell (sold separately), this rugged module is constructed from high-quality stainless steel and features a welded seal with an IP 68 rating for maximum durability and protection in harsh environments. It supports a wide capacity range from 1 klb to 75 klb, making it suitable for both medium- and large-scale weighing systems. The module incorporates a built-in self-checking design with anti-lifting protection at 50% of rated load, along with side-load resistance to maintain stability, accuracy, and safety under demanding conditions. In addition, it offers thermal expansion compensation, ensuring consistent performance even under fluctuating temperatures. Certified for CE, RoHS, and Ex compliance, the ANYLOAD 102ESM2 is an excellent choice for precise and reliable weighing in tanks, silos, hoppers, and platform systems across various industries.Assembles: 102ES Double-Ended Beam Load CellMaterial: 304 Stainless SteelCapacities: 1Klb-75KlbCE, RoHS, and Ex-certified load cellsSelf-checking with 50% rated load anti-lifting protectionSide force protectionLoad cell not includedAvailable Options: 1Klb-5Klb, 10Klb-25Klb, 35Klb, 50Klb-60Klb & 75KlbOther capacities and configurations available – please contact us with any product-related questions -less | Price: $1,192.00-$3,716.00 | |

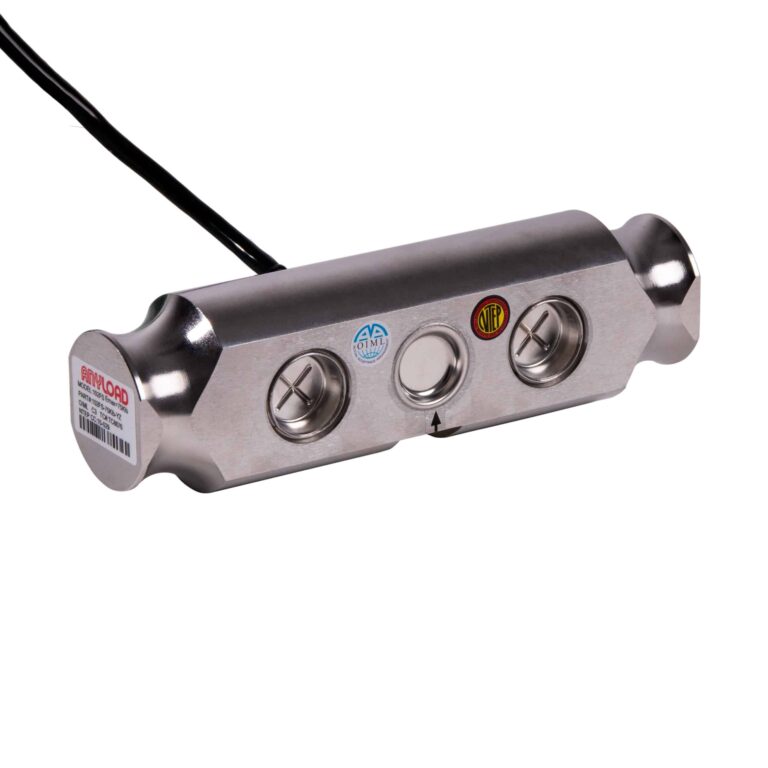

 | ANYLOAD 102FS FeaturesThe ANYLOAD 102FS Double-Ended Beam Load Cell is a robust… +more ANYLOAD 102FS FeaturesThe ANYLOAD 102FS Double-Ended Beam Load Cell is a robust and reliable weighing solution, designed for demanding heavy-duty applications such as truck scales. This load cell is OIML and NTEP certified, featuring a welded seal construction made from 2Cr13 stainless steel, providing superior durability and an IP68 water-resistant rating. Available in 50Klb and 75Klb capacities, the 102FS is engineered to perform consistently in harsh environments, ensuring accurate measurements even under extreme conditions. Additionally, this model is interchangeable with industry-standard load cells, including Coti Global CG-DB50000S, Cardinal DB50000S, and Rice Lake RLDB5000S, making it a versatile and dependable choice for various heavy-duty weighing needs.Material: 2Cr13 Stainless SteelRated Capacities: 50Klb, 75KlbFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-75KlbOIML MAA C4.5, Y=18 000 certified from 11t-55tCE, RoHS, and Ex-certifiedATEX, FM, IECEx available upon requestInterchangeable with Cardinal SCAAvailable Options: 50Klb & 75Klb.Please contact us with any product-related questions. -less | Price: $1,162.00 | |
 | ANYLOAD 102MH FeaturesThe 102MH is a robust, heavy-duty double-ended beam load cell… +more ANYLOAD 102MH FeaturesThe 102MH is a robust, heavy-duty double-ended beam load cell designed for medium-capacity applications, offering a rated capacity of up to 25 tons. Constructed from welded seal alloy steel, it provides exceptional durability and meets the stringent IP67 water resistance standard, making it ideal for use in harsh environments. This load cell is particularly well-suited for onboard weighing and weighing-in-motion applications, where accuracy and resilience are paramount. Its design ensures reliable performance even in demanding conditions, and it complies with leading international safety standards, ensuring both precision and safety. The 102MH combines strength, durability, and versatility, making it a top choice for industrial weighing needs.Material: Alloy SteelRated Capacity: 25tFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67CE, RoHS, and Ex-certifiedATEX, FM, IECEx available upon requestAvailable Option: 25tPlease contact us with any product-related questions. -less | Price: $1,140.00 | |
 | ANYLOAD 102MH-AA FeaturesThe 102MH-AA is a robust and precision-engineered load cell specifically… +more ANYLOAD 102MH-AA FeaturesThe 102MH-AA is a robust and precision-engineered load cell specifically designed for onboard weighing applications, ensuring reliable performance even in demanding agricultural environments. Its low-profile design allows seamless integration into mobile weighing systems, while the black electrophoretic (EPD) coating provides exceptional resistance to fertilizer corrosion and harsh field conditions. Constructed from high-strength nickel-plated alloy steel, the 102MH-AA offers outstanding durability and protection against side forces and uplift. With a rated capacity of 22Klb and a full-scale output of 2.0mV/V ±0.5%, it delivers consistent and accurate measurements under varying loads. The load cell is environmentally sealed to IP67 standards and is CE, RoHS, and Ex(NEPSI) certified, with ATEX, FM, and IECEx options available upon request. Customization options are also offered to meet specific dimensional and performance requirements for specialized applications.Designed for On-Board Weighing applicationsSide force and uplift protectionHighly corrosion-resistantElement Material: Alloy steel, Nickel Plated, Black Electrophoretic PlatingRated Capacity: 22KlbFull Scale Output: 2.0mV/V ± 0.5%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP67CE, RoHS and Ex(NEPSI) certifiedATEX, FM, IECEx available upon requestAvailable Option: 22KlbPlease contact us with any product-related questions. -less | Price: $918.00 | |
 | ANYLOAD 102MHML Alloy Steel Double-Ended Beam Load Cell FeaturesThe 102MHML Double-Ended Beam… +more ANYLOAD 102MHML Alloy Steel Double-Ended Beam Load Cell FeaturesThe 102MHML Double-Ended Beam Load Cell is a heavy-duty, medium-capacity load cell with a 25Klb rated capacity. Constructed from environmentally sealed alloy steel, it boasts IP67 water resistance, ensuring reliable performance in harsh environments. This load cell is particularly well-suited for onboard weighing and weighing-in-motion applications, providing accurate and consistent measurements. Its robust design and superior construction meet leading international safety standards, making it a trusted choice for demanding weighing tasks. With its combination of durability and precision, the 102MHML is an excellent solution for various industrial applications.Material: Alloy SteelRated Capacity: 25KlbFull-Scale Output: 2mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP67CE, RoHS, and Ex certifiedATEX, FM, IECEx available upon requestAvailable Option: 25KlbContact us with any product-related or implementation-related questions. -less | Price: $1,132.00 | |

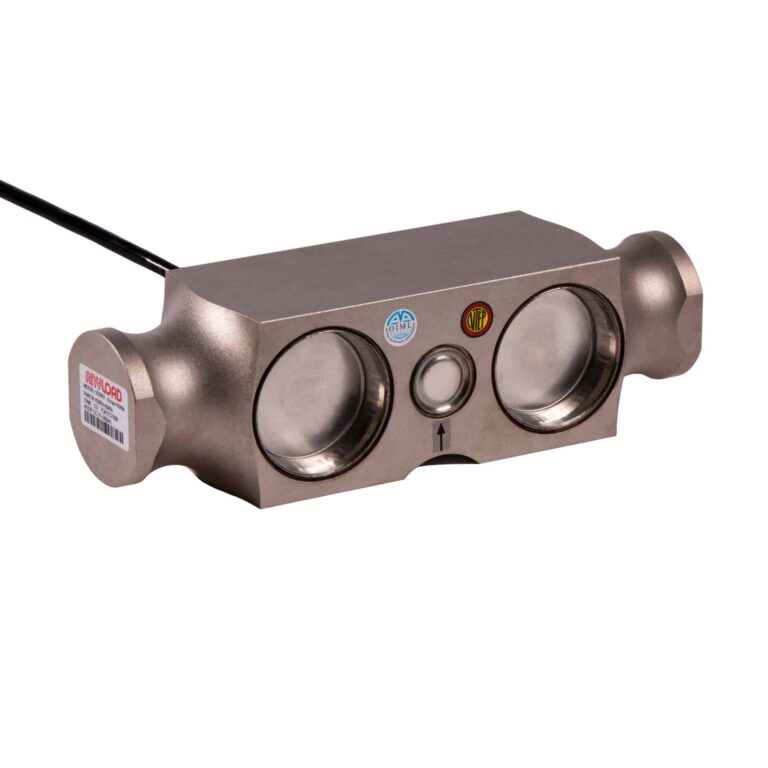

 | ANYLOAD 102RH FeaturesThe double-ended shear beam load cell, built with heavy-duty alloy… +more ANYLOAD 102RH FeaturesThe double-ended shear beam load cell, built with heavy-duty alloy steel and welded seals, offers IP68-class water resistance for reliable performance in harsh environments. Its robust, low-profile design is center-supported, making it ideal for high-capacity applications, such as truck and railroad scales. The load cell is available in rated capacities ranging from 50Klb to 125Klb, providing the versatility to handle various industrial demands. Featuring link ends, it allows for controlled movement during the weighing process, enhancing accuracy. Designed for easy integration into diverse systems, this load cell ensures durability and efficiency under challenging operating conditions.Material: Alloy steelRated Capacities: 50Klb, 65Klb, 75Klb, 100Klb, 125Klb, 10t, 15tFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-125KlbOIML MAA C4, Y=15 000 certified from 11t-55tCE, RoHS, and Ex-certifiedATEX, FM, IECEx available upon requestAvailable Options: 50Klb, 65Klb, 75Klb, 100Klb & 125KlbPlease contact us with product-related questions. -less | Price: $870.00-$1,166.00 | |

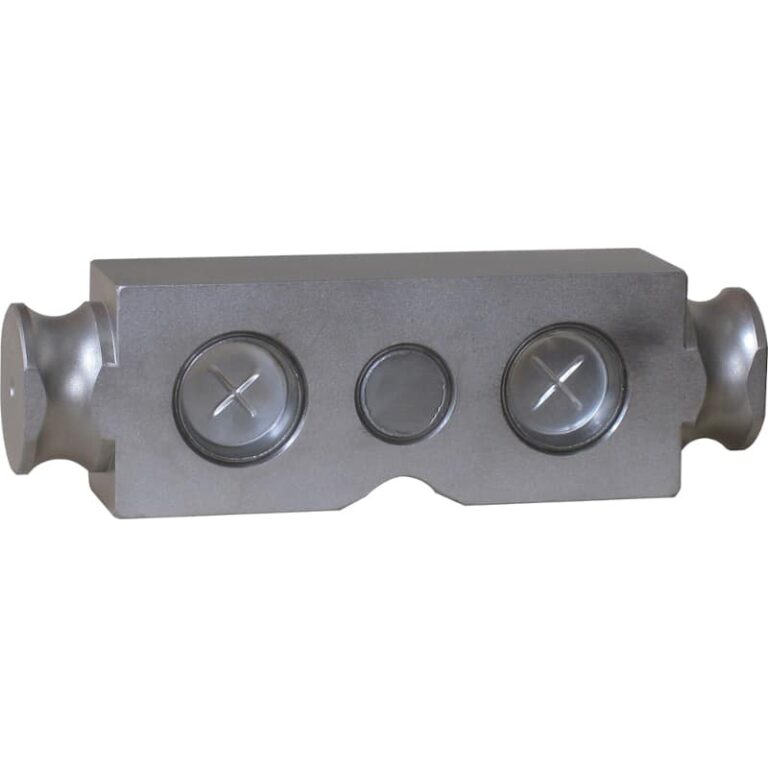

 | ANYLOAD 102RHGT FeaturesThe ANYLOAD 102RHGT Double-Ended Beam Load Cell is a heavy-duty… +more ANYLOAD 102RHGT FeaturesThe ANYLOAD 102RHGT Double-Ended Beam Load Cell is a heavy-duty, high-capacity weighing solution designed for demanding applications, particularly in truck scales. With a 60Klb rated capacity, this load cell features a weld-sealed alloy steel construction that provides IP68 water resistance, ensuring reliable performance in harsh environments. The design includes link ends that allow for movement during the weighing process, enhancing its durability and accuracy under heavy loads. Interchangeable with the BIM SDB60Klb model, the 102RHGT also meets leading international safety standards, making it a robust and dependable choice for critical weighing applications.Material: Nickel-plated alloy SteelRated Capacity: 60KlbFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150%Breaking Overload: 300%IP Rating: IP68CE, RoHS, and Ex-certifiedATEX, FM, IECEx available upon requestAvailable Option: 60KlbPlease contact us with product-related questions. -less | Price: $1,158.00 | |
 | ANYLOAD 102TH FeaturesThe ANYLOAD 102TH Double-Ended Beam Load Cell is a robust… +more ANYLOAD 102TH FeaturesThe ANYLOAD 102TH Double-Ended Beam Load Cell is a robust and cost-effective compression weighing solution designed for higher-capacity applications, with rated capacities ranging from 25Klb to 125Klb. This NTEP and OIML-certified load cell features a compact, single-piece element construction with a nose bottom that is resistant to shearing and shock loading, making it ideal for demanding environments such as truck scales. Its environmentally sealed alloy steel construction provides IP67 water resistance, ensuring durability and reliability in harsh conditions. The 102TH is interchangeable with several industry-standard models, including Rice Lake RL 75040, Vishay Revere 9323, and Sensortronics 65040. Additionally, a lightning protection version is available for the 75Klb capacity, offering resistance to electrical surges, while an installation module is available for the 50Klb-75Klb capacities to compensate for non-axial forces and protect the load cell during operation.Material: Alloy SteelRated Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125KlbFull-Scale Output: 3mV/V ± 0.25%Safe Overload: 150% of full scaleBreaking Overload: 300% of full scaleIP Rating: IP67NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125KlbOIML MAA C4, Y=15 000 certified from 11t-55tCE, RoHS, and Ex-certifiedLightning Protection Version (75Klb-01 and 75Klb-02)Rodent Protection Version (75Klb-01 and 75Klb-RP)ATEX, FM, IECEx available upon requestInterchangeable with Rice Lake RL75040Available Options: 25Klb, 40Klb, SE50Klb, SE60Klb, SE75Klb, 50Klb, 60Klb, 75Klb, 100Klb, 125Klb, SE50Klb-01-RP50ft, 60Klb-RP50ft, 60Klb-01-RP50ft, 75Klb-RP, 75Klb-01 & 75Klb-02.Installation Module: ANYLOAD 102THM5Please contact us with product-related questions. -less | Price: $602.00-$1,532.00 | |
 | ANYLOAD 102THM5 Weigh ModuleAssembles: 102TH Double-Ended Beam Load CellMaterial: Alloy SteelCapacities: 50-75KlbNTEP-certified load… +more ANYLOAD 102THM5 Weigh ModuleAssembles: 102TH Double-Ended Beam Load CellMaterial: Alloy SteelCapacities: 50-75KlbNTEP-certified load cells from 25Klb-125KlbOIML-certified load cells from 11t-55tCE, RoHS, and ex-certified load cellsCenter-pivoted, end-loaded, and completely self-centeringMulti-directional movements in the horizontal planeEL-29 End Links provide optimal loading conditions for the load cellNo check rods requiredLoad cell not includedAvailable Option: (50-75)Klb.This product has low inventory – please contact us for pricing and availability before ordering. -less | Price: $206.00 | |
 | ANYLOAD 102THM5-AA Weigh ModuleThe 102THM5-AA Alloy Steel Weigh Module is a high-performance… +more ANYLOAD 102THM5-AA Weigh ModuleThe 102THM5-AA Alloy Steel Weigh Module is a high-performance, heavy-duty weighing solution engineered for industrial environments such as tanks, silos, hoppers, and production line systems. Built from premium-grade alloy steel, this module offers exceptional strength and long-term durability even under harsh conditions. Its precision-engineered, center-pivoted, and self-centering design ensures optimal load alignment and reliable accuracy, supporting capacities ranging from 50Klb to 75Klb. The module’s innovative construction eliminates the need for check rods, simplifying installation and maintenance while allowing for multi-directional horizontal movement. Compatible with 102TH double-ended beam load cells, it seamlessly integrates into a variety of industrial scale systems. Certified for quality and safety with NTEP, OIML, and CE approvals, it also supports ATEX, FM, and IECEx certifications upon request. The 102THM5-AA provides the perfect balance of robustness, precision, and flexibility for demanding industrial weighing applications.Constructed from robust alloy steel for durabilitySupports capacities from 50Klb to 75KlbCenter-pivoted and self-centering design for optimal load alignmentCompatible with 102TH double-ended beam load cellsNo check rods required for installationSuitable for multi-directional horizontal movementsIdeal for tank, silo, hopper, and production line weighing systemsNTEP & OIML, and CE certifiedATEX, FM, IECEx available upon requestLoad cell not includedAvailable Option: (50-75)Klb.This product has low inventory – please contact us for pricing and availability before ordering. -less | Price: $1,190.00 |
