ANYLOAD A1A-D25C Load Cell Digital Amplifier

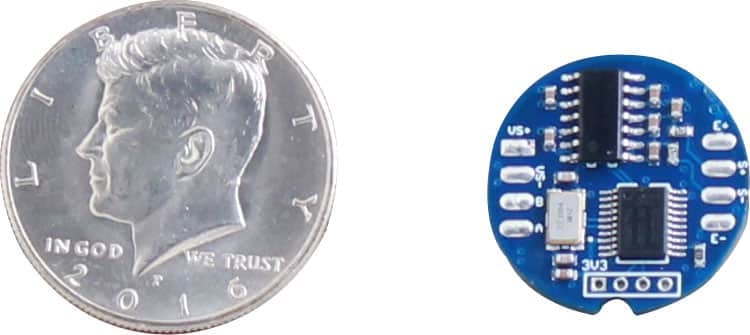

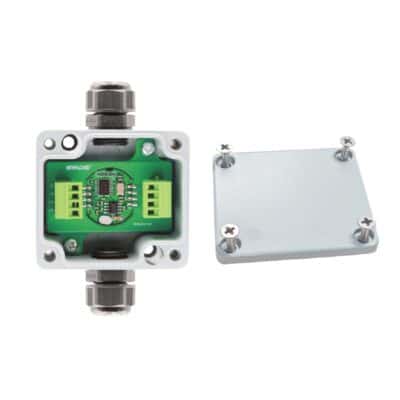

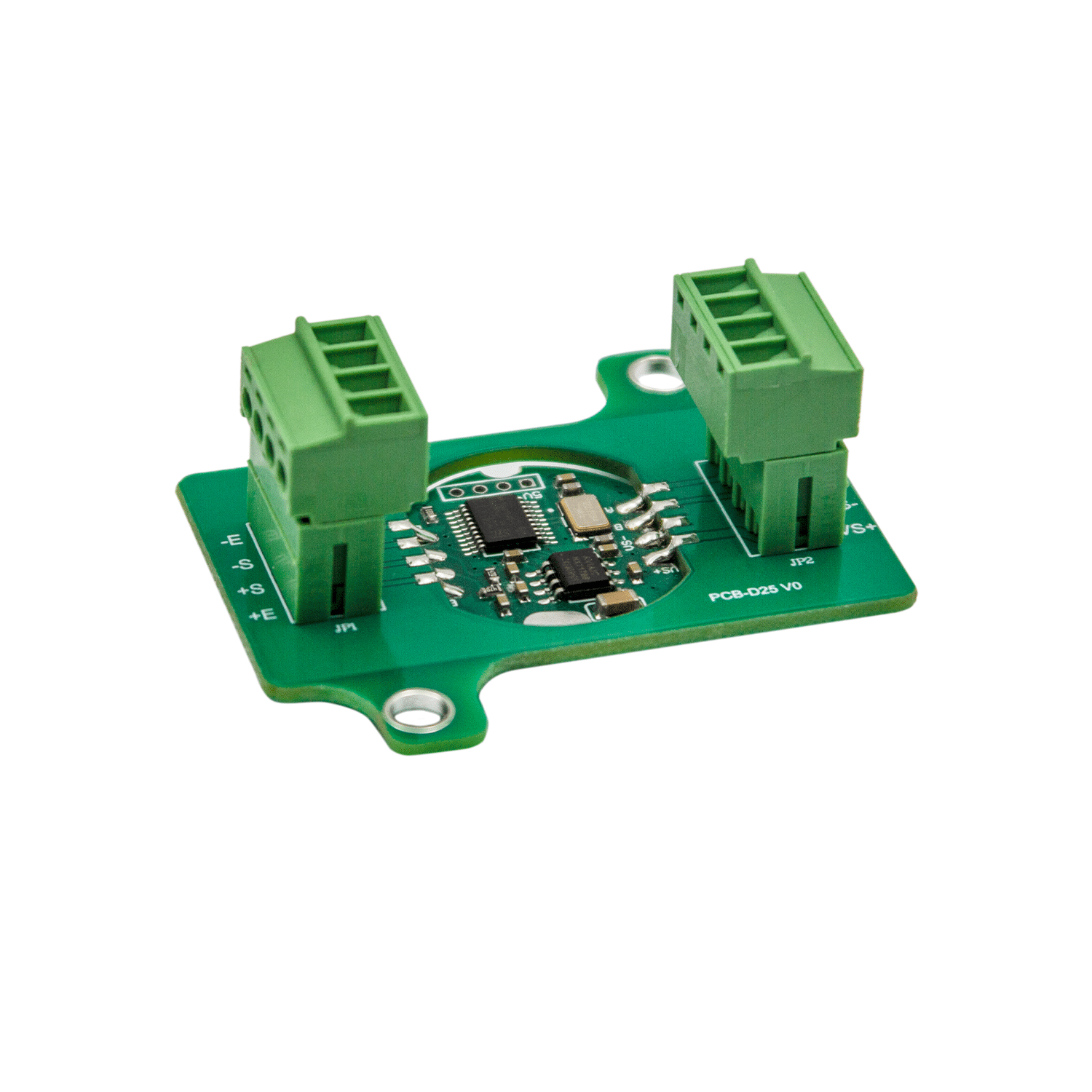

The ANYLOAD A1A-D25C strain gage amplifiers are designed for accurate signal conditioning of load cells and transducers. These DC-powered amplifiers can directly drive a single load cell or multiple load cells through a junction box—up to 4 x 350Ω or 8 x 700Ω load cells. Built with a durable aluminum casting enclosure, they ensure reliability and protection in various industrial environments. The A1A-D25C series offers stable performance and easy integration into weighing and measurement systems. Additionally, the A1A-D25 digitizer module provides both RS232 and RS485 communication interfaces, supporting the ModBus protocol for flexible and efficient data transmission. This makes the A1A-D25C a versatile choice for high-precision load measurement applications.
| Quantity | Price |
|---|---|
| 1 - 9 | $374.00 |
| 10 - 24 | $355.30 |
| 25 - 49 | $344.08 |
| 50 - 99 | $332.86 |
| 100 + | $317.90 |
ANYLOAD A1A-D25C Load Cell Digital Amplifier Features
The ANYLOAD A1A-D25C strain gage amplifiers offer precise signal conditioning for load cells and transducers. DC-powered and built in a durable aluminum enclosure, they can directly drive one load cell or multiple cells via a junction box. The A1A-D25 digitizer module enhances connectivity with RS232 and RS485 interfaces supporting the ModBus protocol.
Features:
- One input port can connect directly to 1 x 350 Ω load cell, or max 4 x 350 Ω (or higher resistance) load cells through a junction box
- 24-bit A/D Converter, high-speed processor
- Internal digital filter and strong anti-interference ability
- Contains the ability for 9-point linear calibration
- Applied to all kinds of strain gauge bridge-type load cells, such as tension, compression, torque, and so on.
Specifications
ANYLOAD A1A-D25C Load Cell Digital Amplifier General Specifications
| Specifications | A1A-D25C |
| Load Cell Type | All strain gage types |
| Power Supply | 9-24 V DC |
| Input Range | 0.8~3.9 mV/V |
| Output Signal | RS232(A1A-DM2507C)/ RS485(A1A-DM2508C)/ CAN Bus(A1A-DC2508C) |
| Communication Protocol | Modubus RTU/CANOpen |
| Resolution | >1000000 |
| Temperature Coefficient | ≤100ppm/°C |
| Working Temperature | -22 °F to 122 °F / -30 °C to 50 °C |
| Excitation Voltage to Load Cell | 5V |
Technical Documents
 |
A1A-D25 Load Cell Amplifier Datasheet |
 |
A1A-DM2507C-DM2508C Manual |
3D Drawing
 |
A1A-D25 Load Cell Amplifier |
