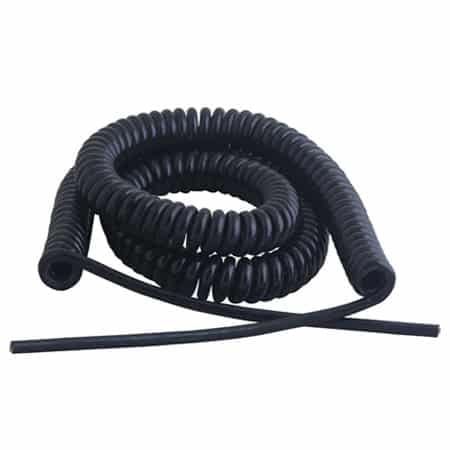

ANYLOAD CB7AP 7-Wire Load Cell Cable
The ANYLOAD CB7AP Load Cell Cable is a 7-wire conductor with a PU jacket material, tinned copper braided screen & aluminum foil-polyester tape inner shield.
Before ordering, feel free to skim the articles External Wiring in Strain Gauge Load Cells, and Reducing Noise in Very Sensitive Load Cell Applications. These articles review how cable lengths and the number of wires affect load cell calibration and RFI/EMI considerations, respectively.
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $124.00 |
| 10-24 | 10 - 24 | 5% $117.80 |
| 25-49 | 25 - 49 | 8% $114.08 |
| 50-99 | 50 - 99 | 11% $110.36 |
| 100+ | 100 + | 15% $105.40 |
ANYLOAD CB7AP Load Cell Cable Features
- PU jacket material
- Inner shield: Tinned copper braided screen & aluminum foil-polyester tape
- 7-Wire 32AWG
- Outside diameter of 7mm ± 0.2mm
- Cross section area of each wire: 0.149sq.mm
- 9m length
- ANYLOAD color code compliant
- RFI and EMI-protected
Available Option: 7mm-9m
Please contact us with any product-related questions.
Datasheet
Specifications
ANYLOAD CB7AP Load Cell Cable Specifications
| Number of Wires | 7 |
| Conductor | Tinned Copper |
| AWG | 32 |
| Cross Section Area (per wire) | 0.149 mm² |
| Outside Diameter | 7 mm ± 0.2 |
| Inner Shield | Tinned copper braided screen & aluminium foil-polyester tape |
| Jacket Material | PU |
| Jacket Colour | Black |
| Wire Resistance | ≤ 0.09 Ω/m |
| Temperature | -30°C to 70°C / -22°F to 158°F |
| Length | 9 m |
Technical Documents
| CB7AP Load Cell Cable Data Sheet |
