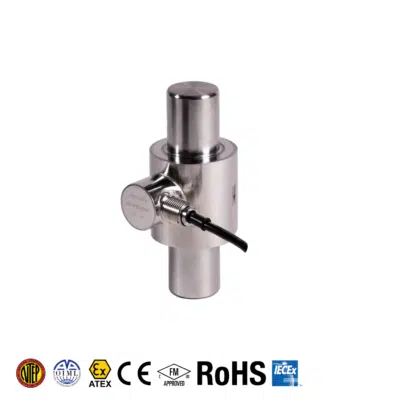

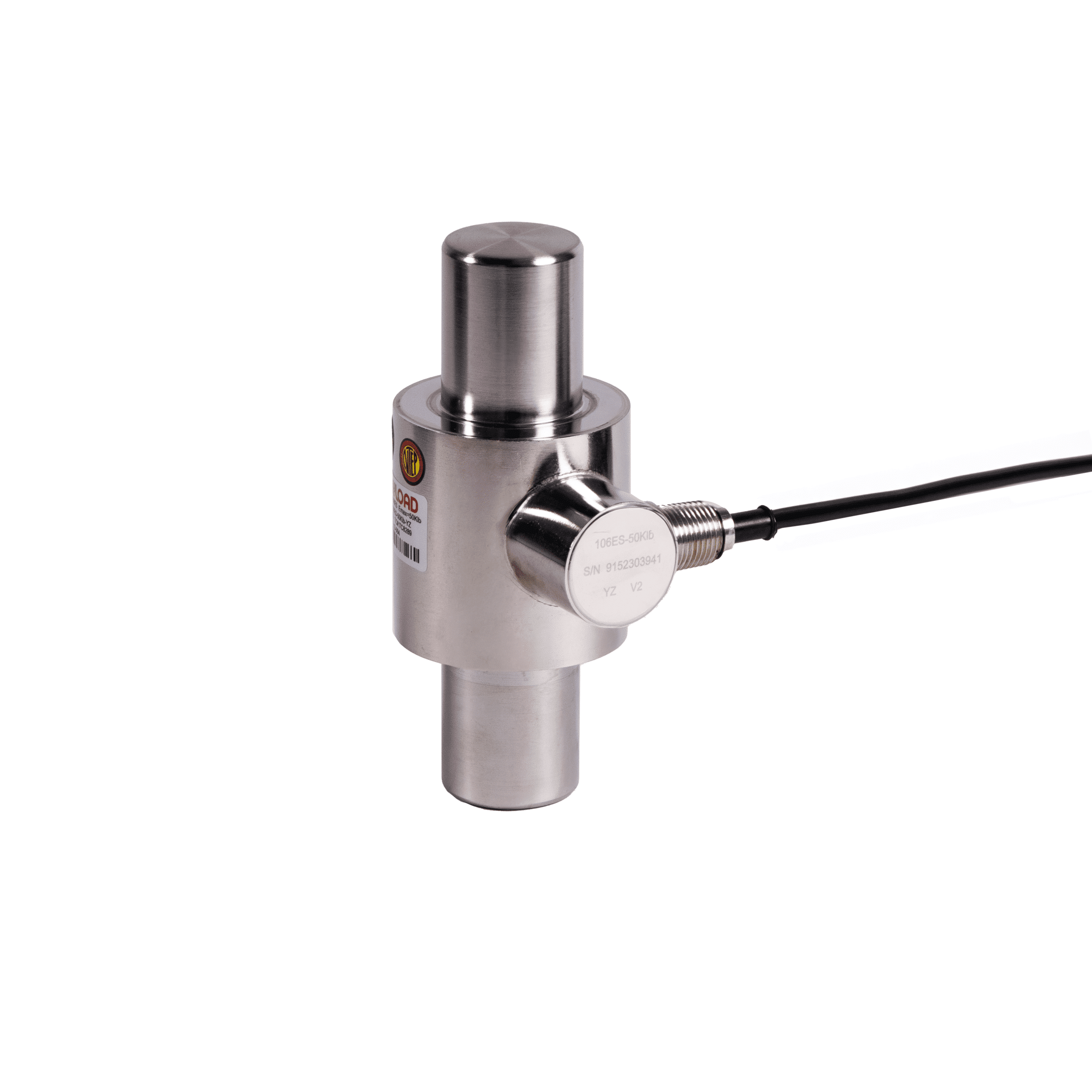

ANYLOAD 106ES Stainless Steel Canister Load Cell
The ANYLOAD 106ES Canister Load Cell is made with 2Cr12 stainless steel and is available in 50Klb and 100Klb rated capacities. It offers IP68 ingress protection for weighing in harsh environments. Available for purchase with or without mounting cup, or mounting hardware alone with no load cell.
Other capacities and configurations available – please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $73.00 |
10-24 | 10 - 24 | 5% $69.35 |
25-49 | 25 - 49 | 8% $67.16 |
50-99 | 50 - 99 | 11% $64.97 |
100+ | 100 + | 15% $62.05 |
SKU: 106ES
Category: Compression or Canister
ANYLOAD 106ES Key Features
- 2Cr13 Stainless steel
- Rated Capacities: 50Klb, 100Klb
- Full Scale Output: 2mV/V ± 1%
- Safe Overload – 150%
- Breaking Overload – 300%
- OIML MAA C3, Y=16 000 certified from 10t-50t
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
- IP Rating: IP68
- CE and RoHS certified
Available options: 106ES-50Klb, 106ES-50Klb-Mounting-Cups, 106ES-100Klb, 106ES-100Klb-Mounting-Cups, 106ES-50-100Klb-Mounting-Hardware
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 106ES Load Cell Specifications
Rated Capacity | 50Klb, 100Klb |
Full Scale Output | 2mV/V ± 1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.030% |
Repeatability | < ± 0.023% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 1100Ω ± 50Ω |
Output Resistance | 1000Ω ± 10Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 106ES Load Cell Datasheet | |
|
OIML Certificate of Conformity – 106 series NTEP Certificate of Conformity – 106 series CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106ES Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Cardinal | SCA |
Coti Global | CG-26S |
